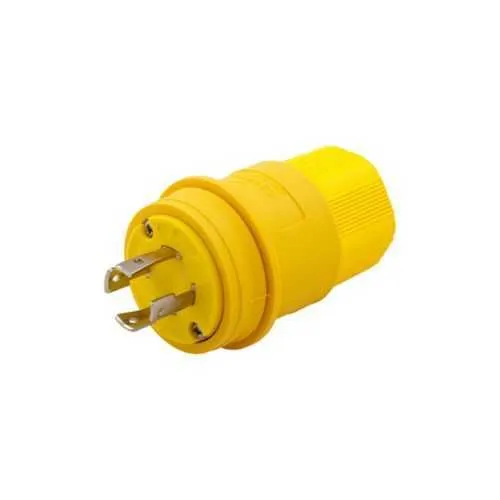

Eaton L1630PW Watertight Locking Plug - IP67 Rated
Part Number: L1630PW
Quick Summary
The Eaton L1630PW watertight locking plug enables reliable, field-ready power connections for industrial equipment. Moisture intrusion, difficult wiring layouts, and seals that fail in outdoor or washdown environments can delay commissioning and drive maintenance costs. This unit delivers IP67 protection, a three-pole L16-30 configuration, and 30 A at 480 V, with RoHS compliance for modern electrical installations. Back-wiring up to #18-10 AWG with a Santoprene seal provides robust moisture resistance and flexible installation in cramped panels. Engineers also value its clear color coding and compatibility with Arrow Hart locking devices, which streamline inventory and service across fleets while improving safety.
Product Information
Extended Description
L1630PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 480V, Back, Yellow, Steel, Watertight, L16-30, Three-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1630PW
UPC
040893642123
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.81 lb
Compliances
RoHS Compliant
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L16-30
Number Of Poles
Three-pole
Number of wires
4
Torque rating
20 lbf-inch
Voltage rating
480 V
Environmental resistance
Watertight
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Steel
Application
Industrial
Cord diameter
0.43-1.15 in
Material
Santoprene
Special features
Watertight locking plug
Feature: IP67 watertight sealing with a Santoprene gasket. Business Impact: Protects against moisture ingress and particulate contamination, reducing field failures and extending service intervals. Application: Ideal for outdoor equipment, washdown facilities, and harsh industrial environments. Feature: L16-30 three-pole, four-wire configuration rated for 30 A at 480 V. Business Impact: Supports high-current loads with reliable performance, reducing the need for adapters and minimizing downtime. Application: Heavy machinery, pumps, and motors in manufacturing lines. Feature: Back wiring capability for #18-10 AWG conductors with a 20 lbf-in torque rating. Business Impact: Facilitates fast, secure installations while resisting loosening under vibration. Application: Panel wiring in control cabinets and retrofit projects. Feature: Santoprene sealing, yellow color, and steel contact material. Business Impact: Delivers durable, weather-resistant performance and visible identification for quick diagnostics. Application: Connectors exposed to vibration, temperature cycling, and exposure to dust or chemicals. Feature: RoHS compliance and compact footprint. Business Impact: Improves regulatory alignment and saves space in crowded control rooms. Application: Fleet-wide deployments and standardized procurement across facilities.
