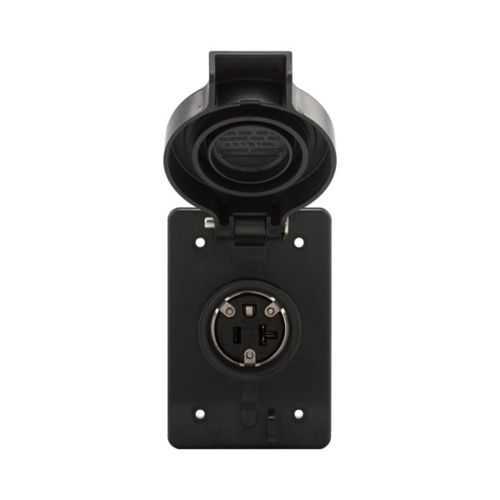

Eaton L1630RW Watertight Locking Receptacle - IP66
Part Number: L1630RW
Quick Summary
The Eaton L1630RW watertight locking receptacle provides reliable threeâphase power for harsh industrial environments. In field installs, moisture, dust, and vibration can compromise connections and trigger costly downtime. RoHS compliant and NOM cULus listed, with IP66 and NEMA protection (3, 4, 4X), this unit meets rigorous safety and environmental standards. Back-wiring ease and a rugged glass-filled nylon body with thermoplastic construction simplify installation, service, and long-term maintenance. Designed for L16-30 configurations in industrial equipment and outdoor installations, it delivers dependable power for controlled equipment and conveyors, reducing maintenance costs and improving uptime.
Product Information
Extended Description
L1630RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 480V, Back wiring, Yellow, Single, Watertight, L16-30, Three-pole, Four-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L1630RW
UPC
040893687803
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
30A
NEMA configuration
L16-30
Number Of Poles
Three-pole
Number of wires
Grounding 4
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3Ă 480 V
Environmental resistance
NEMA 3 IP66 NEMA 4X NEMA 12 NEMA 4 NEMA 3R
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Watertight locking design provides secure connections in washdown and dusty environments, reducing the risk of unplugging during operation and improving uptime with vibration resistance. The 30A, 480V three-pole, four-wire L16-30 configuration supports standard industrial loads, enabling efficient power distribution for motors and drives while meeting code requirements for large equipment. Back wiring with allowable #14-8 AWG conductors streamlines field termination, lowering installation time and indirect labor costs while enabling fast, repeatable terminations in cramped panels. The yellow thermoplastic housing with a glass-filled nylon body delivers chemical resistance and enduring durability under harsh conditions, contributing to lower replacement costs and safer worker interfaces. Nickel-plated bronze contacts provide reliable conductivity and corrosion resistance, supporting minimal voltage drop and consistent performance in demanding environments. Compliance features RoHS and NOM cULus listings reinforce regulatory alignment and traceability, reducing risk in regulated markets. The compact footprint (6.75 in L Ă 4.0 in W Ă 4.25 in H) and weight of 1.025 lb support flexible mounting options in control centers and rugged enclosures, while the locking design reduces accidental disconnections in conveyor and packaging lines. Overall, this receptacle offers a resilient, maintenance-friendly solution that meets the needs of industrial installers seeking durability, safety, and operational efficiency.
