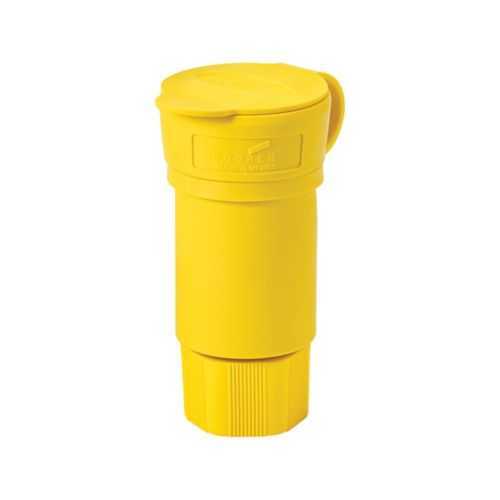

Eaton L1730CW Watertight Locking Connector - IP67
Part Number: L1730CW
Quick Summary
Eaton Arrow Hart watertight locking connector delivers rugged, reliable power connections for industrial equipment. In harsh facilities, moisture, dust and vibration threaten uptime; this connector mitigates those risks with a robust locking mechanism and back-wiring capability. Key certifications and protections—IP67 waterproof rating, RoHS compliance, and cULus listing—support safe operation in demanding environments. Designed for L17-30 installations, it handles 3Ø, 600 V systems with up to 30 A, while the yellow nylon housing enhances visibility in cluttered electrical zones. For engineers and maintenance teams, this solution combines durability with installation efficiency and regulatory alignment, delivering long-term value in industrial power distribution and machine hardening projects.
Product Information
Extended Description
L1730CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 600V, Back wiring, Yellow, Steel, Watertight, L17-30, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1730CW
UPC
040893642154
Product Length/Depth
6.75 in
Product Height
3.75 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L17-30
Number Of Poles
Three-pole
Number of wires
Grounding 4
Torque rating
20 lbf-inch
Voltage rating
3Ø 600 V
Environmental resistance
NEMA 6P NEMA 4X NEMA 6 IP67 NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature → Business Impact → Application: The watertight locking design creates a secure, vibration-resistant connection that reduces field disconnections and downtime, translating to higher machine availability in manufacturing lines and outdoor installations. This is paired with IP67 protection and NEMA L17-30 compatibility, ensuring reliable operation in washdown and harsh environments, while back-wiring simplifies cord replacement and service procedures for industrial controls. Feature → Business Impact → Application: The connector supports #18-10 AWG conductors with a 20 lbf-inch torque rating, enabling safe, repeatable terminations in high-demand electrical feeds and minimizing rework during maintenance windows. Feature → Business Impact → Application: Nickel-plated brass contacts and a Santoprene elastomer seal deliver low contact resistance and superior sealing against moisture ingress, reducing failure rates and extending service life in equipment bays, cranes, conveyors, and outdoor enclosures. Feature → Business Impact → Application: The nylon face/body construction provides rugged, chemical-resistant housing that withstands oily shop floors and hosed-down environments, enabling longer service intervals and lower replacement costs in industrial plants. Feature → Business Impact → Application: Compliance with RoHS and cULus adds regulatory assurance, helping procurement teams meet corporate sustainability and safety standards while maintaining compatibility with global electrical codes in mixed vendor environments.
Get a Quick Quote for a Eaton L1730CW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1730CW?
Enquire Now
FAQs
The L1730CW supports back wiring with #18-10 AWG conductors and a torque rating of 20 lbf-in, enabling reliable terminations in industrial feeder cables. Its three-pole, four-wire configuration (grounding 4) aligns with L17-30 plugs and receptacles, simplifying field upgrades and retrofit projects while ensuring consistent mechanical grip during mating and disconnection cycles.
Rated for 30A and 600V, the L1730CW carries an IP67 rating for water and dust ingress resistance and conforms to NEMA L17-30 configurations. This makes it suitable for harsh environments, including washdown areas and outdoor use, where vibration and contaminants are common, ensuring continuous performance and regulatory alignment.
Yes. The IP67-rated, watertight locking design, combined with a nylon body and Santoprene seal, provides robust ingress protection and vibration resistance. The rugged construction supports outdoor equipment, conveyors, and industrial machinery in environments with exposure to moisture, dust, and cleaning processes, reducing maintenance frequency and replacement costs.
The connector is RoHS compliant and cULus Listed NOM, offering regulatory confidence for North American applications. While CE is not indicated in the data, these certifications support compliance for industrial facilities seeking RoHS and recognized safety listings for electrical components.
The locking mechanism, back-wiring capability, and durable materials (nickel-plated brass contacts, Santoprene elastomer, and nylon housing) deliver dependable performance with reduced downtime. Expect lower maintenance costs due to fewer field failures, easier terminations during service, and longer service life in tough industrial settings, supporting a favorable total cost of ownership.
