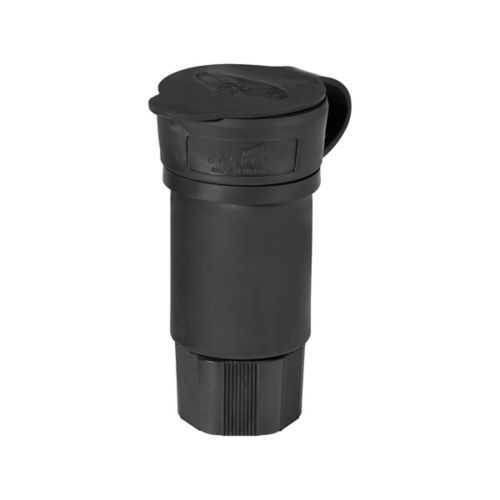

Eaton L1730CWBK Watertight Locking Connector - IP67
Part Number: L1730CWBK
Quick Summary
The Eaton Arrow Hart watertight locking connector is designed to deliver secure, moisture-resistant power connections for industrial equipment in harsh environments. In the field, moisture ingress, vibration, and downtime threaten uptime and reliability; this connector's locking mechanism and rugged build mitigate those risks with a robust three-pole design. With IP67 protection, cULus listing, and RoHS compliance, it meets critical industry requirements for safety and environmental resilience. Its 30A, 600V rating and L17-30 configuration support demanding motor and controller loads, while back-wiring simplifies field terminations and reduces installation time for maintenance crews.
Product Information
Extended Description
L1730CWBK Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 600V, Back wiring, Black, Steel, Watertight, L17-30, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L1730CWBK
UPC
032664709098
Product Length/Depth
6.75 in
Product Height
3.75 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L17-30
Number Of Poles
Three-pole
Number of wires
4 Grounding
Torque rating
20 lbf-inch
Voltage rating
3Ø 600 V
Environmental resistance
NEMA 4X NEMA 4 NEMA 6 NEMA 6P IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature → Business Impact → Application: Watertight locking design with IP67 protection reduces moisture ingress and corrosion, extending equipment life and lowering maintenance costs in outdoor and washdown environments; ideal for pumps, conveyors, and outdoor control panels. Feature → Business Impact → Application: Three-pole, four-wire configuration at 30A and 600V supports heavy-duty motor loads (3Ø), delivering reliable power with minimized risk of loose connections in vibration-prone settings. Feature → Business Impact → Application: back wiring method and 0.43-1.15 in cord diameter compatibility streamline field terminations, cutting installation time and labor costs in panel builds and retrofit projects. Feature → Business Impact → Application: Nylon body with nickel-plated brass contacts delivers durable, corrosion-resistant performance, improving uptime in chemical/industrial environments and reducing replacement cycles. Feature → Business Impact → Application: RoHS-compliant and cULus-listed construction simplifies procurement and regulatory compliance, enabling smoother project approvals and supplier qualification in aerospace, food processing, and water treatment sectors. Feature → Business Impact → Application: Santoprene elastomeric seal and face/body materials balance flexibility and resilience, providing reliable seals against dust and water while maintaining electrical integrity during temperature shifts and washdowns.
Get a Quick Quote for a Eaton L1730CWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1730CWBK?
Enquire Now
FAQs
The L1730CWBK supports back wiring and accepts #18-10 AWG conductors, allowing quick terminations inside control panels. For best results, prepare clean terminations, torque to 20 lbf-in, and verify wire insulation clearance to maintain the IP67 seal. This reduces field re-termination and improves reliability in vibrating environments.
Key specs include a 30A amperage rating, 600V voltage rating, 3Ø L17-30 NEMA configuration, and a four-wire arrangement with grounding. The connector is designed for industrial loads up to 30A, ensuring secure power delivery to motors and controllers while maintaining a robust ingress protection profile.
Yes. With IP67 enclosure protection and NEMA 4X/4/6/parity ratings, the L1730CWBK is intended for washdown, outdoor, and harsh environments. The Santoprene seal, nylon body, and nickel-plated brass contacts provide reliable sealing and corrosion resistance in moisture-prone facilities like food processing, water treatment, and outdoor equipment.
The connector is RoHS compliant and cULus Listed, supporting regulatory compliance and safe electrical installation. Its IP67 rating provides environmental protection, and the NEMA L17-30 configuration suits industrial three-phase power applications while meeting safety standards for heavy-duty equipment.
The locking design, rugged materials, and IP67 protection reduce maintenance intervals and downtime, extending component life in demanding environments. With ease of back wiring, faster field terminations, and strong regulatory compliance, operators experience lower total cost of ownership and improved uptime for motors and industrial controls.
