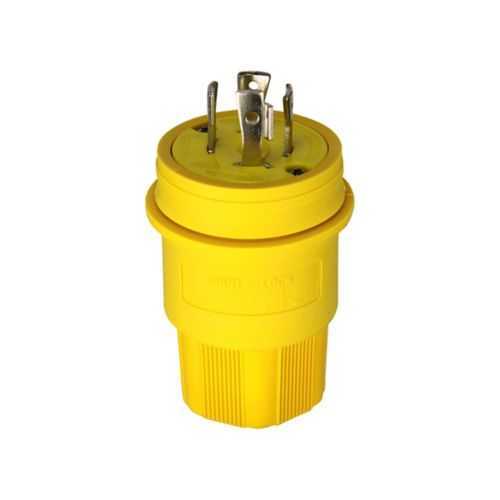

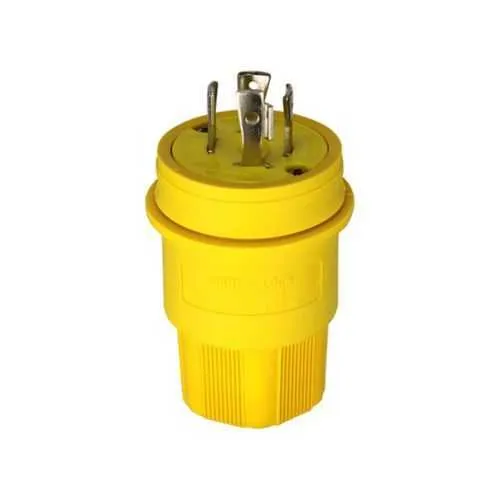

Eaton L1730PW Watertight locking plug - IP67
Part Number: L1730PW
Quick Summary
Eaton Arrow Hart watertight locking plug delivers secure, watertight connections for industrial equipment. In harsh environments, moisture and dust ingress can lead toDowntime and costly repairs if not addressed with a proper enclosure and locking connector. Certified RoHS compliant and cULus listed, it also meets IP67 and NEMA ratings (4/4X/6/6P) for outdoor and washdown reliability. Designed for 30A, 600V circuits, it supports #18-10 AWG back-wired conductors, delivering a robust, field-terminable solution that reduces maintenance intervals and improves uptime for critical industrial processes.
Product Information
Extended Description
L1730PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 600V, Back wiring, Yellow, Steel, Watertight, L17-30, Three-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1730PW
UPC
040893642147
Product Length/Depth
6.72 in
Product Height
3.87 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L17-30
Number Of Poles
Three-pole
Number of wires
4 Grounding
Torque rating
20 lbf-inch
Voltage rating
3Ø 600 V
Environmental resistance
NEMA 4 NEMA 4X NEMA 6 IP67 NEMA 6P
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature: Watertight locking design with IP67 protection. Business Impact: Keeps moisture and particulate out of critical connections, reducing corrosion, downtime, and maintenance costs in washdown and outdoor installations. Application: Ideal for motors, conveyors, and outdoor electrical enclosures in harsh environments. Feature: L17-30 three-pole, four-wire configuration. Business Impact: Enables compliant 3-phase power delivery with a reliable locking mechanism, minimizing mis-wiring risk and ensuring proper phasing in industrial equipment. Application: 3Ø motor starters and power distribution tasks in manufacturing plants. Feature: Back wiring method. Business Impact: Facilitates faster field terminations and cleaner panel layouts, improving installation efficiency and reducing labor costs. Application: Control panels and junction boxes where space is constrained. Feature: Material and seal system (Nylon body, Santoprene seal, nickel-plated brass contacts). Business Impact: Delivers chemical resistance, durability, and low contact resistance for long service life. Application: Environments with chemical exposure or high vibration. Feature: Environmental and compliance profile (NEMA 4/4X/6/6P, RoHS, cULus). Business Impact: Ensures regulatory compliance and performance in challenging settings, mitigating risk in regulated industries. Application: Food processing, outdoor equipment, and marine-adjacent installations. Feature: Conductor range and torque specification (Allowable wire size #18-10 AWG, torque 20 lbf-in). Business Impact: Facilitates secure terminations and repeatable installation quality, improving connector integrity during maintenance cycles. Application: Field servicing of 30A, 600V circuits in industrial facilities.
