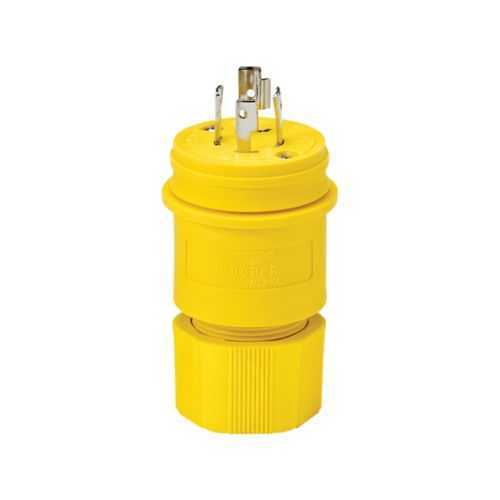

Eaton L1820PWBK watertight locking plug - IP67
Part Number: L1820PWBK
Quick Summary
Eaton L1820PWBK watertight locking plug provides rugged, back-wired power connections for industrial equipment operating at 120/208V. Engineers often battle moisture ingress, field wiring errors, and downtime in harsh environments, and this plug is designed to mitigate those challenges. It carries RoHS compliance and cULus listing, with IP67 protection that guards against dust and water ingress in demanding installations. The design also supports a nylon body with a Santoprene seal for reliable sealing, while back wiring and a compact footprint streamline panel connections. Together with robust materials and certification, it translates into reduced maintenance cycles, faster commissioning, and safer, compliant connections for motors and control circuits.
Product Information
Extended Description
L1820PWBK Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 120/208V, Back wiring, Black, Steel, Watertight, L18-20, Three-pole, Four-wire, Santoprene, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1820PWBK
UPC
032664709135
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L18-20
Number Of Poles
Three-pole
Number of wires
Grounding 4
Torque rating
14-16 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 6P NEMA 6 NEMA 4X IP67 NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Watertight IP67 design with a Santoprene seal provides reliable protection in wet or dusty environments. This combination reduces moisture ingress and equipment downtime, extending service life and improving reliability in the field. Three-pole, four-wire NEMA L18-20 configuration supports 20A at 120/208V. Engineering impacts: this configuration supports three-phase motors and safe grounding, reducing miswiring risk. In practice, it enables plug-and-lock connections that simplify motor control center wiring and commissioning. Back wiring for #18-10 AWG simplifies field terminations. It delivers faster install, tighter terminations, and improved pull-out resistance. Nickel-plated brass contacts deliver low resistance and durable performance under vibration. Torque rating of 14-16 lbf-in ensures reliable seating and consistent torque across installations. Nylon body with black finish and Santoprene material provides chemical resistance and physical durability. RoHS compliant and cULus listed ensure regulatory alignment across global operations. Compatibility with Eaton locking devices and existing L18-20 assemblies simplifies upgrades. Industry insights: using locking plugs reduces unplugging incidents and improves safety in harsh environments.
Get a Quick Quote for a Eaton L1820PWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1820PWBK?
Enquire Now
FAQs
The L1820PWBK accepts #18-10 AWG conductors with back wiring. Strip insulation per manufacturer guidance, insert conductors into the back-wired terminals, and tighten to the specified torque of 14-16 lbf-in. Verify nickel-plated brass contacts are seated and conduct a gentle pull test to confirm secure terminations. This approach reduces field wiring errors and speeds up panel assembly while maintaining a robust, moisture-protected connection.
Yes. The L1820PWBK is a three-pole, four-wire locking plug configured for L18-20 and rated at 20A with a voltage of 120/208V. Its IP67 protection and rugged construction support reliable operation in demanding industrial environments, making it suitable for motors, pumps, and control circuits that require a secure, three-phase connection.
Absolutely. With IP67 ingress protection and a Santoprene seal, the L1820PWBK is designed for wet, dusty, or wash-down environments. The nylon body provides additional durability, while the locking mechanism minimizes accidental disconnections during operation, supporting continuous production and safer equipment interfaces.
This locking plug is RoHS compliant and cULus Listed, signaling regulatory compliance for modern electrical installations. Its IP67 rating further confirms suitability for harsh environments, ensuring reliable performance in industrial facilities that demand both safety and environmental protection.
Expect reduced maintenance intervals and fewer field wiring mistakes due to back-wiring and a robust locking mechanism. The IP67 protection minimizes moisture-related faults, and nickel-plated brass contacts maintain low resistance over time, contributing to longer service life, fewer unscheduled downtime events, and a lower total cost of ownership for equipment relying on secure, durable connections.
