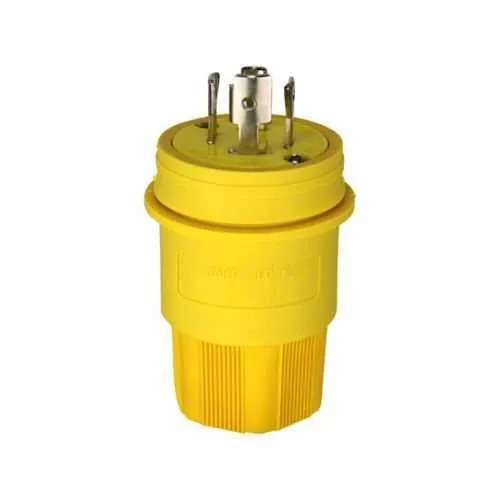

Eaton L1830PW Watertight Locking Plug - IP67
Part Number: L1830PW
Quick Summary
Eaton L1830PW watertight locking plug provides secure 30A power connections for industrial equipment in harsh environments. When moisture, dust, or washdown exposure threatens panel integrity, improper sealing and back-wire termination can cause unexpected downtime. This device carries RoHS compliance and cULus listing, plus IP67 sealing and a NEMA L18-30 configuration to support reliable outdoor and wet-location service. Engineered for industrial use, it supports back-wiring, accepts cord diameters from 0.43 to 1.15 inches, and features a yellow nylon body with nickel-plated brass contacts, delivering safe, durable power connections that reduce maintenance and maximize uptime.
Product Information
Extended Description
L1830PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 120/208V, Back wiring, Yellow, Steel, Watertight, L18-30, Three-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1830PW
UPC
040893642260
Product Length/Depth
6.77 in
Product Height
3.84 in
Product Width
4.39 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L18-30
Number Of Poles
Three-pole
Number of wires
Grounding 4
Torque rating
20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 6 NEMA 4X NEMA 4 IP67 NEMA 6P
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Watertight construction with IP67 protection minimizes moisture ingress, reduces corrosion risk, and lowers maintenance costs in washdown or outdoor environments. This design translates to fewer unplanned outages and longer service life for motors, pumps, and industrial equipment in harsh facilities. The L18-30 three-pole, four-wire configuration supports 120/208V three-phase systems, enabling standardized wiring for common industrial motors and drives while reducing installation errors and training time. Back wiring for #18-10 AWG conductors simplifies field terminations, accelerates panel builds, and improves terminations reliability in tight spaces. A 0.43-1.15 inch cord range paired with a 20 lbf-inch torque rating ensures secure retention and consistent electrical contact, even with vibration. Nickel-plated brass contacts offer low contact resistance and superior corrosion resistance, while a yellow nylon body and Santoprene seal provide durable, high-visibility protection in dirty or chemical environments. All placed within a robust, industrial-grade design that aligns with RoHS and cULus requirements, this plug supports compliance-driven projects and maintenance planning in automation environments.
Get a Quick Quote for a Eaton L1830PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1830PW?
Enquire Now
FAQs
The L1830PW supports back wiring for #18-10 AWG conductors, enabling clean terminations inside control panels. It requires a torque of 20 lbf-in to ensure a secure clamp and reliable electrical contact, reducing the chance of loose connections during operation.
Yes. Its IP67 rating combined with NEMA 6/4X compatibility makes it ideal for outdoor equipment, pumps, and machinery exposed to moisture, dust, and washdowns. The yellow nylon body and Santoprene seal add visible, durable protection in harsh settings.
Yes. It uses a 3-pole, four-wire L18-30 configuration with a 30A current rating, designed for 120/208V three-phase service. This standardization helps reduce wiring errors and simplifies panel design for motor drives and equipment.
Contacts are nickel-plated brass for low resistance and corrosion resistance; the body is nylon for durability, with a Santoprene seal for effective waterproofing. This combination meets RoHS and cULus expectations while delivering long service life in industrial environments.
Investing in the L1830PW reduces maintenance and downtime through reliable watertight sealing, standardized 120/208V three-phase connections, and straightforward back-wiring. The durable construction lowers replacement costs and supports compliant, safe, and efficient installations across industrial applications.
