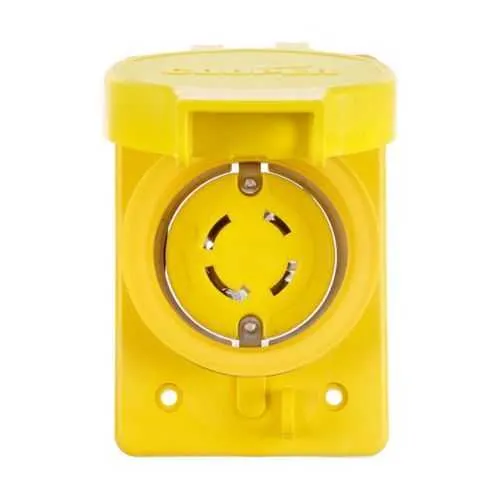

Eaton L1830RWBK watertight locking receptacle - IP66
Part Number: L1830RWBK
Quick Summary
Eaton L1830RWBK watertight locking receptacle is a rugged 30A locking outlet designed for industrial use in harsh environments. It addresses the common challenge of unplugging under load or in wet, dusty facilities by combining a secure locking mechanism with a proven watertight seal. Certifications matter here: IP66 protection paired with NEMA 4 and 4X ratings, plus NOM cULus Listed, provide confidence for both outdoor and wash-down applications. The back-wiring option and thermoplastic, glass-filled nylon construction simplify installation while improving longevity. This combination delivers safer power distribution, reduced downtime, and lower long-term maintenance costs for demanding equipment across manufacturing floors, outdoor rigs, and process lines.
Product Information
Extended Description
L1830RWBK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 120/208V, Back wiring, Black, Single, Watertight, L18-30, Three-pole, Four-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L1830RWBK
UPC
032664709173
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Certifications
NOM cULus Listed
Amperage Rating
30A
NEMA configuration
L18-30
Number Of Poles
Three-pole
Number of wires
4 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
IP66 NEMA 4 NEMA 4X NEMA 3R NEMA 12 NEMA 3
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Watertight construction with IP66 and NEMA 4/4X ratings protects connections from water, dust, and wash-down spray, reducing corrosion and unplanned outages in outdoor and chemical environments. Business impact: extended service life and fewer field repairs. Application: motors, pumps, and outdoor equipment wherever reliable power is essential. Locking receptacle design prevents accidental disconnections, increasing uptime and operator safety. Business impact: fewer restart delays and safer handling in demanding plants. Application: conveyor lines, CNC tooling, and robotic stations with heavy vibration. Electrical ratings of 30A, 120/208V, and L18-30 three-pole four-wire configuration support standard industrial power distribution while back wiring speeds terminations and minimizes field labor. Torque guidance (14–16 lbf-in for #10–14 AWG; 20 lbf-in for #8 AWG) ensures secure terminations and consistent performance. Application: panel terminations and service entrances where precise torque is required. Thermoplastic housing with glass-filled nylon face and nickel-plated bronze contacts delivers durability and resistance to chemicals and impact, reducing replacement cycles and maintenance costs. Compatibility with #14–8 AWG wires and back-wire wiring method offers flexible installation options and streamlined retrofits. Citations: NOM cULus Listed and IP66/NEMA protections support compliance for industrial facilities and regulated environments. The overall design supports faster installation, easier maintenance, and reduced operational risk in high-demand production lines.
Get a Quick Quote for a Eaton L1830RWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1830RWBK?
Enquire Now
FAQs
This receptacle uses a back-wiring method compatible with #14–8 AWG conductors. Torque ratings are 14–16 lbf-in for #10–14 AWG and 20 lbf-in for #8 AWG, ensuring secure terminations and predictable performance in rugged environments.
It features a three-pole, four-wire configuration (L18-30) with a voltage rating of 120/208V and a 30A amperage rating, suitable for three-phase power distribution in industrial settings.
Yes. It is rated IP66 and classed under NEMA 4/4X and 3R/12, providing strong protection against water, dust, and corrosion in outdoor or wash-down environments, while maintaining safe, reliable operation.
The receptacle is NOM cULus Listed and carries IP66/NEMA 4/4X certifications, indicating compliance with global electrical safety and environmental protection standards essential for industrial facilities and regulated sites.
Its locking mechanism, rugged sealing, and durable materials reduce unintended disconnections and field repairs. The back-wiring ease shortens installation time, while IP66/NEMA protections lower maintenance points, delivering higher uptime and lower lifecycle costs in busy manufacturing environments.
