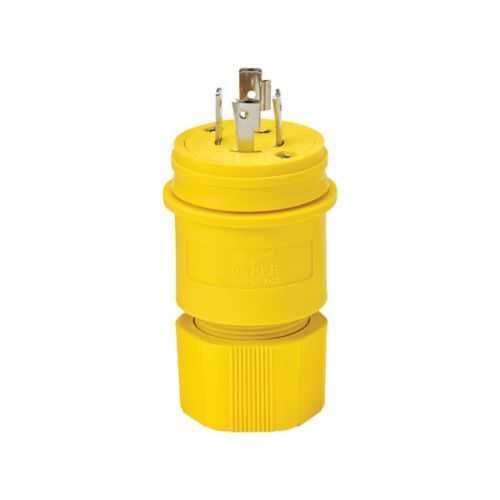

Eaton L1920PWBK Watertight Locking Plug - IP67 Rating
Part Number: L1920PWBK
Quick Summary
The Eaton L1920PWBK watertight locking plug delivers reliable back-wired power connections for industrial enclosures and harsh environments. Engineers often battle moisture ingress, corrosion, and unreliable seals that force costly downtime. With RoHS compliance, cULus listing, and IP67 protection, this plug meets strict safety and longevity requirements for demanding facilities. Designed for industrial use, it supports back-wiring up to #18-10 AWG and 277/480V three-phase systems, delivering durable, safe power connections that improve uptime and reduce maintenance overhead for critical automation installations.
Product Information
Extended Description
L1920PWBK Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 277/480V, Back wiring, Black, Steel, Watertight, L19-20, Four-pole, Four-wire, Santoprene, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1920PWBK
UPC
032664709197
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L19-20
Number Of Poles
Four-pole
Number of wires
Non-grounding 4
Voltage rating
3ØY 277/480 V
Environmental resistance
NEMA 6P NEMA 4X IP67 NEMA 4 NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature: IP67 weatherproof enclosure and rugged exterior. Business Impact: Protects internal contacts from water, dust, and washdown exposure, reducing corrosion-related failures and extending service life. Application: Outdoor relays, conveyor washdown zones, and outdoor panel boards where washdown and humidity are common. The result is fewer field repairs and lower total cost of ownership. Feature: Back wiring capability for #18-10 AWG conductors. Business Impact: Speeds terminations and minimizes field labor, improving installation efficiency and reducing error rates. Application: Panel-mounted distribution and control circuits where quick, secure terminations are essential. Feature: Four-pole, four-wire L19-20 configuration for 277/480V systems. Business Impact: Enables robust three-phase power distribution with structured electrical interfaces, enhancing system reliability. Application: Industrial motors, pumps, and automated equipment with high-performance power needs. Feature: Nickel-plated brass contacts and Santoprene sealing. Business Impact: Delivers high conductivity, corrosion resistance, and a watertight seal, extending connector life in harsh environments. Application: Chemical plants, mining, and offshore automation where contact reliability matters. Feature: Nylon body with black finish and locking mechanism. Business Impact: Lightweight yet durable housing with secure retention, improving vibration resistance and reducing maintenance checks. Application: Heavy-duty control panels and installations subject to mechanical stress. Feature: 20A rating and IP67 protection. Business Impact: Aligns with standard industrial loads while maintaining protection against dust and water ingress, supporting regulatory compliance and safe operation. Application: General industrial equipment requiring reliable power interconnections in challenging environments.
