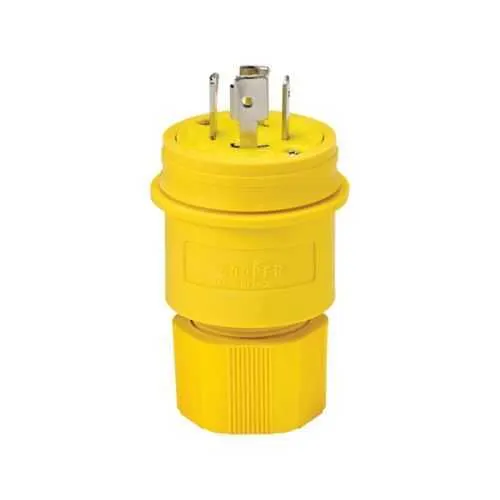

Eaton L1930PW Watertight locking plug - 277/480V IP67
Part Number: L1930PW
Quick Summary
The Eaton L1930PW watertight locking plug provides reliable, field-ready power connections for industrial equipment in harsh environments. When downtime or moisture compromises connections, operators face safety risks and costly repairs. It carries RoHS compliance and cULus listing, with IP67 protection and NEMA L19-30 compatibility for outdoor, damp, or dusty locations. Back-wiring with a 30A, four-pole configuration supports 277/480V systems, while a yellow Santoprene seal and nickel-plated brass contacts promote durability. Engineered for industrial use, it pairs with Arrow Hart watertight devices to streamline replacement and inventory control. This plug offers tangible business value by reducing maintenance, enhancing safety, and improving system reliability for OEMs and panel builders.
Product Information
Extended Description
L1930PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 277/480V, Back wiring, Yellow, Steel, Watertight, L19-30, Four-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L1930PW
UPC
040893642277
Product Length/Depth
6.25 in
Product Height
3.84 in
Product Width
4.42 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L19-30
Number Of Poles
Four-pole
Number of wires
Non-grounding 4
Torque rating
20 lbf-inch
Voltage rating
3ØY 277/480 V
Environmental resistance
NEMA 4 NEMA 6P NEMA 4X NEMA 6 IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Watertight locking plug design delivers moisture and dust resistance, reducing corrosion risk and unplanned downtime while increasing overall equipment reliability in outdoor enclosures and rugged facilities. This translates to safer installations and lower maintenance costs in harsh environments. The 30A, four-pole, four-wire configuration supports 277/480V three-phase services, enabling seamless integration with standard industrial power distribution without custom adaptors. Back-wiring simplifies field termination, accelerating installation and service calls while maintaining strong electrical integrity. Nickel-plated brass contacts paired with a Santoprene seal and nylon face/body deliver durable, corrosion-resistant performance across temperature and humidity cycles. RoHS compliance and cULus listing reinforce regulatory alignment for procurement and downstream safety audits. Color coding in yellow enhances visual identification for quick, error-free wiring in busy facilities. Compatibility with Arrow Hart watertight devices helps standardize spares and reduce stocking complexity.
Get a Quick Quote for a Eaton L1930PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L1930PW?
Enquire Now
FAQs
To install the L1930PW, power must be disconnected. Use the back-wiring method with #18-10 AWG conductors, insert into the four poles, and tighten to the recommended torque of 20 lbf-in. Ensure the four-wire, non-grounding configuration is correctly seated for the L19-30 arrangement and verify IP67 sealing after assembly. This approach minimizes field terminations while preserving a robust, watertight connection.
The L1930PW is rated at 30A with a 277/480V three-phase capability. It features four poles and four wires (non-grounding), a torque rating of 20 lbf-in, and an IP67 environmental rating. It is suitable for industrial installations requiring NEMA L19-30 compatibility and back-wiring for straightforward field wiring.
Yes. The L1930PW is configured for 277/480V, four-pole, four-wire service in a NEMA L19-30 arrangement. It delivers a 30A rating, IP67 protection, and back-wiring compatibility, making it well-suited for industrial equipment and panels operating in wet, dusty, or outdoor environments.
Yes. The L1930PW is IP67 rated, providing robust watertight protection in challenging environments. It is RoHS compliant and UL-listed (cULus), aligning with common regulatory and safety standards for industrial electrical components used in harsh or outdoor spaces.
The L1930PW supports #18-10 AWG conductors with a back-wiring method. The recommended torque for securing connections is 20 lbf-in. This combination ensures a reliable, code-compliant connection while maintaining the watertight integrity required for IP67-rated installations.
