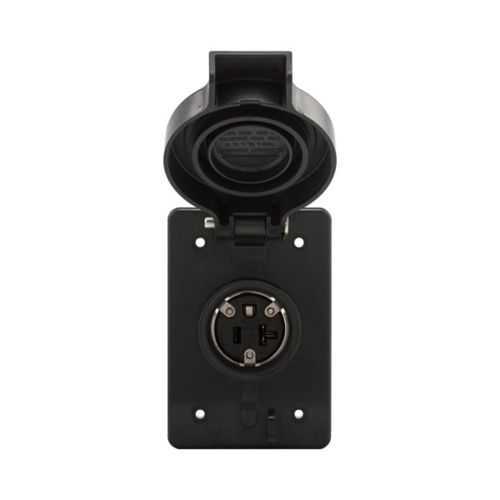

Eaton L2020RWBK Watertight locking receptacle - IP66
Part Number: L2020RWBK
Quick Summary
Eaton L2020RWBK watertight locking receptacle delivers reliable power connections for industrial equipment in harsh environments. Moisture, dust, and vibration spike downtime and safety risks if connectors aren’t sealed and locked. This model carries cULus Listed NOM certifications and rugged IP66/NEMA 4X protection to meet harsh-site requirements. In addition to back wiring for quick field installs, it supports #14–8 AWG conductors and a four-pole, non-grounding layout. These features translate to reduced commissioning time, safer connections, and lower maintenance costs in industrial facilities. Its thermoplastic housing with glass-filled nylon face ensures chemical resistance, impact protection, and a durable seal. Additionally, the 347/600V rating supports heavy three-phase distribution in industrial plants.
Product Information
Extended Description
L2020RWBK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 347/600V, Back wiring, Black, Single, Watertight, L20-20, Four-pole, Four-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L2020RWBK
UPC
032664709265
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Certifications
cULus Listed NOM
Amperage Rating
20A
NEMA configuration
L20-20
Number Of Poles
Four-pole
Number of wires
4 Non-grounding
Receptacle type
Locking
Voltage rating
3ØY 347/600 V
Environmental resistance
NEMA 4 NEMA 3R NEMA 3 NEMA 12 NEMA 4X IP66
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: Watertight design with IP66 and NEMA 4X protection provides outstanding ingress protection, reducing moisture-related faults. Business Impact: Extended equipment life and decreased unplanned downtime in outdoor or washdown environments. Application: Outdoor motors, packaging lines, and process equipment operating in wet or dusty conditions. Feature: Four-pole, four-wire configuration rated at 20A and 347/600V supports robust three-phase power delivery. Business Impact: Higher load capacity with reliable power distribution, enabling safer, more efficient starts and stops. Application: Industrial machinery and heavy-duty conveyors. Feature: Locking receptacle design prevents accidental disconnections under vibration or motor start-up surges. Business Impact: Enhanced process stability and reduced maintenance visits. Application: Robotic cells, material handling, and CNC equipment. Feature: Back wiring method and #14–8 AWG compatibility enable fast, economical field terminations. Business Impact: Shorter installation times and lower labor costs. Application: Panel feeders and field-installed receptacles. Feature: Durable construction using thermoplastic with glass-filled nylon and nickel-plated bronze contacts resists environmental stress. Business Impact: Long service life and corrosion resistance in harsh industrial settings. Application: Industrial controls, washdown areas, and hazardous zones. Feature: Certifications including cULus Listed and NOM coupled with IP66/NEMA 4X protection ensure regulatory compliance. Business Impact: Simplified procurement and audit readiness, reducing project risk. Application: Regulated facilities and commercial-industrial integrations.
Get a Quick Quote for a Eaton L2020RWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2020RWBK?
Enquire Now
FAQs
L2020RWBK supports 347/600V three-phase systems and back wiring for #14–8 AWG conductors. To install, prepare the panel or enclosure, strip conductors to the correct length, insert into the back-wiring terminals, secure with proper torque, and verify the locking mechanism engages. This approach minimizes field wiring errors and accelerates commissioning in industrial cabinets.
Key specs include 20A amperage, NEMA configuration L20-20, four poles with four wires (non-grounding), and a 3ØY 347/600 V rating. The device is designed for industrial environments, with back wiring support for #14–8 AWG wires and a locking receptacle type to prevent accidental disconnection during operation.
Yes. The receptacle carries IP66 and NEMA 4X environmental ratings, along with NEMA 4, 3R, 3, and 12 protections, making it suitable for outdoor installations and washdown areas. Its watertight design, durable thermoplastic housing, and corrosion-resistant contacts ensure reliable performance in harsh industrial settings.
The L2020RWBK is cULus Listed and NOM certified, reflecting compliance with North American electrical safety standards. The IP66 and NEMA 4X ratings further reinforce suitability for demanding environments, helping facilities meet regulatory and safety requirements during audits and inspections.
Upgrading to a watertight locking receptacle like L2020RWBK reduces downtime from ingress-related faults and disconnections, lowers maintenance costs due to robust sealing and durable materials, and accelerates installation with back wiring. In practice, facilities see improved process uptime, safer connections, and simpler compliance reporting for industrial power connections.
