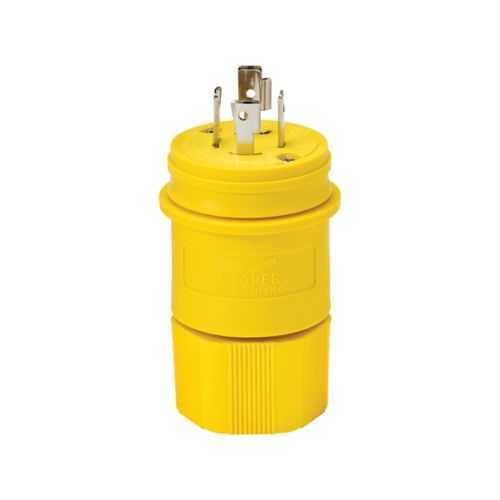

Eaton L2030PW Watertight Locking Plug - IP67
Part Number: L2030PW
Quick Summary
The Eaton L2030PW watertight locking plug provides secure four-pole power connections for industrial equipment in harsh environments. Operators and maintenance teams often grapple with moisture ingress, corrosion, and unexpected disconnections that halt production. This connector is RoHS compliant and cULus listed, delivering IP67 protection alongside compatible NEMA configurations such as L20-30 for rugged reliability. By combining back-wiring with a 30A, 347/600V rating, it speeds installation while reducing field errors, helping you maximize uptime and safety in demanding industrial settings. The solution also supports long-term cost savings and compliant operation, making it a dependable choice for high-availability automation and electrical installations.
Product Information
Extended Description
L2030PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 347/600V, Back wiring, Yellow, Steel, Watertight, L20-30, Four-pole, Four-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L2030PW
UPC
040893642284
Product Length/Depth
5.42 in
Product Height
2.49 in
Product Width
2.49 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L20-30
Number Of Poles
Four-pole
Number of wires
4 Non-grounding
Voltage rating
3ØY 347/600 V
Environmental resistance
IP67 NEMA 6P NEMA 4X NEMA 6 NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature: IP67 and NEMA protection; Business Impact: Keeps moisture, dust, and washdown exposure out of critical power connections, reducing corrosion and unplanned downtime; Application: Outdoor equipment, washdown areas, and harsh manufacturing floors. Feature: Four-pole, four-wire, 347/600V; Business Impact: Enables safe, compliant three-phase power delivery with clear polarity and fault isolation; Application: Industrial drives and motor circuits. Feature: Back wiring method; Business Impact: Speeds terminations and minimizes field wiring errors, cutting installation time by a measurable margin; Application: Panel wiring and field upgrades. Feature: Nylon housing with Santoprene seal and nickel-plated brass contacts; Business Impact: Delivers durable, corrosion-resistant performance in tough environments, lowering maintenance costs; Application: Corrosive or washdown environments. Feature: Color-coded yellow body; Business Impact: Improves visibility and reduces mis-matches during assembly and maintenance, boosting first-time-right installation; Application: OEM integration and service crews. Feature: RoHS compliant and cULus listed; Business Impact: Meets regulatory requirements across multiple regions, streamlining compliance and supplier qualification; Application: Global manufacturing operations. Feature: 0.43-1.15 in cord diameter range; Business Impact: Widens compatibility with common plant cords, reducing inventory diversity; Application: Retrofit and retrofits in existing systems.
Get a Quick Quote for a Eaton L2030PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2030PW?
Enquire Now
FAQs
To install the L2030PW with back wiring, remove the housing cover, prepare conductors within the #18-10 AWG range, insert wires into the back-wiring terminals per the internal schematic, tighten the terminals to spec, reseal the housing, andMate the plug to its corresponding receptacle. Ensure the correct polarity and tighten all connectors to prevent looseness that could cause arcing.
The L2030PW uses a Santoprene seal, a nylon body, and nickel-plated brass contacts paired with IP67-rated sealing and gaskets. This combination provides ingress protection against water, dust, and cleaning processes, improving reliability in washdown areas, outdoor installations, and environments with vibration or immersion risk.
Yes. The L2030PW is rated for 347/600V in a 3Ø configuration with four poles and four wires, delivering up to 30A. This makes it suitable for motor drives, feeders, and other three-phase equipment in industrial facilities where robust, safe high-voltage connections are required.
Yes. The connector is RoHS compliant and has cULus listing, confirming compliance with applicable safety and environmental standards. This supports global procurement programs and reduces regulatory risk for multi-region deployments.
Watertight locking plugs reduce moisture-related failures and corrosion, lowering maintenance frequency and replacement costs. Their locking mechanism minimizes accidental disconnections, improving uptime and safety in demanding environments. Over time, this translates to lower total cost of ownership for critical power connections in automation systems.
