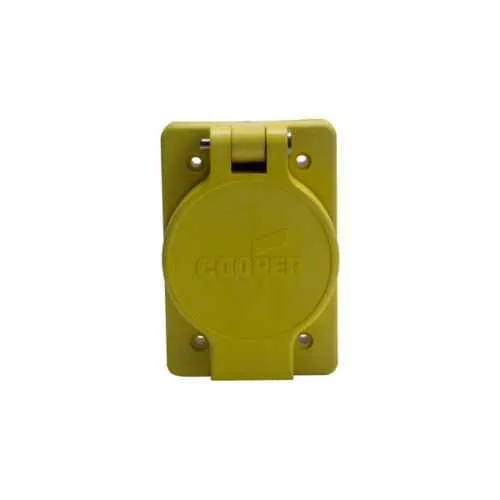

Eaton L2030RW Watertight Locking Receptacle - IP67
Part Number: L2030RW
Quick Summary
The Eaton L2030RW watertight locking receptacle provides robust, secure power connections for harsh industrial equipment applications. In the real world, operators contend with water ingress, corrosion, and costly downtime—this receptacle mitigates those risks with a proven IP67 seal, rugged durability, and back-wiring convenience. It carries RoHS compliance and NOM cULus listing, plus a true NEMA L20-30 configuration for demanding 3Ø power. The glass-filled nylon body and nickel-plated bronze contacts boost wear resistance, while the color-coding and four-pole design streamline field wiring. For panel builders and integrators, it translates to faster installs, reduced maintenance, and improved uptime in rugged environments.
Product Information
Extended Description
L2030RW Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 30A, Industrial, 347/600V, Back wiring, Yellow, Steel, Single, Watertight, L20-30, Four-pole, Four-wire, Thermoplastic, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L2030RW
UPC
040893687896
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L20-30
Number Of Poles
Four-pole
Number of wires
4 Non-grounding
Receptacle type
Locking
Voltage rating
3ØY 347/600 V
Environmental resistance
NEMA 12 IP66 NEMA 4 NEMA 3 NEMA 4X NEMA 3R
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: Watertight IP67 protection coupled with NEMA 12, 4X and 4 ratings. Business Impact: Protects connected equipment from water and dust intrusion, reducing unscheduled downtime and extending component life. Application: Outdoor installations and washdown-area machinery where reliability is critical. Feature: Four-pole, four-wire, 347/600V three-phase compatibility. Business Impact: Supports standard industrial motors and heavy-duty equipment, enabling compliant power distribution with a single receptacle. Application: Industrial automation skids and motor-control centers. Feature: Locking receptacle design. Business Impact: Prevents accidental disconnections during vibrations or equipment motion, lowering maintenance visits and downtime. Application: High-vibration conveyors and portable power carts. Feature: Back wiring method with #14-8 AWG allowable conductors. Business Impact: Simplifies installation, reduces termination time, and improves field reliability with robust, nickel-plated bronze contacts. Application: Equipment panels and disconnect enclosures. Feature: Durable materials—thermoplastic, glass-filled nylon body. Business Impact: High impact resistance and chemical tolerance in harsh environments, lowering replacement costs. Application: Industrial enclosures and exposed wiring locations. Feature: RoHS compliant and NOM cULus listed. Business Impact: Ensures regulatory compliance and easier procurement for projects requiring electrical safety certifications. Application: Nationwide industrial projects and OEM integrations.
Get a Quick Quote for a Eaton L2030RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2030RW?
Enquire Now
FAQs
The L2030RW uses a back wiring method and accepts #14-8 AWG conductors, enabling straightforward field terminations for four-pole, four-wire (non-grounding) configurations. This wiring approach combines with nickel-plated bronze contacts to ensure reliable, low-impedance connections in demanding environments.
Yes. With IP67 protection and environmental ratings that include NEMA 12, NEMA 4, NEMA 3, NEMA 4X, and NEMA 3R, the receptacle offers watertight performance and robust resistance to dust, corrosive elements, and moisture in outdoor or washdown settings.
The L2030RW is RoHS compliant and NOM cULus Listed. These certifications support regulatory compliance in many regions and simplify procurement for projects with strict electrical safety requirements.
The locking receptacle design prevents accidental disconnection during operation or vibration, which is crucial for high-duty industrial equipment and mobile power applications. This reduces downtime, eliminates frequent re-seating, and improves overall system uptime in mining, manufacturing, and processing environments.
Ideal for three-phase machinery and motor-control scenarios requiring a L20-30 configuration, the L2030RW supports 347/600V, 30A, four-pole operation with a watertight seal. Its rugged materials and back-wiring compatibility make it suitable for panel enclosures, portable equipment, and conveyors in challenging environments.
