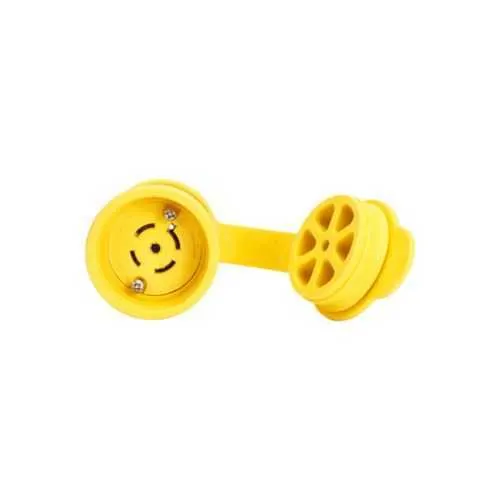

Eaton L2120CW Watertight locking connector - IP67
Part Number: L2120CW
Quick Summary
Eaton L2120CW watertight locking connector securely connects industrial power circuits. Moisture ingress and wiring reliability are common pain points in harsh environments, and this design targets both with a rugged, back-wired approach. It carries RoHS compliance, NOM cULus listing, and IP67 protection to keep contacts sealed in wet or dusty settings. By combining a yellow nylon housing, nickel-plated brass contacts, and a Santoprene elastomeric seal, it delivers dependable performance in enclosures, control panels, and outdoor machinery. For engineers and procurement teams, the result is fewer field callbacks, faster installations, and improved regulatory compliance across sites.
Product Information
Extended Description
L2120CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 120/208V, Back wiring, Yellow, Steel, Watertight, L21-20, Four-pole, Five-wire, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L2120CW
UPC
040893642512
Product Length/Depth
6.78 in
Product Height
3.87 in
Product Width
4.41 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L21-20
Number Of Poles
Four-pole
Number of wires
5 Grounding
Torque rating
14-16 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 4 NEMA 4X NEMA 6P NEMA 6 IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
