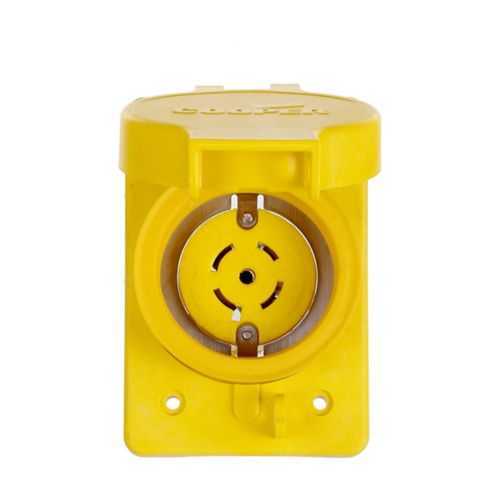

Eaton L2120RW Watertight locking receptacle - IP66/NEMA 4X
Part Number: L2120RW
Quick Summary
The Eaton L2120RW watertight locking receptacle is designed for rugged industrial power connections in wet or dirty environments. Operators struggle with moisture ingress and vibration that can loosen connections and halt line speed. It carries RoHS compliance, NOM cULus listing, and IP66/NEMA 4X protection to safeguard equipment uptime in harsh settings. Back wiring with #14-8 AWG conductors supports fast terminations, while the four-pole L21-20 configuration provides reliable 120/208V service for three-phase loads. With a yellow thermoplastic body and nickel-plated bronze contacts, this locking receptacle delivers durable, corrosion-resistant performance for industrial power devices and long-term cost savings.
Product Information
Extended Description
L2120RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 120/208V, Back wiring, Yellow, Single, Watertight, L21-20, Four-pole, Five-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L2120RW
UPC
040893687902
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
20A
NEMA configuration
L21-20
Number Of Poles
Four-pole
Number of wires
Grounding 5
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
IP66 NEMA 4X NEMA 3 NEMA 12 NEMA 3R NEMA 4
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Watertight locking design delivers a secure, vibration-resistant connection in harsh facilities. The locking mechanism helps prevent accidental disengagement under heavy equipment start-up, improving uptime and safety in washdown or outdoor installations. Back wiring with #14-8 AWG conductors simplifies field terminations and reduces installation time for panels and receptacle outlets. The L2120RW uses a four-pole L21-20 configuration with five conductors including ground, ensuring a robust three-phase supply and reliable grounding for ground fault protection. Rated 20A at 120/208V and built for industrial duty, this receptacle supports common equipment loads without adapters. The device's copper/nickel-plated bronze contacts provide low contact resistance and long life, while the thermoplastic housing resists corrosion in demanding environments. Environmental protection is a standout feature with IP66 and NEMA 4X protection, enabling outdoor use and exposure to dust, washdowns, and chemical splashes. Glass-filled nylon body and thermoplastic construction balance mechanical strength and heat resistance; nickel-plated bronze contacts contribute to durability and corrosion resistance over long service life. Compliance and lifecycle value are reinforced by RoHS compliance and NOM cULus listing, backed by Eaton's industrial-grade design and test data. The combination reduces replacement cycles and support costs while maintaining regulator compliance in certified installations.
Get a Quick Quote for a Eaton L2120RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2120RW?
Enquire Now
FAQs
For installation, use back wiring with #14-8 AWG conductors and secure terminals to meet torque requirements: 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG. The unit is a four-pole L21-20 locking receptacle with five conductors including ground. Ensure the yellow housing is oriented for visibility and verify RoHS compliance and NOM cULus listing during procurement.
The L2120RW is a 20A device rated for 120/208V with a four-pole L21-20 configuration. It uses back wiring for #14-8 AWG conductors and provides a locking receptacle type for secure connections. The grounding scheme supports safe operation in three-phase industrial loads with reliable grounding.
Yes. The receptacle features IP66 and NEMA 4X protections, along with NEMA 3, 12, and 3R compatibility for broader outdoor and washdown use. Its watertight design, yellow thermoplastic housing, and corrosion-resistant contacts make it ideal for outdoor machinery, portable equipment, and harsh production environments.
The L2120RW is RoHS compliant and NOM cULus Listed, reflecting adherence to environmental and safety standards. These certifications help ensure regulatory compliance in many regions, simplify procurement for regulated facilities, and support long-term reliability in certified industrial installations.
The combination of a glass-filled nylon body, thermoplastic material, and nickel-plated bronze contacts provides robust mechanical strength and corrosion resistance, reducing replacement frequency. Locking action minimizes routine disconnections, improving uptime. Overall, the unit supports lower maintenance costs and higher asset availability in demanding facilities.
