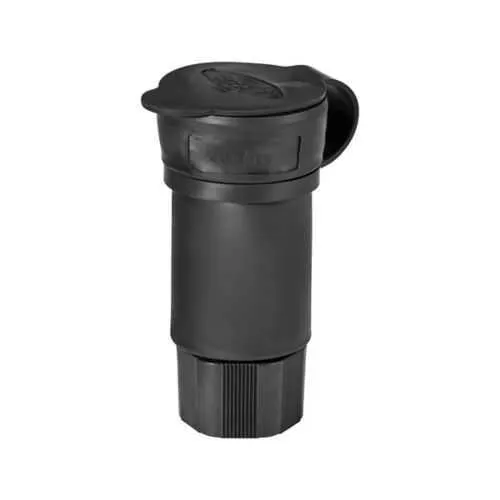

Eaton L2130CWBK Watertight Locking Connector - IP67
Part Number: L2130CWBK
Quick Summary
The Eaton L2130CWBK watertight locking connector enables secure, four-pole power connections for industrial equipment in harsh environments. When cable ingress or accidental disconnections threaten uptime, this connector delivers reliable seals and a positive lock. With IP67 protection, RoHS compliance, and cULus listing, it meets demanding North American and worldwide safety standards. Its back-wiring design simplifies field terminations, while a rugged nylon body and Santoprene elastomeric seal resist heat, chemicals, and washdown. Compact dimensions and a 30A rating make it a practical choice for motor starters, pumps, and industrial automation panels, reducing installation time and lifecycle costs.
Product Information
Extended Description
L2130CWBK Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 120/208V, Back wiring, Black, Steel, Watertight, L21-30, Four-pole, Five-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L2130CWBK
UPC
032664709333
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L21-30
Number Of Poles
Four-pole
Number of wires
5 Grounding
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 4 NEMA 6P NEMA 6 NEMA 4X IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature: Watertight locking design. Business Impact: Prevents water intrusion and accidental disconnections, reducing maintenance cycles and unplanned downtime. Application: Outdoor equipment, washdown areas, and damp environments where reliable sealing is critical. Feature: Four-pole, five-wire L21-30 configuration rated for 30A at 120/208V. Business Impact: Consistent power delivery to motors and industrial devices with secure back-wiring for simplified field terminations. Application: Industrial motors, pumps, and automation panels requiring robust power contacts. Feature: Back wiring and torque-appropriate termination for #18-10 AWG conductors. Business Impact: Faster, verifiable terminations with predictable torque values, lowering install labor and rework. Application: Panel builds and field installs in harsh environments. Feature: Material and build—Nylon body, Santoprene seal, and nickel-plated brass contacts. Business Impact: Enhanced chemical resistance, rugged longevity, and corrosion protection, extending service life in challenging plants. Application: Food & beverage, pharma, and metalworking facilities with frequent washdowns. Feature: Environmental and safety certifications—IP67, NEMA compatibility, RoHS, and cULus listing. Business Impact: Regulatory compliance reduces risk and accelerates facility approvals. Application: Global deployments requiring stringent environmental and safety standards. Feature: Physical dimensions and weight (6.38 in L, 3.82 in H, 4.4 in W, 1.025 lb). Business Impact: Predictable footprint for panel planning and enclosures, aiding space optimization. Application: Control cabinets and equipment housings where space is a premium.
Get a Quick Quote for a Eaton L2130CWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2130CWBK?
Enquire Now
FAQs
Yes. The L2130CWBK supports back-wiring with #18-10 AWG conductors and provides a defined torque range to ensure reliable terminations. This design streamlines field installations, reduces termination errors, and improves panel consistency across assemblies.
Its IP67-rated watertight seal, NEMA compatibility, and rugged nylon body with a Santoprene elastomeric seal guard against water, dust, and chemical exposure. This combination minimizes corrosion risk and downtime in harsh environments.
The unit is a four-pole L21-30 configuration rated at 30A and supports #18-10 AWG conductors with back wiring. This setup is ideal for industrial motors and equipment requiring a secure five-wire (including grounding) connection.
Yes. The connector is RoHS compliant and cULus Listed, aligning with global safety and environmental standards and simplifying regulatory approvals for North American and international deployments.
By combining watertight sealing, a secure locking mechanism, and durable contact materials, the L2130CWBK reduces receptacle wear, minimizes water ingress risk, and shortens installation time. Over the product lifecycle, this translates to lower maintenance costs and improved uptime for critical equipment.
