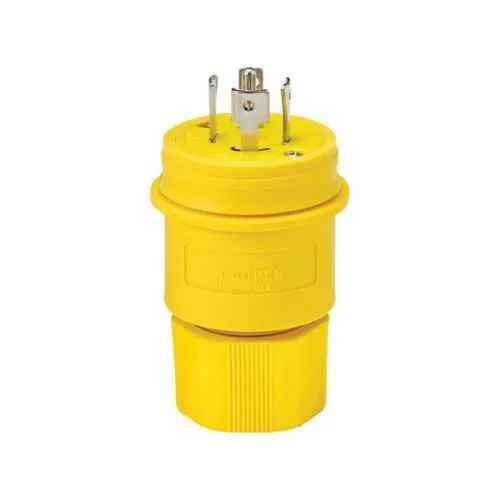

Eaton L2130PWBK Watertight Locking Plug - IP67
Part Number: L2130PWBK
Quick Summary
The Eaton Arrow Hart watertight locking plug is designed to deliver reliable power connections for industrial equipment in harsh environments. It supports back-wiring with #18-10 AWG conductors up to 30A at 120/208V in a four-pole L21-30 configuration, making it ideal for rugged installations. This solution addresses common issues such as moisture ingress, vibration, and poor polarity by providing a true locking connection that stays seated even in dirty or outdoor settings. Key certifications include IP67 ingress protection for water and dust resistance, cULus listing for safety compliance, and RoHS compliance for restricted substances. By combining a durable Santoprene seal and nickel-plated brass contacts, it reduces maintenance costs while ensuring dependable operation in industrial networks. Compatible with industrial wiring methods and back-wiring devices, it supports fast, secure field assembly.
Product Information
Extended Description
L2130PWBK Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 120/208V, Back wiring, Black, Steel, Watertight, L21-30, Four-pole, Five-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L2130PWBK
UPC
032664709340
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L21-30
Number Of Poles
Four-pole
Number of wires
Grounding 5
Torque rating
20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 6P NEMA 6 NEMA 4 NEMA 4X IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature: IP67 watertight protection ensures reliable operation in moisture-prone or dusty environments. Business Impact: Reduces downtime and maintenance costs by preventing water ingress that can corrode components, improving uptime in outdoor or washdown areas. Application: Ideal for outdoor equipment, washdown zones, and coastal facilities where reliable power connections are essential.Feature: 30A amperage rating at 120/208V (3ØY) delivers robust power for medium-duty industrial loads. Business Impact: Supports standard equipment without oversizing infrastructure, enabling cost-effective installations and safer circuit design. Application: Industrial motors, pumps, and control panels requiring reliable three-phase power.Feature: Four-pole, five-wire configuration with back wiring ( #18-10 AWG ) supports secure, field-terminated connections. Business Impact: Simplifies installation and reduces terminal fatigue, lowering field service time and labor costs. Application: Complex power feeds in manufacturing lines and process equipment.Feature: Locking plug design with a 20 lbf-inch torque rating provides vibration-resistant mating. Business Impact: Maintains conductor integrity in high-vibration environments, reducing nuisance outages and connection loosening. Application: Heavy machinery on production floors subject to movement and vibration.Feature: Nickel-plated brass contacts and Santoprene sealing deliver durable, low-resistance contacts and robust sealing. Business Impact: Improves electrical efficiency and longevity while resisting wear from repeated mate/unmate cycles. Application: Harsh environments with frequent plug cycles, such as material handling and automated systems.Feature: Nylon face/body and back-wiring wiring method offer lightweight, durable construction with easy field assembly. Business Impact: Facilitates quick installations and replacements, minimizing downtime during plant maintenance. Application: Industrial plug assemblies in harsh plant environments with frequent service intervals.
Get a Quick Quote for a Eaton L2130PWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2130PWBK?
Enquire Now
FAQs
Yes. The L2130PWBK is designed for back-wiring with #18-10 AWG conductors and uses a four-pole L21-30 layout, delivering a secure, code-compliant installation for three-phase power systems.
The locking plug has a torque rating of 20 lbf-inch to ensure secure mating, with nickel-plated brass contacts to minimize resistance and corrosion over time.
Yes. With an IP67 rating and rugged Santoprene seals, it is well-suited for outdoor, washdown, and dusty industrial environments where moisture and debris are concerns.
The L2130PWBK is cULus Listed and RoHS Compliant, providing safety assurance and restricted-substance compliance for modern industrial facilities.
Its watertight locking design, vibration resistance, and durable contact materials reduce downtime due to loose connections and corrosion, delivering lower maintenance costs and longer service intervals.
