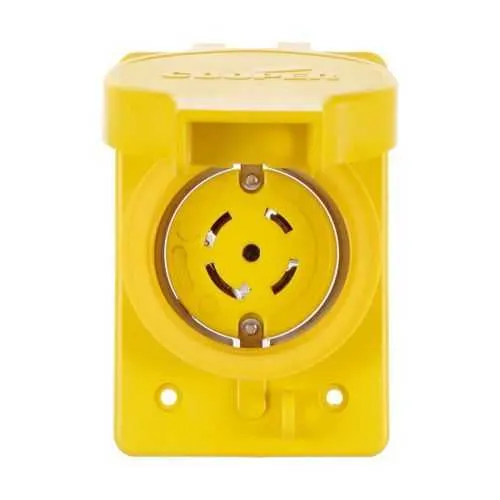

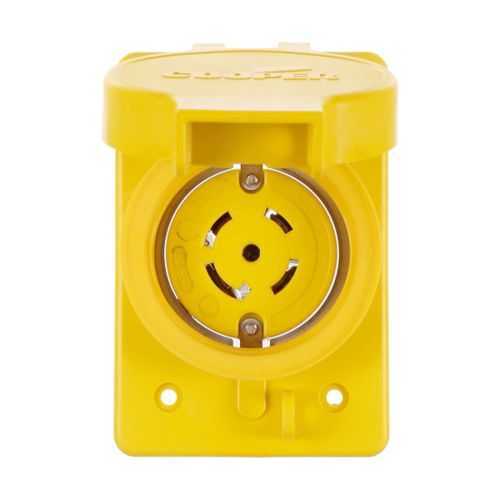

Eaton L2130RW Watertight Locking Receptacle - RoHS Compliant
Part Number: L2130RW
Quick Summary
The Eaton L2130RW watertight locking receptacle provides resilient, polarized power connections for industrial equipment in harsh environments. It helps engineers avoid costly downtime by delivering secure, moisture-resistant connections even under washdown cycles or direct exposure. With RoHS compliance and cULus listing, plus IP66/NEMA 4X protection, the unit meets global and harsh-environment standards. This receptacle is designed for industrial electrical applications and plug-locking reliability, delivering long-term value for maintenance teams seeking uptime. The device's back-wiring design supports efficient field wiring and reduces labor costs, while the thermoplastic construction offers impact resistance and chemical resilience. Procurement benefits include standardization across L21-30 configurations and straightforward compatibility with both back-wiring and prewired assemblies.
Product Information
Extended Description
L2130RW Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 30A, Industrial, 120/208V, Back wiring, Yellow, Single, Watertight, L21-30, Four-pole, Five-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L2130RW
UPC
040893687919
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
30A
NEMA configuration
L21-30
Number Of Poles
Four-pole
Number of wires
5 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 3R NEMA 4X NEMA 12 NEMA 3 NEMA 4 IP66
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: Watertight, thermoplastic housing provides moisture resistance that reduces ingress risk and extends service life, enabling reliable operation in washdown and outdoor environments. Business Impact: Fewer unplanned outages and maintenance calls translate to higher equipment availability and lower total cost of ownership. Application: Industrial facilities with exposure to water, dust, or harsh cleaning regimes benefit from durable, easy-to-clean enclosures. Feature: Four-pole, five-wire L21-30 configuration supports 30A at 120/208V with secure locking. Business Impact: Ensures safer, twist-and-lock power connections that resist accidental disconnection, improving process stability. Application: Heavy machinery and motors in manufacturing floors and distribution centers. Feature: Back wiring method and wide allowable wire size (#14-8 AWG); defined torque ratings (14-16 lbf-in for #10-14; 20 lbf-in for #8). Business Impact: Faster, cleaner installs with predictable torque, reducing field rework and warranty claims. Application: Panel wiring and field upgrade projects where reliability is critical. Feature: Nickel-plated bronze contacts and glass-filled nylon construction deliver corrosion resistance and consistent conductivity. Business Impact: Maintains low contact resistance over time, lowering heat and energy loss in demanding environments. Application: Environments with humidity, chemical exposure, or temperature cycling. Feature: RoHS compliance and cULus listing, plus IP66 and NEMA protection (3R, 4X, 12). Business Impact: Streamlines procurement and QA processes, supports regulatory compliance, and enhances site safety. Application: Global installations requiring robust environmental protection and lifecycle support.
Get a Quick Quote for a Eaton L2130RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2130RW?
Enquire Now
FAQs
The L2130RW uses a back wiring method compatible with #14-8 AWG conductors and provides a four-pole, five-wire L21-30 configuration rated for 30A at 120/208V. Torque specs are 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG, ensuring secure, code-compliant terminations and reliable field installs.
This receptacle is rated 30A, 120/208V, with a four-pole configuration (L21-30) and locking receptacle type. It offers IP66 protection and NEMA ratings including 3R, 4X, and 12, providing robust protection against dust, water ingress, and harsh environmental conditions in industrial settings.
The L2130RW excels in washdown and outdoor industrial environments due to its watertight design and IP66/NEMA 4X protection. It is well-suited for manufacturing floors, food processing facilities, and outdoor equipment enclosures where reliable locking connections reduce downtime and maintenance costs.
The receptacle is RoHS compliant and cULus Listed NOM, reflecting adherence to global environmental and safety standards. It also carries IP66 protection and multiple NEMA ratings (3R, 4X, 12), supporting regulatory compliance and safe operation in demanding industrial installations.
The locking, moisture-resistant design reduces accidental disconnections and ingress-related failures, lowering downtime. Nickel-plated bronze contacts maintain conductivity and resist corrosion, extending service life. Combined with straightforward installation and standardized L21-30 wiring, the ROI includes lower maintenance costs and longer equipment uptime.
