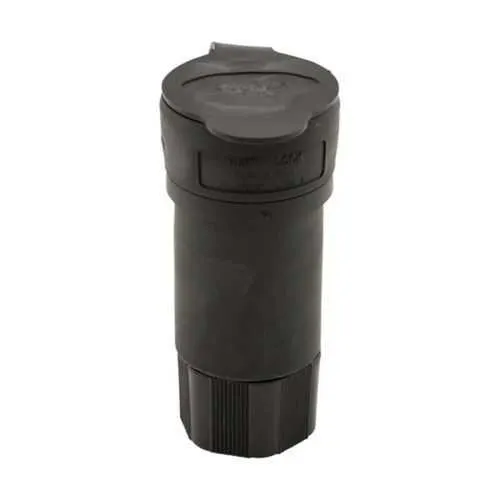

Eaton L2220CWBK Watertight locking connector - IP67
Part Number: L2220CWBK
Quick Summary
Eaton L2220CWBK watertight locking connector provides secure, industrial power connections for equipment enclosures. In harsh environments, water intrusion, dust, and vibration threaten uptime and safety. It carries RoHS compliance and cULus listing, with IP67 environmental protection and robust NEMA compatibility to support rugged service. Designed for control panels and heavy machinery, this back-wiring, four-pole connector improves installation efficiency, reduces maintenance, and enables code-compliant, durable power distribution in industrial automation and processing environments.
Product Information
Extended Description
L2220CWBK Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 277/480V, Back wiring, Black, Steel, Watertight, L22-20, Four-pole, Five-wire, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L2220CWBK
UPC
032664709364
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L22-20
Number Of Poles
Four-pole
Number of wires
5 Grounding
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
3ØY 277/480 V
Environmental resistance
NEMA 6 NEMA 6P NEMA 4X IP67 NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature: Watertight locking design protects against water ingress and dust, reducing corrosion and field failures. Business impact: Longer service life and lower maintenance costs in washdown or outdoor locations. Application: Ideal for outdoor equipment, packaging lines, or exposed control cabinets where reliability matters. Feature: Back wiring for #18-10 AWG simplifies field terminations, speeding installation and reducing wiring errors. Business impact: Faster commissioning and lower labor costs on busy production floors. Application: Control panel assemblies and machine wiring in tight spaces. Feature: 20A, 277/480V, four-pole, five-wire configuration (L22-20) supports 3-phase power distribution with grounding. Business impact: Efficient motor and load power delivery with clear phase alignment. Application: Industrial motors, drives, and distribution blocks in automation systems. Feature: Nylon face/body, Santoprene elastomeric seal, nickel-plated brass contacts deliver durability and corrosion resistance. Business impact: Resilient performance in harsh environments and chemical exposure. Application: Heavy-duty industrial connectors used in demanding automation settings. Feature: IP67 and NEMA 6/6P/4X compatibility provide proven environmental protection. Business impact: Guaranteed protection in wet, dusty, and washdown facilities, reducing downtime. Application: Food & beverage, water treatment, and outdoor equipment enclosures. Feature: RoHS compliant and cULus Listed ensure regulatory alignment and traceability. Business impact: Smooth procurement and safer, compliant installations across regions. Application: Global manufacturing and maintenance programs in industrial automation.
Get a Quick Quote for a Eaton L2220CWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2220CWBK?
Enquire Now
FAQs
The L2220CWBK supports back wiring for #18-10 AWG conductors. Strip the insulation per conductor size, insert the conductors into the back-wiring terminals, and tighten to the specified torque. Use 14-16 lbf-in for #10-14 AWG or 20 lbf-in for #8 AWG to ensure a secure connection. Verify polarity and grounding before closure.
This connector is rated at 20A and supports 277/480V in a four-pole, five-wire configuration (L22-20). It is intended for three-phase power distribution in industrial equipment and control panels, with grounding included for safe operation in demanding environments.
Yes. The connector offers IP67 protection and is compatible with NEMA 6, 6P, and 4X environments. This watertight design protects against dust, water immersion, and washdown conditions, helping maintain performance and reducing maintenance in outdoor and wet-process installations.
The L2220CWBK is RoHS compliant and cULus Listed, ensuring regulatory alignment and safety for North American applications. Its IP67 rating and NEMA compatibility further support compliance in industrial automation and hazardous-duty environments.
Use the back-wiring method with the correct wire gauge (#18-10 AWG) and apply the specified torque to ensure a secure, vibration-resistant connection. The nylon body, Santoprene seal, and nickel-plated brass contacts promote durability and corrosion resistance, reducing downtime and extending service life in automation and control-panel applications.
