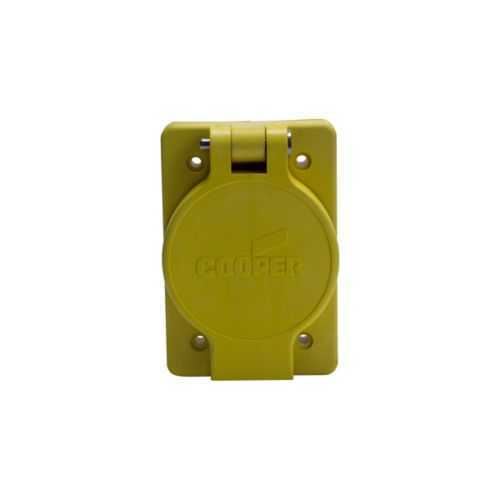

Eaton L2220RW watertight locking receptacle - IP66/NEMA 4X
Part Number: L2220RW
Quick Summary
The Eaton L2220RW watertight locking receptacle is designed to deliver reliable power in harsh industrial environments. Operators struggle with moisture, dust, and corrosion that cause downtime and miswired connections. This unit is IP66-rated and NEMA 4X protected, RoHS compliant, and NOM cULus Listed, ensuring safe operation across outdoor, washdown, and dusty sites. Built for back-wiring and easy field installation, it supports 277/480 V three-phase systems and 20 A circuits, offering compatibility with Arrow Hart locking devices and standard industrial panels. In short, it blends rugged durability with straightforward install where reliability matters most, delivering consistent performance and reduced maintenance in demanding settings.
Product Information
Extended Description
L2220RW Eaton: Eaton Arrow Hart watertight receptacle , #14-8 AWG, 20A, 277/480V, Yellow, Four-pole, Five-wire.
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L2220RW
UPC
040893687926
Product Length/Depth
4.75 in
Product Height
4 in
Product Width
3.75 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
20A
Degree of protection
IP66 NEMA 4X NEMA 3R NEMA 4 NEMA 12 NEMA 3
NEMA configuration
L22-20
Number of gangs
Single-gang
Number Of Poles
Four-pole
Number of wires
Grounding 5
Operating temperature
-40 to 75 °C (-40 to 167 °F)
Receptacle type
Locking
Voltage rating
3ØY 277/480 V
Environmental resistance
NEMA 3 NEMA 12 NEMA 3R NEMA 4X IP66 NEMA 4
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking receptacle
Feature: Watertight locking design with IP66 and NEMA 4X protection delivers moisture and dust ingress resistance. Business impact: reduces unplanned downtime and extends service life in outdoor, washdown, and dusty environments. Application: ideal for outdoor machinery, coastal equipment, and food processing lines. Feature: Nickel-plated bronze contacts provide low contact resistance and durable mating. Impact: minimizes voltage drop and heat during high-current starts; reduces replacement frequency. Application: 20A 277/480V 3ØY circuits; ensures reliable connection in power distribution. Feature: Glass-filled nylon body and Santoprene elastomer sealing deliver impact resistance and chemical tolerance. Impact: withstands -40 to 75 C; maintains seal during temperature swings. Application: industrial switch gear housings, control panels, and harsh environments. Feature: Back wiring method simplifies termination and reduces field labor; compatible with #14-8 AWG conductors. Impact: speeds installation and lowers risk of loose wires. Application: control panels and wall-mount installations. Feature: RoHS compliance and NOM cULus listings support regulatory alignment across regions. Impact: reduces compliance risk and simplifies global procurement. Application: projects with RoHS, NOM, and safety standards. Feature: L22-20 NEMA configuration; single-gang, four-pole, five-wire; yellow housing for quick identification. Impact: easy integration into existing locking-device ecosystems. Application: industrial automation, conveyors, outdoor equipment, and rugged power distribution.
