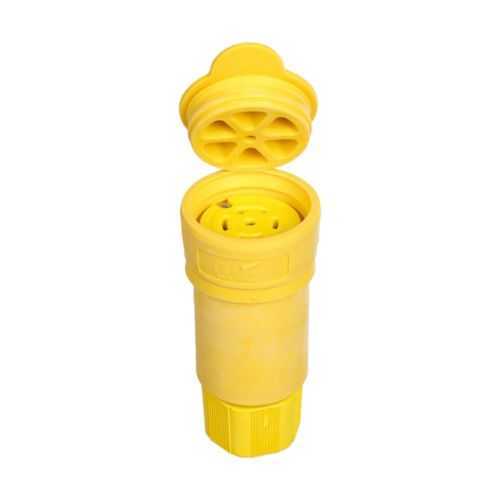

Eaton L2230CW Watertight Locking Connector - IP67
Part Number: L2230CW
Quick Summary
Eaton L2230CW watertight locking connector is a rugged industrial power connection designed for 277/480 V equipment. In harsh environments, moisture, dust, and vibration threaten uptime, making reliable terminations essential. RoHS compliant and cULus listed, it also carries IP67 protection to resist immersion and washdown. With back-wiring for simple field terminations and a 18-10 AWG wire-size range, it reduces installation time and miswiring risk. Designed for Arrow Hart watertight locking devices, it helps procurement standardize on durable, long-life components while delivering predictable performance in control panels, motors, and outdoors enclosures.
Product Information
Extended Description
L2230CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 277/480V, Back wiring, Yellow, Steel, Watertight, L22-30, Four-pole, Five-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L2230CW
UPC
040893642550
Product Length/Depth
6.75 in
Product Height
3.91 in
Product Width
4.43 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L22-30
Number Of Poles
Four-pole
Number of wires
Grounding 5
Torque rating
20 lbf-inch
Voltage rating
3ØY 277/480 V
Environmental resistance
NEMA 6P NEMA 4X NEMA 6 NEMA 4 IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature: IP67 watertight sealing and rugged housing. Business impact: Protects connectors in washdown areas and outdoor installations, reducing corrosion and unplanned downtime. Application: control panels, outdoor enclosures, and plants with moisture exposure. Feature: 30A four-pole design with 277/480V rating. Business impact: supports full motor loads with safe grounding and fewer adapters. Application: industrial feeders, motors, and equipment racks. Feature: Back wiring for #18-10 AWG. Business impact: simplifies field wiring, lowers labor costs, and minimizes termination errors. Application: panel terminations and field installs. Feature: Nickel-plated brass contacts. Business impact: improves contact reliability and corrosion resistance for long life in harsh environments. Application: connectors in wet or chemical environments. Feature: Nylon face/body with Santoprene seal. Business impact: provides chemical resistance, abrasion tolerance, and temperature stability. Application: rugged industrial environments and washdown zones. Feature: Compliance and certifications. Business impact: RoHS and cULus listings reduce procurement risk and regulatory exposure. Application: cross-border projects and regulated facilities.
Get a Quick Quote for a Eaton L2230CW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2230CW?
Enquire Now
FAQs
Install using #18-10 AWG conductors, back-wiring terminals, and torque to 20 lbf-in. Ensure the IP67 seal engages fully and the ground wire is correctly connected to the grounding terminal for a compliant, reliable termination.
Its IP67 environmental protection, NEMA 6/4X compatibility, and corrosion-resistant nickel-plated brass contacts guard against water, dust, and chemicals, enabling dependable operation in washdown areas.
Yes. The connector is RoHS compliant and cULus listed, providing regulatory compliance and traceability for safe, globally sourced electrical installations.
The L2230CW is a 30A, 277/480 V, four-pole L22-30 locking connector designed for back wiring with #18-10 AWG, suitable for industrial motors and feeders.
Watertight sealing and durable contacts reduce replacement frequency and downtime, lowering maintenance costs while enabling faster field terminations and standardized procurement.
