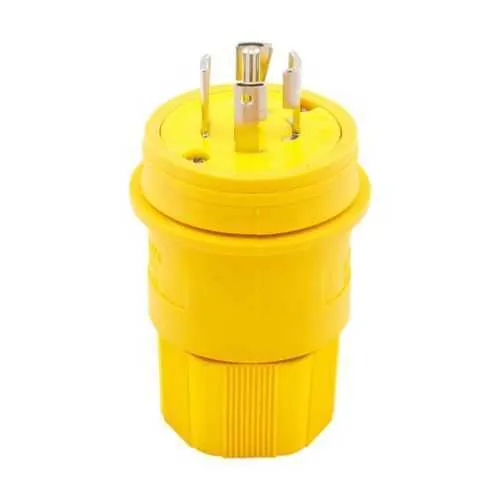

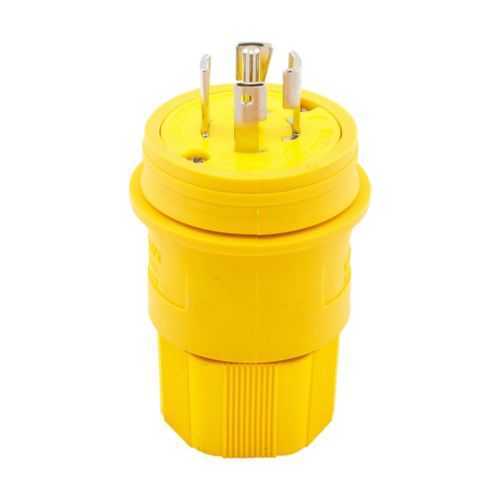

Eaton L2330PWBK Watertight locking plug - IP67/L23-30
Part Number: L2330PWBK
Quick Summary
The Eaton Arrow Hart watertight locking plug delivers sealed power connections for industrial equipment in harsh environments. Engineers often contend with water ingress and downtime when wiring enclosures in outdoor or washdown areas; this plug mitigates that risk with IP67 protection and a rugged locking design. RoHS compliant and cULus listed, it supports demanding 347/600V systems and the L23-30 configuration for reliable, code-compliant installations. Back wiring for #18-10 AWG cables simplifies field assembly while maintaining a secure, maintenance-friendly connection. Designed for motor, pump, and conveyor applications, it combines durability with installation efficiency to reduce maintenance frequency and total cost of ownership.
Product Information
Extended Description
L2330PWBK Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 347/600V, Back wiring, Black, Steel, Watertight, L23-30, Four-pole, Five-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L2330PWBK
UPC
032664709463
Product Length/Depth
6.38 in
Product Height
3.82 in
Product Width
4.4 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L23-30
Number Of Poles
Four-pole
Number of wires
Grounding 5
Voltage rating
3ØY 347/600 V
Environmental resistance
NEMA 4X IP67 NEMA 6P NEMA 4 NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature: IP67 watertight protection meets NEMA 4X/6 environments. Benefit: Prevents water ingress and corrosion, reducing downtime and extending service life in outdoor and washdown areas. Application: Outdoor equipment, pumps, and processing lines where exposure to moisture is high. Long-tail keyword: watertight locking plug for harsh environments. Feature: Four-pole, five-wire L23-30 configuration rated at 30A and 347/600V. Benefit: Handles three-phase power and grounding with a robust, codes-compatible connector, ensuring safe, dependable power delivery. Application: Industrial motor drives, conveyors, and heavy machinery in mixed voltages. Long-tail keyword: 347/600V four-pole locking plug. Feature: Back wiring method for #18-10 AWG conductors. Benefit: Streamlines installation by allowing simple, reliable conductor termination at the device; reduces field labor and termination errors. Application: Panel-fed connections and field-installation tasks in rugged environments. Long-tail keyword: back wiring locking plug. Feature: Nickel-plated brass contacts and Santoprene seal in a nylon body. Benefit: Delivers durable electrical performance with resilient sealing and good conductivity, resisting wear from vibration and temperature variation. Application: Industrial automation and equipment enclosures that experience vibration. Long-tail keyword: nickel plated contacts. Feature: Nylon face/body with black finish and 0.43–1.15 in cord diameter flexibility. Benefit: Versatile cord compatibility supports a wide range of pre-fabricated cords, reducing part numbers and stocking requirements. Application: Custom harness assemblies and machine OEMs needing adaptable wiring. Long-tail keyword: cord diameter 0.43-1.15 inch. Feature: RoHS compliant and cULus listed. Benefit: Ensures regulatory compliance and safer procurement for global installations, aiding audits and quality programs. Application: Industrial facilities with strict environmental and safety standards. Long-tail keyword: RoHS compliant locking plug.
Get a Quick Quote for a Eaton L2330PWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2330PWBK?
Enquire Now
FAQs
Yes. The L2330PWBK is designed for back wiring and supports #18-10 AWG conductors, enabling fast, dependable terminations in control panels and field enclosures with reduced crimping and installation time.
The plug is rated for 30A at 347/600V, configured as NEMA L23-30, four-pole with five wires (grounding conductor included). It provides a secure, high-performance connection suitable for three-phase industrial equipment.
Yes. With IP67 rating and support for NEMA 4X/6 environmental conditions, it is well-suited for outdoor and wash-down environments, including motors, pumps, and conveyors in harsh facilities.
The plug is RoHS compliant and cULus Listed, ensuring regulatory alignment for global industrial deployments and safer, more reliable procurement.
Back wiring simplifies field termination, reducing labor and error. The nickel-plated brass contacts and Santoprene seal improve durability and seal integrity under vibration and temperature cycling, lowering maintenance costs and increasing uptime.
