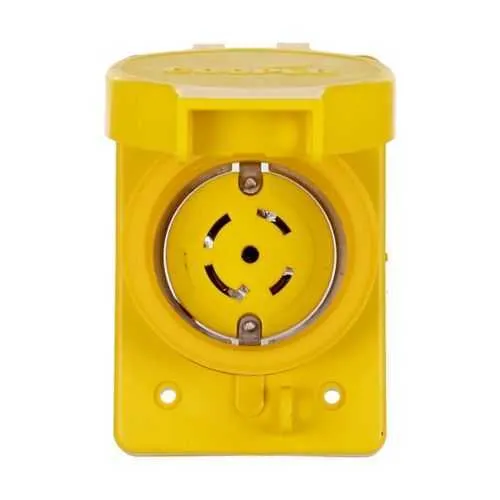

Eaton L2330RWBK Watertight locking receptacle - IP66
Part Number: L2330RWBK
Quick Summary
The Eaton L2330RWBK watertight locking receptacle provides secure power connections for rugged industrial environments. Engineers often wrestle with moisture intrusion, corrosion, and mis-wiring that disrupt schedules and inflate costs. This unit carries RoHS compliance, cULus listing, and NOM certification, along with IP66 and multiple NEMA ratings to perform in washdown, dusty, and harsh outdoor settings. Back-wire capability and a robust thermoplastic/glass-filled nylon construction simplify installation while delivering reliable service across 347/600V systems. For procurement teams, the combination of safety, durability, and modular design translates to lower lifecycle costs and fewer field failures.
Product Information
Extended Description
L2330RWBK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 347/600V, Back wiring, Black, Single, Watertight, L23-30, Four-pole, Five-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L2330RWBK
UPC
032664709470
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
30A
NEMA configuration
L23-30
Number Of Poles
Four-pole
Number of wires
5 Grounding
Receptacle type
Locking
Voltage rating
3ØY 347/600 V
Environmental resistance
IP66 NEMA 12 NEMA 3 NEMA 4 NEMA 4X NEMA 3R
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Watertight construction with IP66 and NEMA 4X protection ensures moisture resistance and reliable operation in harsh environments. This directly reduces maintenance cycles and downtime, especially in outdoor, washdown, or dusty production lines. Feature: 30A, four-pole L23-30 configuration rated for 347/600V with five conductors. Business impact: Supports three-phase power distribution for heavy equipment while maintaining a compact footprint. Application: Suitable for industrial motors, pumps, and power feeders in manufacturing and processing plants. Feature: Back wiring for #14-8 AWG conductors and quick termination. Business impact: Speeds up installation, reduces field errors, and improves consistency in panel or enclosure wiring. Application: Preferred where fast field wiring and reliability are critical, including remote or harsh sites. Feature: Glass-filled nylon face/body and thermoplastic housing with nickel-plated bronze contacts. Business impact: Delivers high mechanical strength and corrosion resistance, extending service life in challenging environments. Application: Endures temperature variations and chemical exposure common in handling and processing facilities. Feature: RoHS compliance and cULus NOM certifications across design, plus broad environmental ratings. Business impact: Ensures regulatory compliance and safer audits while enabling easy integration with Eaton's locking device ecosystem. Application: Fits industrial receptacle families and back-wired locking solutions for standardized plant power distribution.
Get a Quick Quote for a Eaton L2330RWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L2330RWBK?
Enquire Now
FAQs
The L2330RWBK uses back wiring and accepts #14-8 AWG conductors. This simplifies on-site terminations and reduces the risk of loose connections. The four-pole, five-wire configuration supports 3ØY 347/600 V systems, and the locking receptacle design helps ensure connections stay secure in vibration-heavy environments.
Key electrical ratings for the L2330RWBK are 30A, four poles in the L23-30 configuration, with a voltage rating of 347/600 V and back wiring for #14-8 AWG conductors. This combination supports efficient three-phase distribution while maintaining a compact footprint suitable for industrial enclosures and panel boards.
Designed for harsh industrial environments, this receptacle is ideal for outdoor installations, washdown areas, dusty facilities, and any location demanding moisture resistance and rugged construction. The IP66/NEMA 4X rating, along with a durable thermoplastic body and nickel-plated bronze contacts, ensures dependable operation under challenging conditions and reduces field failures.
The L2330RWBK carries RoHS compliance and cULus NOM listing. These certifications, together with IP66 and multiple NEMA ratings (12, 3, 4, 4X, 3R), help simplify regulatory audits and code compliance for facilities and OEMs while ensuring compatibility with broader Eaton locking device families.
The locking mechanism and watertight seal reduce rework and field failures, while back wiring speeds installation and minimizes labor costs. Durable materials and corrosion resistance extend service life, lowering replacement cycles and boosting uptime for mission-critical equipment across manufacturing and processing facilities.
