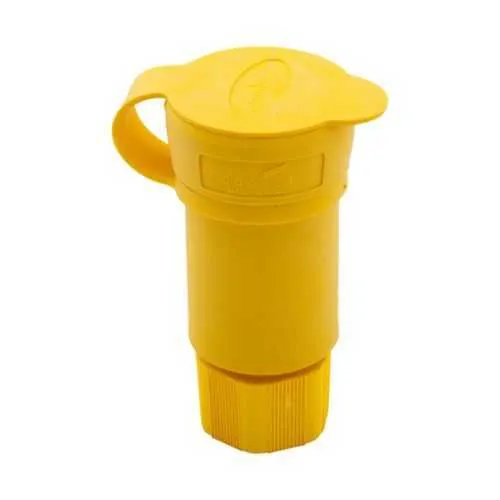

Eaton L530CW Watertight Locking Connector - IP67
Part Number: L530CW
Quick Summary
Watertight locking connectors from Eaton Arrow Hart secure power interconnections for industrial equipment in harsh environments. Engineers often struggle with ingress, back-wiring errors, and mismatched ratings in demanding installations. It carries IP67 ingress protection and UL Listed, cULus Listed, and NOM certifications to support global compliance. For procurement, its L5-30 two-pole, grounding configuration and back-wiring capability streamline installation and reduce downtime. The design's nickel-plated brass contacts, Santoprene elastomeric seal, and yellow Nylon housing offer robust chemical resistance, while back-wire wiring simplifies field terminations. This combination delivers predictable performance, easier maintenance, and lower total cost of ownership across OEM and aftermarket applications.
Product Information
Extended Description
L530CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 125V, Back wiring, Yellow, Steel, Watertight, L5-30, Two-pole, Three-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L530CW
UPC
040893641867
Product Length/Depth
6.75 in
Product Height
3.75 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM UL Listed CSA certified cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L5-30
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
20 lbf-inch
Voltage rating
125 V
Environmental resistance
NEMA 6P NEMA 4 IP67 NEMA 4X NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Watertight locking connector design with IP67 protection reduces ingress and corrosion risk, enabling uninterrupted operation in outdoor or damp environments. Material composition including nylon body, nickel-plated brass contacts, and Santoprene seal delivers chemical resistance and long-term durability, translating to less frequent replacements and lower maintenance costs. Back-wiring capability paired with 18-10 AWG compatibility speeds field terminations while maintaining secure, code-compliant connections, lowering installation time. The L5-30 two-pole configuration with 30A at 125V supports common industrial loads, while the rugged yellow housing improves visibility in cluttered or outdoor workspaces, reducing misconnects. Certifications including UL Listed, CSA, NOM, and RoHS compliance provide global traceability and regulatory assurance, simplifying multi-region deployments. Overall, the L530CW aligns with OEM power-distribution needs, reducing downtime and validating ROI through dependable, standards-compliant interconnection.
Get a Quick Quote for a Eaton L530CW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L530CW?
Enquire Now
FAQs
Yes. The L530CW supports back-wiring and accepts #18-10 AWG conductors, facilitating quick, code-compliant terminations while maintaining a reliable seal and locking mechanism.
The L530CW carries IP67 ingress protection and is UL Listed, CSA certified, NOM approved, and RoHS compliant, ensuring global regulatory alignment for outdoor and damp-location installations.
L530CW uses a two-pole, three-wire configuration with L5-30 NEMA designation, including a grounding conductor and nickel-plated brass contacts for durable, secure power connections.
Mating torque is 20 lbf-in, with a nylon body, nylon face, nickel-plated brass contacts, and Santoprene elastomer seals designed for aggressive environments.
Ideal for industrial power distribution, outdoor equipment, and generator hookups. Its watertight seal, back-wiring design, and compliance certifications reduce downtime, simplify maintenance, and support global deployment.
