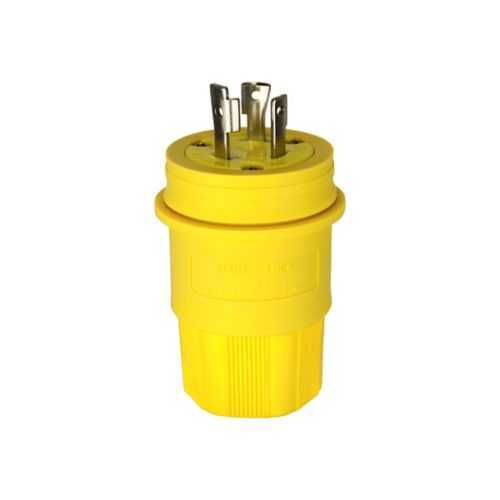

Eaton L530PW Locking Plug - IP67 Watertight, 30A
Part Number: L530PW
Quick Summary
The Eaton L530PW watertight locking plug provides a secure, back-wired connection for industrial equipment at 125 V. In harsh environments, inconsistent wiring and compromised seals drive downtime and safety incidents, so reliable protection matters. This connector carries UL Listed, CSA certified, and NOM cULus Listed markings, paired with RoHS compliance and IP67 protection to withstand washdowns, dust, and immersion risks. It also aligns with the L5-30 NEMA configuration for plug-and-play compatibility in portable power setups. For OEMs and maintenance teams, its back-wiring method supports clean terminations with #18-10 AWG conductors, while a rugged nylon body and nickel-plated brass contacts deliver durable, long-term performance. In short, it reduces field failures and supports safer, more efficient industrial power distribution.
Product Information
Extended Description
L530PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 125V, Back wiring, Yellow, Steel, Watertight, L5-30, Two-pole, Three-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L530PW
UPC
040893641782
Product Length/Depth
4.75 in
Product Height
3.75 in
Product Width
3.75 in
Product Weight
1.025 lb
Compliances
RoHS Compliant Federal Specifications Classification W-C375
Certifications
UL Listed CSA certified NOM cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L5-30
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
20 lbf-inch
Voltage rating
125 V
Environmental resistance
NEMA 4 NEMA 4X NEMA 6P NEMA 6 IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Wiring Devices Buyer’s Guide
Eaton Specification Sheet - L530PW
Eaton Specification Sheet - L530PW
Feature: Watertight enclosure delivers IP67 protection and NEMA 4/4X/6 ratings, guarding against water, dust, and washdowns. Business Impact: Extends equipment life and reduces unplanned outages in harsh environments. Application: outdoor equipment, washdown zones, and marine-adjacent facilities where reliable sealing is essential. Feature: L5-30 two-pole, three-wire configuration. Impact: ensures correct grounding and hot-neutral separation, reducing mis-wiring and safety risks. Application: portable power distribution for motors and heavy tools in factories. Feature: Back wiring method with #18-10 AWG capacity. Impact: simplifies installation, improves termination quality, reduces field errors. Application: terminal blocks and power inlets on industrial equipment. Feature: Material and contact design. Nylon body, Santoprene seal, nickel-plated brass contacts. Impact: durable, corrosion-resistant connections with low contact resistance and long life. Application: washdown environments and chemical exposure areas. Feature: Torque rating 20 lbf-in and cord diameter range 0.43-1.15 in. Impact: ensures secure mating without over-tightening; supports a broad cord range. Application: field installs with diverse cords. Feature: Certifications and compliance RoHS UL CSA NOM. Impact: procurement risk reduction and regulatory alignment. Application: OEMs and integrators needing compliant power connectors.
Get a Quick Quote for a Eaton L530PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L530PW?
Enquire Now
FAQs
The L530PW is rated for 30 A at 125 V and uses a back-wiring method designed for #18-10 AWG conductors. It is a two-pole, three-wire (L5-30) locking plug with a grounding conductor. The connector provides a 20 lbf-in torque rating to ensure a secure termination and an IP67 environmental rating to withstand wet or dusty field conditions.
IP67 means the plug is dust-tight and protected against immersion in water up to 1 meter for up to 30 minutes. This protects against washdowns and outdoor exposure, reducing corrosion risk and unplanned downtime. It enables safer operation in harsh environments and can lower maintenance frequency for equipment powered in wet or dirty facilities.
Yes. The L530PW features the L5-30 NEMA configuration with two poles and a grounding wire, designed to pair with matching L5-30 receptacles. It supports back-wired terminations for #18-10 AWG conductors, delivering secure mating and reliable power transfer for portable and fixed power distribution on industrial equipment.
The L530PW carries UL Listed, CSA certified, NOM cULus Listed marks, and RoHS compliance. These certifications verify electrical safety and environmental standards for North American industrial installations, helping procurement teams meet audits and qualify suppliers with confidence.
By delivering a watertight seal and robust contacts, the L530PW reduces maintenance calls due to moisture and corrosion. Back wiring simplifies termination, lowering assembly time, while the rugged nylon body and nickel-plated contacts extend service life. Over the equipment lifecycle, this translates to lower total cost of ownership and fewer unplanned outages.
