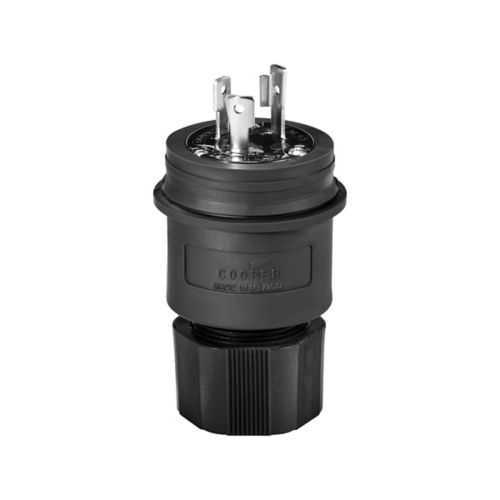

Eaton L530PWBK Watertight Locking Plug - IP67
Part Number: L530PWBK
Quick Summary
Eaton L530PWBK watertight locking plug is designed for industrial power connections in harsh environments. These conditions often challenge safety and reliability, leading to downtime and costly maintenance. It carries IP67 protection along with NEMA 4X compatibility and RoHS compliance, plus cULus Listing for added assurance. For procurement and field service, this rugged solution supports back wiring with #18-10 AWG cables, delivering safer, faster, and code-compliant connections in demanding facilities.
Product Information
Extended Description
L530PWBK Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 125V, Back wiring, Black, Steel, Watertight, L5-30, Two-pole, Three-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L530PWBK
UPC
032664709524
Product Length/Depth
4.75 in
Product Height
3.75 in
Product Width
3.75 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L5-30
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
20 lbf-inch
Voltage rating
125 V
Environmental resistance
NEMA 4X IP67 NEMA 6P NEMA 4 NEMA 6
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
The L530PWBK delivers reliable power connectivity in tough settings through a robust locking mechanism that reduces accidental disconnections, enhancing equipment uptime and operator safety. This feature translates to measurable improvements in maintenance planning and fewer production interruptions in outdoor or washdown environments. The two-pole, L5-30 configuration supports 125 V circuits at 30 A, providing ample capacity for industrial machinery while maintaining compact form. Back wiring simplifies field terminations, enabling quicker installations and easier upgrades in retrofit projects. Nickel-plated brass contacts ensure low contact resistance and durable performance under vibration and thermal cycling common in factories. The nylon body and Santoprene seal offer chemical resistance and dependable sealing, extending service life in corrosive or wet environments. Cord diameter compatibility from 0.43 to 1.15 inches accommodates flexible cable assemblies, reducing the need for multiple connector variants. RoHS compliance and cULus NOM listings further assure regulatory alignment and easier supplier qualification. The plug’s black finish and rugged construction make it suitable for high-visibility, high-use locations where reliability is critical. With an IP67 rating and NEMA 4X/6 compatibility, it withstands rain, washdowns, and dusty floors, contributing to safer, compliant operations and lower total cost of ownership over the asset lifecycle.
Get a Quick Quote for a Eaton L530PWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L530PWBK?
Enquire Now
FAQs
The L530PWBK is designed for back-wiring installations, simplifying field assembly. It accepts #18-10 AWG conductors and uses nickel-plated brass contacts for reliable, low-resistance connections under load. With a 125 V, 30 A rating and a torque rating of 20 lbf-in, it delivers secure terminations that resist vibration and pulling forces common in industrial environments.
This locking plug achieves rugged ingress protection with IP67 and NEMA 4X/6 compatibility, sealing against dust, water, and splashes in demanding settings. The Santoprene seals, nylon body, and nickel-plated contacts maintain performance under repeated washdowns and temperature swings. With RoHS compliance and cULus NOM listings, it also supports reliable operation in regulated facilities.
The L530PWBK is a two-pole, three-wire locking plug configured as L5-30 for 125 V circuits. It provides a 30 A amperage rating, a 125 V voltage rating, and a torque rating of 20 lbf-in. Wires connect via back termination for #18-10 AWG, offering robust performance in industrial machinery and damp environments.
Certified to RoHS, with cULus Listing and NOM recognition, the L530PWBK also aligns with stringent environmental standards. Its IP67 ingress protection and NEMA 4X/6 compatibility safeguard against water, dust, and chemicals, while the two-pole, locking design offers dependable operation in wet, dirty, and corrosive industrial spaces. For regulated facilities, NOM and RoHS compliance further ensure regulatory alignment.
In outdoor or washdown-heavy production lines, the L530PWBK provides reliable, easy-to-wire power connections with watertight integrity. Its back-wiring and IP67/NEMA protection minimize maintenance and downtime, reducing replacement costs. By using nickel-plated contacts and rugged Santoprene seals, facilities see extended service life, safer disconnections, and improved maintenance planning. This translates to faster commissioning and lower total cost of ownership in demanding production environments.
