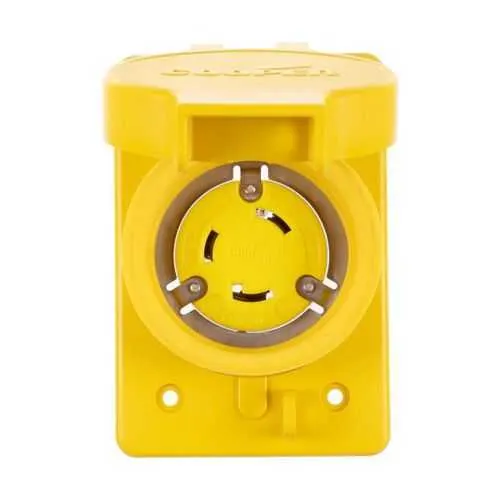

Eaton L530RW Locking Receptacle - Watertight IP67
Part Number: L530RW
Quick Summary
The Eaton L530RW locking receptacle is a watertight, two-pole locking device used in industrial applications. Moisture, dust, and vibration frequently degrade connections, leading to downtime and rising maintenance costs. This model is cULus listed, UL listed, and CSA certified, with IP67 protection and Federal Specifications W-C375 compliance for rugged environments. Back wiring supports quick installations on #14-8 AWG conductors, reducing field labor, while the yellow thermoplastic housing provides high-visibility safety in busy plants. Its back-wiring design simplifies installation in tight control panels and outdoors where space is at a premium, delivering faster commissioning and fewer wiring mistakes. With Arrow Hart reliability, it supports long service life in demanding industrial environments.
Product Information
Extended Description
L530RW Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 30A, Industrial, 125V, Back wiring, Yellow, Steel, Single, Watertight, L5-30, Two-pole, Three-wire, Thermoplastic, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L530RW
UPC
040893687650
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
Federal Specifications Classification W-C375
Certifications
cULus Listed NOM UL Listed CSA certified
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L5-30
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125 V
Environmental resistance
IP66 NEMA 3R NEMA 4X NEMA 4 NEMA 3 NEMA 12
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Watertight IP67 protection minimizes moisture ingress in outdoor equipment and wash-down environments, reducing corrosion risk and downtime. The locking receptacle design prevents accidental unplugging in vibration-prone settings, translating into higher equipment uptime and safer starts in demanding applications. Back wiring supports faster, more straightforward installations for #14-8 AWG conductors, lowering labor costs and helping field crews meet tight commissioning schedules. The unit's glass-filled nylon face and thermoplastic body deliver rugged durability in harsh environments while maintaining lightweight handling for technicians on the shop floor. Nickel-plated bronze contacts provide reliable, low-resistance connections that resist wear from frequent mating cycles, supporting long-term performance. Compatibility with 125 V, 30 A loads and L5-30 configuration makes it ideal for outdoor motors, control panels, and rugged industrial equipment, reducing total cost of ownership through fewer maintenance intervals and easier replacement. The color-coded yellow housing enhances safety and visibility in cluttered industrial spaces, aiding quick identification during troubleshooting and upgrades. Torque specifications of 14-16 lbf-in for smaller conductors and 20 lbf-in for #8 AWG ensure consistent, code-compliant terminations in the field. This combination of features supports both OEMs and maintenance teams seeking reliable, standards-aligned power distribution solutions.
Get a Quick Quote for a Eaton L530RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L530RW?
Enquire Now
FAQs
The L530RW supports back wiring with allowable #14-8 AWG conductors. This enables straightforward field termination and faster commissioning, especially in control panels and outdoor installations where space is limited. Torque guidance is 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG to ensure reliable, code-compliant connections.
The device is rated for 30 A at 125 V, with a NEMA L5-30 configuration (two-pole, three-wire). It carries IP67 protection for watertight performance and is cULus listed, UL listed, and CSA certified, with Federal Specifications W-C375 compliance for industrial reliability.
Ideal for outdoor motors, control panels, and other harsh-environment equipment, the L530RW handles wash-down areas, dust-prone rooms, and vibration-heavy settings where secure, weather-resistant power connections are essential.
Durability comes from a glass-filled nylon face with a thermoplastic body and nickel-plated bronze contacts, delivering corrosion resistance and repeatable mating performance. The locking design reduces unplugging incidents, lowering maintenance interventions and downtime.
Back wiring accommodates common control-panel wiring schemes, with torque specs to ensure secure terminations. The IP67 rating, yellow visibility, and compliance with multiple certifications help meet industry codes and safety standards while supporting reliable, long-term operation in demanding environments.
