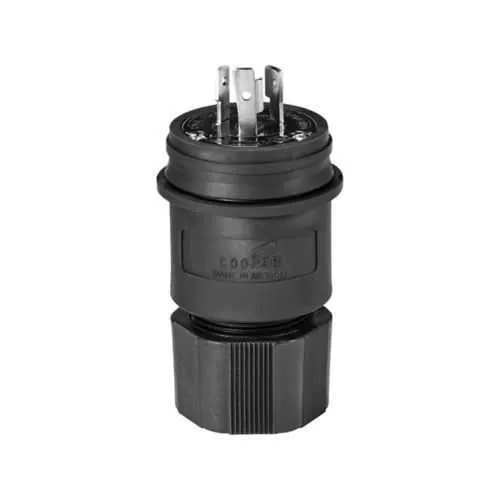

Eaton L620PWBK Watertight Locking Plug - IP67
Part Number: L620PWBK
Quick Summary
Eaton L620PWBK watertight locking plug is a rugged, back-wired power connector designed for industrial environments. This device enables secure, weatherproof electrical connections in washdown areas and outdoor equipment, reducing the risk of water ingress and downtime. In tough facilities, performance under harsh conditions matters, and IP67 protection alongside NEMA 4/6 ratings helps ensure reliable operation. The RoHS compliant, cULus listed NOM certification further supports safety and regulatory alignment. By combining a compact two-pole design with back wiring and a 20A, 250V rating, this plug delivers dependable power delivery while minimizing wiring complexity and maintenance costs for capital-intensive automation setups.
Product Information
Extended Description
L620PWBK Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 250V, Back wiring, Black, Steel, Watertight, L6-20, Two-pole, Three-wire, Santoprene, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L620PWBK
UPC
032664709555
Product Length/Depth
6.75 in
Product Height
3.75 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L6-20
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
14-16 lbf-inch
Voltage rating
250 V
Environmental resistance
NEMA 4 NEMA 6P IP67 NEMA 6 NEMA 4X
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Watertight locking design provides IP67 protection, reducing water ingress and corrosion risk, which translates to lower maintenance and longer asset life in outdoor or washdown environments. Back wiring support with #18-10 AWG simplifies field terminations, accelerating installation and minimizing labor costs on tough production lines. The two-pole, three-wire configuration with grounding and a 14-16 lbf-in torque rating ensures a secure, vibration-resistant connection for L6-20 powered equipment in demanding applications. Nylon face/body with Santoprene seals and nickel-plated brass contacts deliver chemical resistance and low contact resistance, improving reliability in aggressive environments and extending connector life. RoHS compliance and cULus NOM certification align with regulatory requirements, reducing compliance risk and facilitating audits for automation projects. The plug’s dimensions (6.75 in L × 4.25 in W × 3.75 in H) and weight (≈1.025 lb) support straightforward mounting in compact control panels and enclosures, aiding space planning and maintenance access.
Get a Quick Quote for a Eaton L620PWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L620PWBK?
Enquire Now
FAQs
Start by inspecting the back-wiring terminals and preparing #18-10 AWG conductors. Strip to the correct length, insert into the back-wiring terminals, and tighten to the specified torque (14-16 lbf-in). Ensure the Santoprene seal and nylon housing are properly seated to maintain IP67 integrity. Verify the L6-20 configuration and perform a continuity check before energizing the circuit.
Ideal for outdoor or washdown areas, the L620PWBK supports industrial equipment connections requiring IP67 protection and 20A at 250V. It is suitable for panels, motors, pumps, and other equipment that demand a rugged, watertight connection with back wiring for efficient field terminations.
The plug is RoHS compliant and cULus Listed NOM, with IP67 protection and NEMA compatibility for 4/6/4X environments. It also supports NEMA L6-20 configurations, making it suitable for industrial power distribution in harsh conditions while meeting safety and regulatory requirements.
Yes, the L620PWBK uses the L6-20 configuration and accepts #18-10 AWG conductors with back wiring. The design includes a 14-16 lbf-in torque rating for reliable retention, ensuring a secure connection in vibration-prone applications and simplifying replacement in service environments.
The watertight design minimizes ingress and corrosion, reducing downtime and maintenance costs in washdown or outdoor settings. Regulatory compliance (RoHS, cULus NOM) streamlines audits, while back wiring speeds installation. Combined with a durable nylon/santoprene construction and nickel-plated contacts, the plug extends service life, lowers replacement frequency, and improves overall equipment availability.
