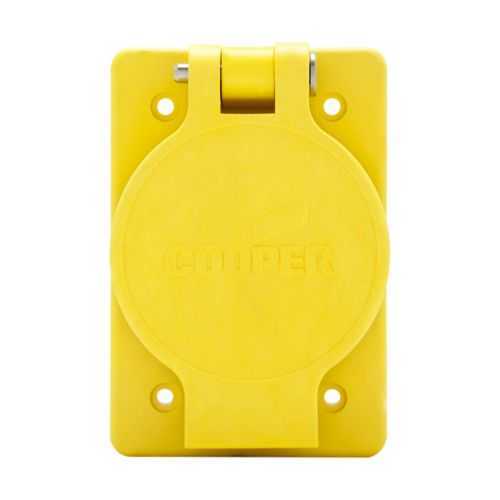

Eaton L620RW Watertight Locking Receptacle - IP66
Part Number: L620RW
Quick Summary
L620RW watertight locking receptacle delivers rugged power connections for industrial equipment in harsh environments. Users often struggle with moisture intrusion, corrosion, and unreliable back-wiring under washdown conditions. This unit is RoHS compliant and cULus listed, with IP66 and NEMA 4X protections to withstand outdoor and manufacturing-floor use. It supports 20A, 250V circuits with #14-8 AWG conductors and back wiring for efficient panel installs. For manufacturers, the combination of a thermoplastic body and glass-filled nylon face provides long-term durability and predictable performance in automation applications.
Product Information
Extended Description
L620RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 250V, Back wiring, Yellow, Single, Watertight, L6-20, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L620RW
UPC
040893687629
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Amperage Rating
20A
NEMA configuration
L6-20
Number Of Poles
Two-pole
Number of wires
3 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
250 V
Environmental resistance
NEMA 3R NEMA 12 NEMA 4X IP66 NEMA 4 NEMA 3
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: Locking receptacle design ensures secure mating. Business Impact: Prevents unintentional disconnections in vibration-prone automation lines, enhancing operator safety and reducing downtime. Application: conveyors, robotic workcells, and outdoor machinery require rugged locking connections that stay connected in washdown and dusty environments. Feature: Watertight rating with IP66 and NEMA protections. Business Impact: resists moisture ingress and washdown exposure, lowering maintenance costs and extending service life. Application: outdoor enclosures, food processing, and chemical plants demand reliable enclosure sealing. Feature: Back wiring support for #14-8 AWG conductors. Business Impact: simplifies field terminations, speeds installation, and reduces labor costs. Application: panel distribution and enclosure terminations in control panels. Feature: Nickel-plated bronze contacts. Business Impact: improves corrosion resistance and electrical reliability in humid or coastal facilities. Application: demanding industrial environments and long-term power reliability. Feature: Glass-filled nylon body with thermoplastic materials. Business Impact: delivers impact resistance, chemical tolerance, and long-term durability. Application: industrial controls, automation equipment, and rugged environments. Feature: L6-20 two-pole three-wire configuration. Business Impact: standardizes connections across equipment, reducing compatibility issues and training time. Application: 250V power distribution in industrial settings. Feature: RoHS compliant and cULus listed. Business Impact: ensures regulatory compliance and procurement simplicity, supporting safer sourcing. Application: quality-assured supply chains and audits.
Get a Quick Quote for a Eaton L620RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L620RW?
Enquire Now
FAQs
The L620RW supports #14-8 AWG conductors with back wiring and uses nickel-plated bronze contacts in a glass-filled nylon body. Plan for a 250 V, 20 A circuit with an L6-20 configuration and ensure the enclosure provides IP66/NEMA 4X protection for washdown or outdoor use. Use a compatible receptacle box to preserve sealing and locking integrity.
Key ratings include 20A current capability and 250V voltage with a two-pole, three-wire configuration (L6-20). Torque specs are 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG, ensuring secure terminations. Reliability is enhanced by corrosion-resistant nickel-plated bronze contacts and a durable thermoplastic/nylon housing suitable for industrial environments.
Yes. The L620RW carries IP66 and NEMA 4X protections along with NEMA 3/4/12 compatibility, making it suitable for outdoor areas, washdowns, and harsh production floors. Its watertight design and locking mechanism ensure secure connections even in vibration-heavy or wet conditions common to manufacturing and process facilities.
The L620RW is RoHS compliant and cULus listed, with NOM certification noted in its specifications. Its environmental ratings (IP66 and several NEMA enclosures) support compliance for industrial facilities seeking durable, code-aligned power distribution solutions for both indoor and outdoor use.
Expect low maintenance due to sealed construction, corrosion-resistant contacts, and durable thermoplastic/nylon housing. The locking design reduces unplugging incidents and downtime, improving uptime in automation lines. While initial costs may be higher than non-locking receptacles, the long-term ROI comes from fewer replacements, reduced maintenance, and compliance alignment.
