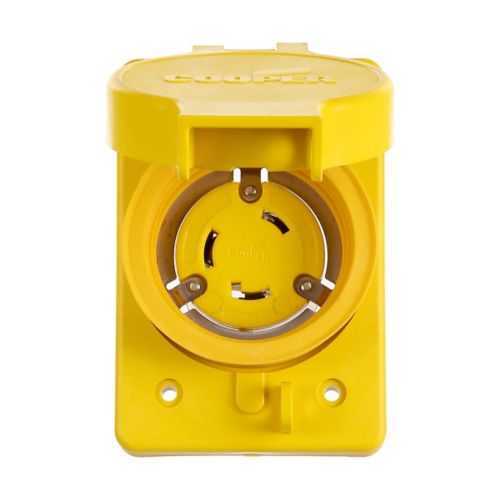

Eaton L630RW Locking Receptacle - IP66
Part Number: L630RW
Quick Summary
Eaton L630RW Locking Receptacle is a watertight power connection for industrial equipment in harsh environments. Moisture, dust, and washdowns often jeopardize connections, driving downtime and safety concerns; this receptacle is designed to resist those conditions. It carries cULus Listed, UL Listed, and CSA certified approvals, with IP66/NEMA 4X ratings for rugged environments to support compliant installations. Backed by a back wiring design and a durable thermoplastic body, it delivers fast, reliable terminations while reducing field errors. This combination helps maintenance teams boost uptime and procurement teams simplify sourcing for industrial locking devices.
Product Information
Extended Description
L630RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 250V, Back wiring, Yellow, Single, Watertight, L6-30, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L630RW
UPC
040893687667
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
Federal Specifications Classification W-C375
Certifications
cULus Listed NOM UL Listed CSA certified
Amperage Rating
30A
NEMA configuration
L6-30
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
250 V
Environmental resistance
NEMA 12 NEMA 4X NEMA 3 IP66 NEMA 3R NEMA 4
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature → Business Impact → Application: The locking mechanism provides a secure, vibration-resistant connection, reducing accidental unplugging in heavy equipment like motors and pumps, which translates to lower maintenance costs and less production interruption in manufacturing lines. Application: ideal for L6-30 two-pole, three-wire configurations in industrial enclosures where reliability matters. Feature → Business Impact → Application: Watertight performance with IP66 and NEMA 4X compatibility shields against water, dust, and washdowns, ensuring compliance and long service life in outdoor or corrosive environments. Application: suitable for outdoor panels, washdown zones, and rugged industrial spaces. Feature → Business Impact → Application: Glass-filled nylon face/body and nickel-plated bronze contacts deliver corrosion resistance and durability, extending component life and reducing replacement cycles in harsh chemical or humid settings. Application: preferred for harsh environments with frequent exposure to moisture or cleaning processes. Feature → Business Impact → Application: Back wiring and clear torque guidance (14-16 lbf-in for #10-14 AWG; 20 lbf-in for #8 AWG) enable quick, consistent terminations, lowering installation labor and rework costs. Application: installation in control cabinets and field junctions where fast, repeatable wiring is critical. Feature → Business Impact → Application: Federal Specifications and multi-certifications (W-C375, cULus, UL, CSA) simplify procurement and regulatory compliance, reducing risk and audit time. Application: procurement-grade equipment in regulated facilities.
