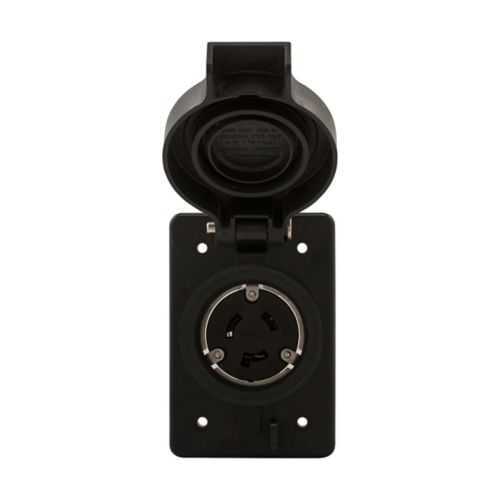

Eaton L720RW Watertight Locking Receptacle - IP66/NEMA 4X
Part Number: L720RW
Quick Summary
Eaton L720RW watertight locking receptacle provides reliable power connections for industrial and outdoor environments. Moisture ingress and vibration can cause downtime and faulty connections in harsh sites, which this device is designed to prevent. It carries RoHS compliance, is cULus listed, and is rated for IP66 and NEMA 4X environments, delivering rugged performance. With back wiring and a color-coded yellow enclosure, it supports 14-8 AWG circuits and 277V systems, helping facilities reduce maintenance costs and improve safety. This combination of robust construction and compatibility makes it a practical choice for demanding industrial installations and outdoor applications.
Product Information
Extended Description
L720RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 277V, Back wiring, Yellow, Single, Watertight, L7-20, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L720RW
UPC
040893687636
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
L7-20
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
277 V
Environmental resistance
IP66 NEMA 4 NEMA 3R NEMA 3 NEMA 12 NEMA 4X
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature → Business Impact → Application: Watertight locking receptacle design prevents moisture and dust ingress, reducing corrosion and contact resistance, which translates to fewer nuisance outages and extended service life for industrial equipment in wet locations. Application: Outdoor power distribution, hazardous-area facilities, and maintenance yards where exposure to rain and spray is common. Feature → Business Impact → Application: Glass-filled nylon face/body with thermoplastic construction delivers high impact resistance and chemical compatibility, lowering replacement costs in tough environments. Application: Heavy-duty industrial facilities, manufacturing floors, and outdoor panels exposed to weather. Feature → Business Impact → Application: Nickel-plated bronze contacts provide reliable, low-resistance connections even after repeated mating cycles, improving push-in reliability and reducing contact wear. Application: Lifting stations, motors, and pumps that undergo frequent cycling. Feature → Business Impact → Application: Back wiring with a 6.75 in length, 4 in height, and 4.25 in width creates a compact, versatile footprint that simplifies panel layouts and allows easier retrofits. Application: Renovations and new builds where space is at a premium. Feature → Business Impact → Application: Locking receptacle with 20A rating at 277V (L7-20 configuration) supports secure, code-compliant connections for single-phase, three-wire systems, reducing accidental unplugging and improving operator safety. Application: Outdoor feeders, stage lighting, and industrial equipment hookups in wet environments. Feature → Business Impact → Application: RoHS compliance and cULus listing ensure regulatory alignment and safer supply chains, minimizing compliance risk and enhancing procurement confidence. Application: Any facility requiring formal certification trails for electrical components in North America.
Get a Quick Quote for a Eaton L720RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L720RW?
Enquire Now
FAQs
The L720RW supports back wiring with allowable wire sizes of #14-8 AWG. Its back-wiring method and 6.75 in length by 4 in height enclosure design simplify panel layout and wiring access, making it well-suited for new installations or retrofits in industrial environments with limited space.
The L720RW is IP66 and NEMA 4X rated, offering robust protection against dust and water intrusion in harsh environments. It is RoHS compliant and cULus listed, ensuring regulatory compliance and safety for North American installations, which reduces risk during audits and improves procurement confidence.
Best suited for outdoor and wet-location power connections, the L720RW supports L7-20 277V configurations for two-pole, three-wire systems. It is ideal for outdoor equipment hookups, maintenance yards, and industrial machinery that requires secure, watertight power connections while enduring humidity and washdowns.
The locking receptacle secures the plug-in connection, preventing accidental disconnection in environments with vibration or movement. This reduces arcing risk and downtime, improves operator safety, and ensures a stable power supply for critical equipment such as pumps, motors, and outdoor lighting.
With corrosion-resistant nickel-plated bronze contacts and a durable thermoplastic body, the L720RW offers extended service life in tough environments. The watertight seal minimizes ingress-related wear, reducing maintenance frequency and replacement costs, while RoHS and cULus certifications support long-term compliance and supplier reliability.
