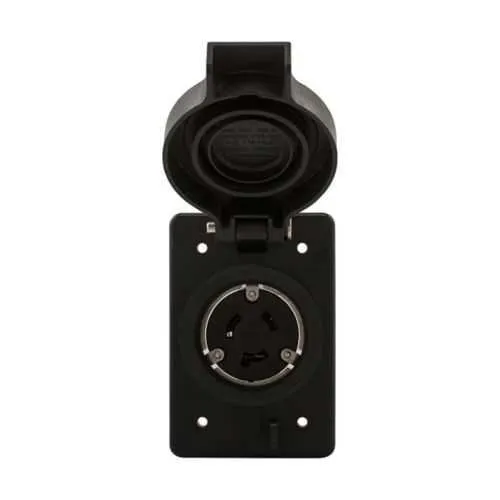

Eaton L720RWBK Watertight Locking Receptacle - IP66
Part Number: L720RWBK
Quick Summary
Eaton L720RWBK watertight locking receptacle enables reliable power connections for industrial equipment in harsh environments. Operators face ingress, corrosion, and wiring mistakes in outdoor or washdown areas, and this unit mitigates those risks with sealed construction and back-wiring. It carries RoHS compliance, cULus listing, and IP66 protection along with compatible NEMA ratings (12, 4, 4X, 3R, 3), safeguarding performance across wet, dusty, and temperature-variable settings. Designed for L7-20, 277 V, and 20 A two-pole three-wire connections, it helps OEMs and maintenance teams reduce downtime while simplifying installation and field servicing in demanding facilities.
Product Information
Extended Description
L720RWBK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 277V, Back wiring, Black, Single, Watertight, L7-20, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L720RWBK
UPC
032664709623
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
L7-20
Number Of Poles
Two-pole
Number of wires
3 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
277 V
Environmental resistance
IP66 NEMA 12 NEMA 4 NEMA 4X NEMA 3R NEMA 3
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: IP66/IP-rated watertight construction provides advanced ingress protection; Business Impact: protects internal connections from moisture, dust, and washdown spray, reducing unplanned downtime and repair costs; Application: outdoor equipment, washdown areas, and harsh factory environments where ingress protection is essential. This design also supports easy back-wire access for faster terminations and more reliable electrical interfaces. Feature: Back-wiring capability for #14-8 AWG conductors; Business Impact: accelerates installation and simplifies wiring diagrams, lowering labor hours and error rates; Application: control panels, portable equipment, and fixed installations where quick, clean terminations are valuable. Feature: 20A, 277V, L7-20 two-pole three-wire configuration; Business Impact: matches common industrial load profiles and provides a standardized locking interface for motors and power tools; Application: industrial machinery, conveyors, and pumps. Feature: Nickel-plated bronze contacts with a thermoplastic body; Business Impact: ensures durable, low-resistance connections and corrosion resistance in humid or salty environments; Application: long-life installations where contact reliability directly affects uptime. Feature: Glass-filled nylon face with a durable black finish; Business Impact: enhances impact resistance and panel visibility while RoHS compliance supports regulatory and sustainability goals; Application: OEM housings and rugged enclosures in tough environments.
Get a Quick Quote for a Eaton L720RWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L720RWBK?
Enquire Now
FAQs
Yes. The L720RWBK is designed for back wiring with #14-8 AWG conductors. It supports straightforward termination in confined spaces, aided by its compact footprint and clearly labeled wiring path. For best results, follow the torque guidelines (14-16 lbf-in for #10-14 AWG; 20 lbf-in for #8 AWG) to ensure a reliable, vibration-tolerant connection.
This receptacle carries IP66 environmental protection and NEMA compatibility (12, 4, 4X, 3R, 3). It is RoHS compliant and cULus listed, which supports safety, reliability, and regulatory alignment in industrial facilities and outdoor installations.
Absolutely. The unit is rated for 277 V and 20 A in a two-pole, three-wire configuration (L7-20), making it compatible with common industrial motors, pumps, and portable equipment that require locking receptacles for secure connections in dynamic work environments.
Plan periodic inspection of the locking mechanism, seals, and contacts. Thanks to nickel-plated bronze contacts and a thermoplastic body, the receptacle offers longevity and corrosion resistance. If ingress protection is compromised or wiring shows signs of wear, replace the receptacle to maintain uptime and safety.
By combining watertight IP66 protection, rugged materials, and back-wiring efficiency, the L720RWBK lowers maintenance time, reduces field repair costs, and minimizes downtime. Compatibility with RoHS and robust NEMA ratings further enhance reliability and regulatory compliance, delivering a favorable long-term total cost of ownership for industrial deployments.
