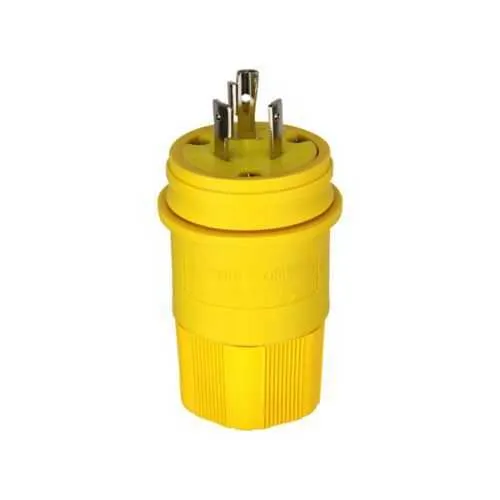

Eaton L730PW Locking Plug - IP67, 277V
Part Number: L730PW
Quick Summary
The Eaton L730PW Locking Plug provides watertight, secure power connections for industrial equipment in harsh environments. Users often contend with water ingress, corrosion, and accidental disconnections in outdoor or washdown locations. IP67 protection, RoHS compliance, and cULus listing ensure reliable performance across challenging installations. This design also supports standard back wiring and #18-10 AWG conductors, delivering safer terminations. By aligning with these certifications and a robust material set, it reduces downtime, simplifies compliance testing, and enables scalable power distribution across facilities.
Product Information
Extended Description
L730PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 277V, Back wiring, Yellow, Steel, Watertight, L7-30, Two-pole, Three-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L730PW
UPC
040893641805
Product Length/Depth
6.75 in
Product Height
3.75 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L7-30
Number Of Poles
Two-pole
Number of wires
3 Grounding
Voltage rating
277 V
Environmental resistance
NEMA 6 NEMA 6P NEMA 4X NEMA 4 IP67
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature: IP67 watertight housing and Santoprene seal provide ingress protection for outdoor enclosures. Business Impact: minimizes water ingress and corrosion, reducing fault-driven maintenance costs. Application: outdoor pumps, washdown stations, and outdoor control panels. Feature: NEMA L7-30 two-pole, three-wire configuration rated 30A at 277V with back wiring for #18-10 AWG. Business Impact: straightforward field terminations and safer wiring with a clear grounding path, supporting standard industrial power circuits. Application: industrial machinery, conveyors, and temporary power receptacles. Feature: Nickel-plated brass contacts, nylon face/body, and Santoprene sealing for durability and corrosion resistance. Business Impact: low contact resistance and extended service life in harsh environments, reducing replacement costs. Application: damp or outdoor environments where reliable conductivity is critical. Feature: RoHS compliant and cULus listed; environmental resistance to NEMA 6/6P/4X/4. Business Impact: regulatory compliance for global deployments and safer, compliant product onboarding. Application: panels and enclosures in regulated facilities and outdoor installations. Feature: Cord diameter range 0.43-1.15 in; back wiring method; footprint 6.75 in Ă— 4.25 in Ă— 3.75 in; weight 1.025 lb; yellow color for visibility. Business Impact: flexible wiring options, easy installation, and quick visual identification to improve workflow and safety. Application: retrofit projects and spaces with varied cord sizes.
Get a Quick Quote for a Eaton L730PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L730PW?
Enquire Now
FAQs
The L730PW supports back wiring with #18-10 AWG conductors. Its two-pole, three-wire configuration (L7-30) accepts standard industrial wiring practices, enabling quick terminations and a secure grounding path for reliable operation in demanding environments.
Key ratings include 30A amperage, 277V voltage, and IP67 ingress protection. The device is designed for industrial use with a two-pole, three-wire L7-30 configuration, providing a rugged, weather-resistant connection suitable for wet or dusty locations.
Yes. With IP67 protection and UV-visible yellow housing, the L730PW is well-suited for outdoor and washdown environments. Its watertight design and locking mechanism help prevent unplugging in demanding installations like outdoor control panels and equipment enclosures.
The L730PW is RoHS compliant and cULus listed, ensuring regulatory compliance across multiple regions. This is important for safety, material restrictions, and acceptance in global manufacturing facilities, reducing compliance risk during audits and deployments.
The combination of IP67 sealing, durable nickel-plated brass contacts, and Santoprene sealing reduces ingress-related maintenance and replacement costs. The back-wiring design speeds terminations, lowering labor time during panel upgrades and expansions, contributing to a faster return on investment through improved uptime.
