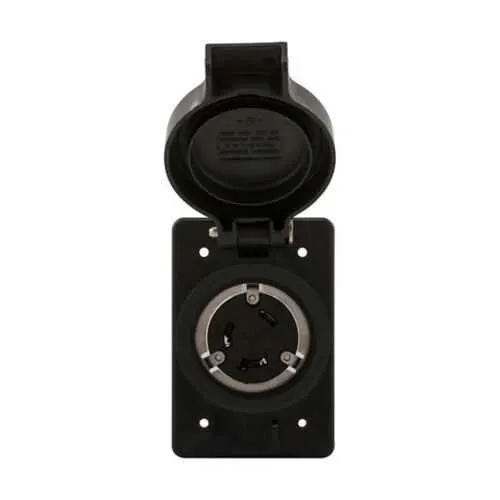

Eaton L730RW Watertight Locking Receptacle - IP66/NEMA 4X
Part Number: L730RW
Quick Summary
The Eaton L730RW watertight locking receptacle delivers secure, high-amperage power for outdoor and harsh-environment equipment. Maintenance teams often struggle with loose connections and water ingress that disrupt uptime and increase servicing costs. This locking receptacle carries RoHS compliance and NOM cULus listing, with an IP66-rated housing and multiple NEMA configurations (3, 3R, 4, 4X, 12) to survive rain, dust, and washdown. By supporting #14-8 AWG back wiring and a durable thermoplastic body, it simplifies installations and reduces terminal fatigue on field labor. The yellow color enhances visibility in cluttered environments, while the nickel-plated bronze contacts deliver reliable conductivity in industrial power systems. This combination offers durable, compliant power distribution for daily industrial operations.
Product Information
Extended Description
L730RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 30A, Industrial, 277V, Back wiring, Yellow, Single, Watertight, L7-30, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L730RW
UPC
040893687674
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Amperage Rating
30A
NEMA configuration
L7-30
Number Of Poles
Two-pole
Number of wires
3 Grounding
Receptacle type
Locking
Voltage rating
277 V
Environmental resistance
IP66 NEMA 3 NEMA 4 NEMA 4X NEMA 12 NEMA 3R
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
Feature: 30A at 277V, L7-30, two-pole, three-wire locking receptacle. Business impact: supports high-load equipment with a secure locking connection that resists accidental disconnection, reducing downtime in critical machinery. Application: outdoor motors, pumps, and industrial control panels located in washdown or dusty environments. Feature: IP66 and multiple NEMA ratings (3, 3R, 4, 4X, 12). Business impact: provides robust protection against dust, water ingress, and corrosion, extending service life and lowering maintenance costs. Application: outdoor enclosures, wet locations, and harsh indoor spaces. Feature: Thermoplastic housing with glass-filled nylon face/body and nickel-plated bronze contacts. Business impact: durable, chemical-resistant construction and reliable electrical contact, improving long-term performance and reducing replacement cycles. Application: demanding industrial settings with exposure to chemicals or frequent cleaning. Feature: Back wiring for #14-8 AWG and front-accessible terminals. Business impact: simplifies field terminations, speeds installation, and reduces labor costs while maintaining a secure, code-compliant connection. Application: rapid deployment in production lines or temporary power setups. Feature: RoHS compliant and NOM cULus Listed. Business impact: ensures regulatory compliance and eligibility for regulated projects, easing procurement and qualification. Application: regulated facilities, manufacturers, and service contractors seeking certified equipment. Feature: Color yellow for high visibility and rugged industrial design. Business impact: minimizes misconnection risk in dense or outdoor environments, improving safety and efficiency on the floor. Application: instrument cabinets, outdoor outlets, and equipment panels where quick identification matters.
Get a Quick Quote for a Eaton L730RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L730RW?
Enquire Now
FAQs
The L730RW supports back wiring for #14-8 AWG conductors, enabling a clean termination with reduced field terminations. Installers gain faster panel integration and fewer terminal issues in tight spaces. For best results, follow the included torque recommendations, ensure terminals are clean, and secure strain relief to prevent conductor movement during operation.
This receptacle is RoHS compliant and NOM cULus Listed, aligning with regional safety and environmental requirements. It also provides IP66 environmental resistance and supports NEMA 3, 3R, 4, 4X, and 12 configurations, making it suitable for outdoor, washdown, and harsh industrial settings while maintaining regulatory compliance.
With IP66 and NEMA 3/3R/4/4X/12 ratings, the L730RW excels in outdoor installations, washdown areas, dusty manufacturing floors, and other harsh environments. Its yellow thermoplastic housing enhances visibility, and the locking mechanism ensures secure connections in vibration-prone environments such as conveyors, pumps, and outdoor equipment.
Begin by confirming the outlet’s L7-30 two-pole, three-wire configuration and power rating of 30A at 277V. Use #14-8 AWG wire with back-wiring and secure a compliant strain relief. Mount to a compatible box, tighten fittings to IP66 requirements, and verify the locking receptacle engages fully with plugs designed for L7-30 locking outlets to prevent accidental disconnection.
The locking mechanism and watertight seal reduce plug-disconnect events and water ingress, lowering unplanned downtime. Its durable thermoplastic housing and corrosion-resistant contacts extend service life in washdown areas, reducing replacement cycles. Compliance with RoHS and NOM cULus can streamline procurement and asset qualification for regulated facilities, delivering measurable total-cost-of-ownership improvements.
