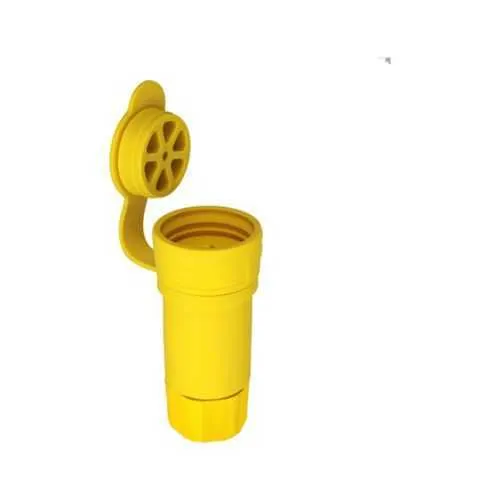

Eaton L820CW Watertight Locking Connector - IP67
Part Number: L820CW
Quick Summary
The Eaton L820CW watertight locking connector is designed for robust industrial power connections in harsh environments. It delivers reliable, moisture- and dust-resistant performance essential for wet plant floors, outdoor equipment, and heavy machinery. Engineers often wrestle with moisture intrusion, electrical arcing, and connectors that loosen under vibration, leading to downtime. The L820CW carries IP67 protection and NEMA 6P/4X compatibility, along with RoHS compliance and cULus listing, ensuring safety and regulatory alignment across global projects. This solution also supports back wiring with #18-10 AWG conductors, enabling faster terminations and cleaner panels. For procurement and maintenance teams, the combination of rugged durability, standardized wiring, and a compact footprint translates to lower installation costs and longer service intervals in demanding environments.
Product Information
Extended Description
L820CW Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 480V, Back wiring, Yellow, Steel, Watertight, L8-20, Two-pole, Three-wire, Santoprene thermoplastic elastomeric, 0.36 to 0.84 in, IP67
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
L820CW
UPC
040893641850
Product Length/Depth
6.75 in
Product Height
3.83 in
Product Width
4.37 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
Degree of protection
IP67
NEMA configuration
L8-20
Number Of Poles
Two-pole
Number of wires
3 Grounding
Torque rating
14-16 lbf-inch
Voltage rating
480 V
Environmental resistance
IP67 NEMA 6P NEMA 4X NEMA 6 NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.36-0.84 in
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Feature: Watertight locking design. Benefit: Ingress protection against water, dust, and vibration reduces field failures and maintenance needs. Application: Ideal for outdoor equipment, washdown areas, and harsh industrial floors where reliability is critical. Feature: Back wiring compatibility with #18-10 AWG. Benefit: Simplified terminations, cleaner panels, and faster installation times. Application: Control panels and equipment assemblies with limited access and tight wiring spaces. Feature: 20A, 480V with L8-20 two-pole, three-wire configuration. Benefit: Supports common industrial loads with secure, code-compliant performance. Application: Heavy-duty equipment and power distribution in manufacturing facilities. Feature: Nylon body with nickel-plated brass contacts and Santoprene seals. Benefit: Durable, corrosion-resistant construction that withstands rugged environments and prolonged use. Application: Industrial environments subject to moisture, chemicals, and mechanical stress. Feature: RoHS compliant and cULus listed. Benefit: Regulatory alignment reduces risk and streamlines procurement across markets. Application: Global deployments requiring certified electrical components.
