Eaton L820RW Watertight Locking Receptacle - cULus Listed
Part Number: L820RW
Quick Summary
The Eaton L820RW watertight locking receptacle delivers reliable 480 V power for industrial equipment. In harsh industrial environments, moisture, dust, and back-wiring introduce downtime and maintenance challenges that erode productivity. It carries RoHS compliance and a cULus listing, with IP66/NEMA 4X protection to meet safety and reliability benchmarks in wet locations. For design engineers and procurement teams, the L820RW simplifies specification, stocking, and maintenance planning, reducing risk during upgrades and expansions. Its amber-yellow color aids fast identification in crowded panels, while the rugged construction supports long-term service in motors, conveyors, and other automation applications.
Product Information
Extended Description

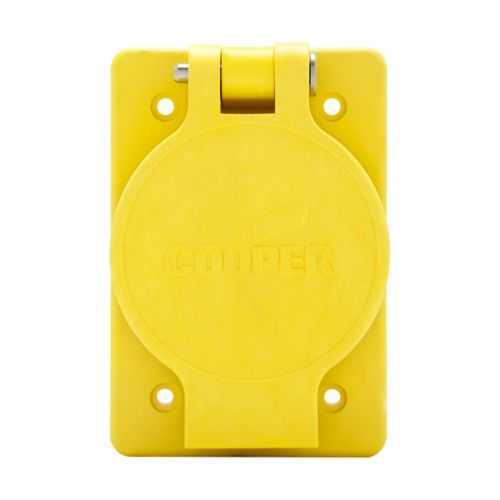

L820RW Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 480V, Back wiring, Yellow, Single, Watertight, L8-20, Two-pole, Three-wire, Thermoplastic
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
L820RW
UPC
040893687643
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
L8-20
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
480 V
Environmental resistance
NEMA 3R NEMA 12 IP66 NEMA 4 NEMA 4X NEMA 3
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic
Special features
Watertight
Type
Locking receptacle
The watertight construction protects connections from moisture, dust, and splash exposure, reducing corrosion and unplanned downtime while ensuring consistent current delivery for 20 A loads in demanding facilities. This design translates into measurable uptime gains and safer maintenance routines in motor control centers and outdoor installations. The locking receptacle configuration (L8-20) with two-pole, three-wire grounding provides a secure mating connection, preventing accidental disconnections during vibration or heavy load cycles, which lowers maintenance calls and equipment damage. Back wiring supports fast, clean terminations with wire sizes from #14 to #8 AWG, streamlining field installs and reducing switchgear footprint. The rugged thermoplastic body and glass-filled nylon face offer chemical resistance and long service life in harsh environments, while the nickel-plated bronze contacts enhance conductivity and longevity. Color-coding in yellow improves visibility during panel updates and service. The design also supports compatibility with standard industrial enclosures and straightforward installation practices, aiding procurement with clear specifications and consistent performance expectations.
Get a Quick Quote for a Eaton L820RW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L820RW?
Enquire Now
FAQs
Install using back wiring with #14-8 AWG conductors. Follow torque specs: 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG. The unit measures 6.75 in length, 4 in height, and 4.25 in width, fitting standard enclosures. Use the yellow face for high visibility and ensure proper strain relief to maintain a watertight seal.
Yes. The L820RW is designed for wet environments with IP66 and NEMA 4/4X (also NEMA 3 and 12) environmental protection. It is RoHS compliant and cULus listed, meeting safety and environmental standards. This combination supports compliant installation in food processing, water treatment, and outdoor automation equipment while reducing regulatory risk.
The receptacle provides a 20 A, 480 V rating in an L8-20, two-pole, three-wire configuration. It uses back wiring for #14-8 AWG conductors and features a locking type receptacle for secure connections. This enables reliable power delivery to industrial motors, pumps, and conveyors while maintaining a compact footprint.
Locking ensures the plug remains mated even amid vibration, equipment movement, or accidental tugs, significantly reducing unscheduled outages. The two-pole, three-wire grounding design supports safe power transmission, while the rugged thermoplastic body and nickel-plated bronze contacts preserve performance over time. In high-cycle applications, this translates to fewer maintenance calls and safer operation.
With a length of 6.75 in, width of 4.25 in, and height of 4 in, the unit fits standard industrial enclosures. The body is glass-filled nylon and thermoplastic, offering chemical resistance and durability in tough environments. The nickel-plated bronze contacts provide reliable conductivity, and the yellow color improves visibility during panel wiring and service.
