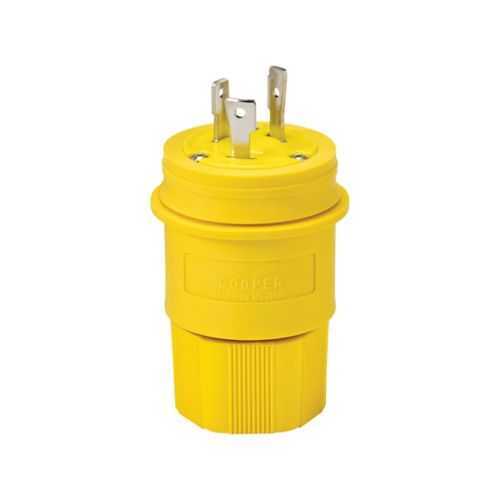

Eaton L830PW Watertight Locking Plug - IP67
Part Number: L830PW
Quick Summary
The Eaton L830PW watertight locking plug provides secure, back-wired power connections for industrial equipment. In harsh environments, moisture ingress and vibration can drive downtime and costly maintenance; this locking plug is designed to resist those challenges with a robust locking mechanism and reliable connections. This device carries RoHS compliance, is cULus listed, and is IP67 rated, delivering durable performance in demanding installations. By combining a back-wiring method with a rugged NEMA L8-30 configuration and a bright yellow body for visibility, it supports faster wiring, easier inspection, and long-term reliability—all while aligning with common procurement standards for industrial power connectors and Arrow Hart devices.
Product Information
Extended Description
L830PW Eaton: Eaton Arrow Hart watertight locking plug, #18-10 AWG, 30A, Industrial, 480V, Back wiring, Yellow, Steel, Watertight, L8-30, Two-pole, Three-wire, Santoprene, 0.43 to 1.15 in, IP67
Product Name
Eaton Arrow Hart watertight locking plug
Catalog Number
L830PW
UPC
040893641812
Product Length/Depth
5.42 in
Product Height
2.49 in
Product Width
2.49 in
Product Weight
1.025 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Amperage Rating
30A
Degree of protection
IP67
NEMA configuration
L8-30
Number Of Poles
Two-pole
Number of wires
Grounding 3
Torque rating
20 lbf-inch
Voltage rating
480 V
Environmental resistance
NEMA 6P NEMA 4 IP67 NEMA 6 NEMA 4X
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated brass
Application
Industrial
Cord diameter
0.43-1.15 in
Design type
Watertight locking plug
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene
Special features
Watertight
Type
Locking plug
Feature → Business Impact → Application: IP67 watertight construction protects against dust and water ingress, minimizing corrosion risk and downtime in wet or dusty environments; ideal for outdoor enclosures or wash-down areas where reliability is critical. Feature → Business Impact → Application: 30A, 480V rating with NEMA L8-30 configuration supports high-power loads in motors and equipment, reducing the need for parallel connections and simplifying panel design. Feature → Business Impact → Application: Back wiring method enables faster field wiring and secure terminations, improving install speed and reducing field errors in control panels and junction boxes. Feature → Business Impact → Application: Nylon face/body with Santoprene seals and nickel-plated brass contacts deliver durable, corrosion-resistant connections that maintain conductivity over time, lowering maintenance costs. Feature → Business Impact → Application: Yellow color and locking plug design reinforce correct engagement and vibration resistance in dynamic environments, improving safety and preventing accidental disconnections. Feature → Business Impact → Application: RoHS compliant and cULus listed, supporting regulatory compliance and supplier qualification while ensuring compatibility with industry standards for industrial automation and electrical components.
Get a Quick Quote for a Eaton L830PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton L830PW?
Enquire Now
FAQs
To install the L830PW, first ensure power is off and wires are prepared to #18-10 AWG. Remove the cover, insert conductors into the back-wiring terminals according to the font-facing diagram, tighten to the specified torque, and reseal the housing. The back-wiring method provides a secure, vibration-resistant termination suitable for industrial panels and wet locations.
The L830PW features IP67 protection for water and dust resistance, a NEMA L8-30 configuration, and two-pole with grounding. It is cULus listed and RoHS compliant, ensuring regulatory alignment for industrial installations and high-reliability performance in harsh environments.
Yes. The L830PW is rated for 480 V and has a 30 A amperage rating, configured as a two-pole with grounding (L8-30). This rating supports many industrial motors and power feeders while maintaining a compact footprint and reliable locking engagement.
The locking design prevents accidental disconnection in vibration or busy environments, reducing unplanned outages. Combined with watertight seals and back-wired terminations, it delivers faster wiring, easier inspection, and lower maintenance costs over the life of the installation, especially in outdoor or wash-down areas.
Industries with harsh conditions such as manufacturing, material handling, outdoor equipment, and processing environments benefit from IP67 protection, rugged construction, and the L8-30 two-pole configuration. It’s well-suited for industrial automation, control panels, and equipment that requires reliable, quick-connect power in demanding settings.
