Eaton LB100M Condulet Form 5 Outlet Body - NEC/CEC
Part Number: LB100M
Quick Summary
LB100M conduit outlet body from Eaton provides rugged Form 5 outlets for 1-inch conduits in industrial enclosures. The challenge of securing durable, code-compliant conduit fittings in tight electrical spaces is a common hurdle for install teams and maintenance crews. This LB100M is NEC/CEC compliant and UL certified for Form 5 Condulet applications in ordinary/non-hazardous locations, ensuring reliable performance across critical environments. Built from malleable iron with a compact LB shape, it offers consistent spacing and easier enclosure routing. The combination of sturdy materials, standardized dimensions, and verified certifications translates to faster installations, lower maintenance costs, and improved long-term system integrity for commercial and process industries.
Product Information
Extended Description

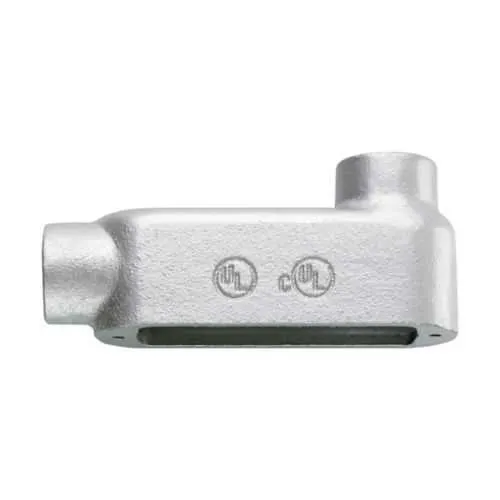

LB100M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LB shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LB100M
UPC
782274755953
Product Length/Depth
6.2 in
Product Height
2.65 in
Product Width
1.8 in
Product Weight
1.43 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Trade size
1"
Material
Malleable iron
Eaton Crouse-Hinds LB100M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LB100M
Constructed from malleable iron in the LB Form 5 configuration, the LB100M conduit outlet body provides rugged structural strength for conduit terminations. This durability translates into reduced risk of damage during installation and service, improving long-term enclosure integrity and reducing rework in demanding environments. It is compatible with a 1-inch trade size, aligning with widely used conduit fittings and simplifying compatibility across form 5 accessory families. Form 5 LB bodies optimize routing inside compact enclosures, helping technicians maintain orderly terminations in tight spaces. The standardized dimensions support faster, more predictable installations and minimize field adjustments that drive schedule slippage and labor costs. Used in control panels, junction boxes, and industrial cabinets, this LB100M ensures reliable performance where form factors and spaces drive layout decisions. Compliance and certification are built into the LB100M’s value proposition. NEC/CEC compliance and UL certification provide regulatory confidence, while ordinary/non-hazardous area classification clarifies best-use environments. This reduces project risk, accelerates approvals, and simplifies procurement by offering a single, tested solution for non-hazardous industrial installations. The compact dimensions and weight support practical handling and fit. With 6.2 in length, 2.65 in height, 1.8 in width, and a 1.43 lb mass, installation crews can position and fasten the body with predictable effort. The 1-inch trade size remains a standard, enabling seamless integration with common conduits and connectors across Eaton/Crouse-Hinds Form 5 families. Access to Eaton’s digital resources speeds design and procurement. The LB100M is documented in 3D CAD drawings, Form 5 catalogs, UL certification reports, and the official specification sheet, enabling engineers to validate fit before ordering. In practice, this translates to shorter lead times, lower risk of mismatches, and improved project ROI in plant modernization and new builds.
