Eaton LB105 Condulet Series 5 Conduit Outlet - NEC/CEC
Part Number: LB105
Quick Summary
LB105 conduit outlet body from Eaton delivers rugged protection and easy access for rigid/IMC wiring in industrial installations. Engineers often face installation complexity, space constraints, and compatibility gaps between conduit systems that drive project delays. It carries NEC/CEC standards and UL certification for ordinary/non-hazardous locations, helping you meet code obligations with confidence. Copper-free aluminum construction and a 4-inch trade size support fast, durable installations while keeping lifecycle costs in check. This combination makes it ideal for panel boards, switchgear, and in-line cabinets where reliability and quick field service matter.
Product Information
Extended Description

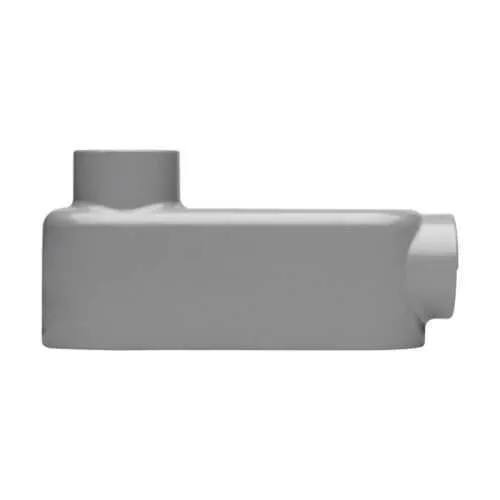

LB105 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LB shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LB105
UPC
784564140104
Product Length/Depth
15.46 in
Product Height
7.2 in
Product Width
5.42 in
Product Weight
10 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Conduit type
Rigid/IMC
Trade size
4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LB105
LB105 features the LB shape and accepts 4" trade-size rigid/IMC conduits in a copper-free aluminum enclosure. This directly reduces weight and corrosion risk, enabling easier handling and long-term durability on busy job sites. The generous internal footprint and precise dimensions streamline interconnections with adjacent components, cutting field mounting time and rework in confined spaces. With ordinary/non-hazardous location classification and NEC/CEC compliance, it delivers regulatory assurance and safer installation, while UL certification supports audits and Canada/US use. Copper-free aluminum minimizes weight and maintenance costs, contributing to lower total cost of ownership over the equipment lifecycle. Compatibility with Condulet Series 5 accessories ensures consistent mounting footprints across projects, simplifying procurement and stock management for distributors and contractors.
Get a Quick Quote for a Eaton LB105
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB105?
Enquire Now
FAQs
When installing the LB105, verify compatibility with rigid/IMC conduits and ensure the 4" trade size matches your system. Plan for the LB shape in enclosure layouts, maintain required working clearances, and use compatible Condulet Series 5 accessories to preserve mounting footprints. The unit’s copper-free aluminum construction supports quicker handling and serviceability in typical industrial environments.
Key specs include the catalog number LB105, length 15.46 in, height 7.2 in, width 5.42 in, and weight 10 lb. Material is copper-free aluminum with a rigid/IMC conduit type. It is an LB-shaped conduit outlet body with a 4" trade size, NEC/CEC compliance, and a UPC of 784564140104, suitable for ordinary/non-hazardous locations.
LB105 is classified for Ordinary/Non-Hazardous Locations under NEC/CEC standards. It is not designated for hazardous environments; for outdoor or classified locations, verify whether additional enclosure protection or different product ratings are required to meet your specific application and local codes.
LB105 carries NEC/CEC compliance and UL certification for ordinary/non-hazardous locations, plus UL-listed documentation for Canada and the US. These certifications support regulatory approvals, reduce audit risk, and help you demonstrate code compliance during inspections and project handoffs.
Copper-free aluminum reduces weight and corrosion risk, delivering easier handling and lower maintenance demands over the product lifecycle. The durable enclosure, along with UL/NEC/CEC compliance, minimizes rework and downtime, contributing to faster project commissioning and improved uptime in panel and machinery installations.
