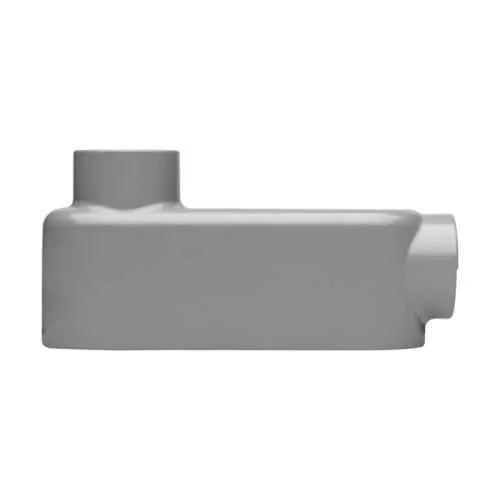

Eaton LB15 conduit outlet body - 1/2" Rigid/IMC Aluminum NEC/CEC
Part Number: LB15
Quick Summary
LB15 conduit outlet body is a robust termination for 1/2 inch rigid or IMC conduit used in industrial control panels. Engineers often contend with misaligned installations, heavier hardware, and corrosion-prone components that slow projects and raise maintenance costs. This Condulet Series 5 product delivers NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous locations, with Canadian certification literature available. By combining copper-free aluminum with a compact LB shape, it enables faster installs, reduced lifecycle costs, and reliable performance in demanding environments while integrating smoothly with existing Condulet Series 5 fittings and field wiring methods.
Product Information
Extended Description
LB15 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LB shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LB15
UPC
784564140012
Product Length/Depth
4.24 in
Product Height
2.11 in
Product Width
1.31 in
Product Weight
0.26 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Conduit type
Rigid/IMC
Trade size
1/2"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LB15
Feature copper-free aluminum construction → Business Impact: Provides corrosion resistance and lighter weight for easier handling and long-term durability in harsh environments. Application: Ideal for panel terminations and outdoor enclosures where weight savings boost installation speed and reduce fatigue on field technicians. Feature LB shaped body → Business Impact: Easier routing around equipment and reduced clearance requirements, accelerating enclosure layout in tight control rooms. Application: Common in localized wiring runs inside electrical cabinets and equipment housings. Feature 1/2" trade size and rigid/IMC compatibility → Business Impact: Aligns with standard conduit fittings and strong mechanical protection for defined service paths. Application: Seamless integration with 1/2" rigid conduits in harsh industrial settings, improving install consistency. Feature Series 5 compatibility → Business Impact: Streamlined procurement and interoperability with other Crouse-Hinds components, lowering vendor management. Application: Suitable for upgrade projects and replacements in existing Eaton Condulet ecosystems. Feature NEC/CEC compliance and Ordinary/Non-Hazardous classification → Business Impact: Ensures regulatory alignment and safe operation in common industrial environments. Application: Certified for typical plant locations, reducing compliance overhead on projects. Feature compact dimensions and weight (4.24 in L, 2.11 in H, 1.31 in W, 0.26 lb) → Business Impact: minimizes space usage and simplifies field installation with reduced risk of interference. Application: Field terminations in compact control panels and equipment housings.
Get a Quick Quote for a Eaton LB15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB15?
Enquire Now
FAQs
Install LB15 by aligning the conduit with the Series 5 conduit outlet body’s tapping and mounting holes, insert the 1/2 in rigid/IMC conduit straight, and secure with standard hardware per Eaton’s specification sheet. Ensure proper clearance and tighten to the recommended torque to maintain enclosure integrity and NEMA/IEC compliance.
LB15 is NEC/CEC compliant and designed for Ordinary/Non-Hazardous locations. Canadian certification literature is available for the Series 5 Condulet line, supporting market-specific compliance and field acceptance in North American facilities.
Yes. The copper-free aluminum construction provides corrosion resistance and lightweight handling, improving lifecycle performance and ease of installation in typical industrial environments without sacrificing mechanical strength for 1/2 inch conduit terminations.
LB15 measures 4.24 inches in length, 2.11 inches in height, and 1.31 inches in width, with a product weight of 0.26 pounds, designed for a 1/2 inch trade size and compatibility with rigid/IMC conduit.
Download the Eaton LB15 specification sheet from the official Eaton site, along with the Crouse-Hinds Series 5 brochure and catalog pages. Canadian certification PDFs are available in the Condulet Series 5 documentation set for regulatory review.
