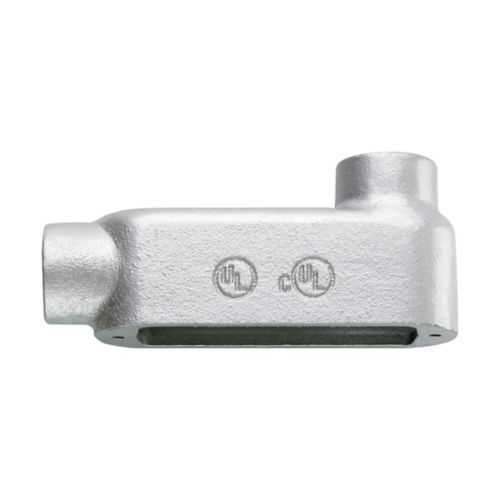

Eaton LB150M Condulet Form 5 - 1-1/2 in NEC/CEC
Part Number: LB150M
Quick Summary
LB150M Condulet Form 5 conduit outlet body by Eaton provides durable terminations for 1-1/2 in conduits used in industrial facilities. This design addresses installation challenges such as alignment, sealing, and field wear, helping technicians complete terminations faster with fewer rework cycles. It carries NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, giving you clear regulatory alignment without overengineering. The built-in rollers simplify assembly and reduce effort when mounting to panels and enclosures. With malleable iron construction and a compact LB shape, the LB150M delivers long-term reliability in harsh environments while keeping maintenance costs predictable for manufacturing operations and projects.
Product Information
Extended Description
LB150M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LB shape, Built-in rollers, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LB150M
UPC
782274755977
Product Length/Depth
8.12 in
Product Height
2.83 in
Product Width
2.6 in
Product Weight
3.31 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Trade size
1-1/2"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds LB150M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LB150M
Malleable iron construction provides rugged durability that stands up to vibration and impact in factory floors, reducing maintenance intervals and unexpected downtime. This Form 5 LB shape enables efficient conduit routing in compact equipment, improving installation density and lowering enclosure footprint costs. The 1-1/2 inch trade size aligns with common conduit runs, streamlining procurement and field splicing while ensuring consistent performance across panels and machines. Built-in rollers are a practical time-saver, accelerating alignment and installation and minimizing misalignment risks during panel assembly. The LB150M is part of the Condulet Form 5 family, offering proven compatibility with other Condulet components for scalable, modular wiring solutions. Its Ordinary/Non-Hazardous Location rating supports regulatory compliance without unnecessary over-specification, reducing total cost of ownership in manufacturing environments.
Get a Quick Quote for a Eaton LB150M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB150M?
Enquire Now
FAQs
LB150M is designed to pair with Form 5 Condulet fittings. Align the built-in rollers with the enclosure opening, slide the outlet body into place, and secure it with the standard screws or mounting hardware. The 1-1/2 in trade size matches common conduits, and the malleable iron construction tolerates vibration and routine handling in industrial environments.
Key specs include Form 5 LB shape, 1-1/2 in trade size, malleable iron material, and dimensions of 8.12 in length, 2.83 in height, and 2.6 in width, with a weight around 3.31 lb. Built-in rollers speed installation, while NEC/CEC compliance ensures regulatory readiness for ordinary non-hazardous locations.
LB150M is rated for Ordinary/Non-Hazardous Locations, per area classification. It does not carry ratings for Class I or Class II hazardous environments. For hazardous locations, consider Form 5 bodies specified for more stringent safety requirements and consult the appropriate UL/CSA documentation.
Yes. The LB150M carries NEC/CEC standards designation, confirming compliance with national electrical codes. It supports safe, code-compliant conduit terminations for 1-1/2 in Form 5 installations in industrial panels and equipment.
The built-in rollers and robust malleable iron LB150M reduce installation time and rework, improving commissioning speed and reducing field errors. Its durability in ordinary locations minimizes maintenance costs, while NEC/CEC compliance reduces regulatory risk and downtime in factory environments, delivering measurable total cost of ownership benefits.
