Eaton LB200M Condulet Form 5 Outlet - NEC/CEC
Part Number: LB200M
Quick Summary
LB200M Condulet Form 5 conduit outlet body from Eaton delivers a rugged, ready-to-mount solution for protecting and routing conduits in industrial enclosures. In harsh plants, field assembly often stalls due to misalignment, corrosion risk, or fiddly hardware; this unit mitigates that with built-in rollers and a compact LB shape designed for straightforward installation. The design aligns with NEC/CEC requirements and is UL-listed for ordinary/non-hazardous locations, providing code-compliant reliability without compromising speed. Its malleable iron construction resists wear in tough environments, while the 2 in trade size supports common conduit runs. For procurement teams, LB200M offers predictable lead times and a documented form-factor that simplifies planning, installation, and long-term maintenance.
Product Information
Extended Description

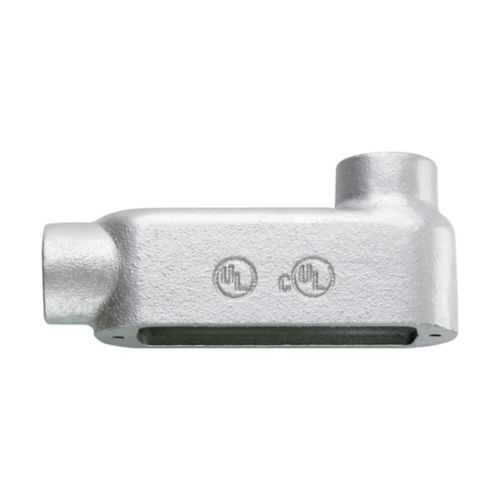

LB200M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LB shape, Built-in rollers, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LB200M
UPC
782274755984
Product Length/Depth
10.5 in
Product Height
4.42 in
Product Width
3.12 in
Product Weight
5.34 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Trade size
2"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds LB200M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LB200M
Feature: Form 5 LB shape supports standard conduit runs in a compact footprint. Business Impact: Enables consistent, code-compliant installations with fewer field modifications, reducing project risk and labor costs. Application: Ideal for panel doors, sectional enclosures, and equipment housings in manufacturing lines. Long-tail keywords: Form 5 conduit bodies, LB shape outlet, 2 inch trade size, conduit body installation. Feature: Malleable iron construction. Business Impact: Delivers superior impact resistance and durability in heavy industry environments, lowering replacement cycles and maintenance expenditures. Application: Suitable for on-site installations in mills, warehouses, and process plants. Long-tail keywords: malleable iron conduit bodies, rugged electrical fittings, industrial enclosure protection. Feature: Built-in rollers. Business Impact: Speeds up alignment and tightening, reducing field assembly time by minutes per fitting and improving installation accuracy. Application: Quick pulls through conduit runs during panel wiring and equipment installation. Long-tail keywords: built-in rollers conduit body, fast installation, reduced field rework. Feature: 2" trade size with Form 5 configuration. Business Impact: Supports common conduit sizes and routing complexity while maintaining a tight seal against environmental ingress. Application: Used in general-purpose plant wiring, machine installations, and switchgear assemblies. Long-tail keywords: 2 inch conduit body, Form 5 compatibility, standard trade size. Feature: Certifications and compliance. Business Impact: Ensures regulatory approval and safe operation in ordinary locations, streamlining approvals and procurement timelines. Application: Projects requiring NEC/CEC compliance and UL certification for Form 5 outlets. Long-tail keywords: NEC/CEC compliance, UL certification, ordinary locations.
Get a Quick Quote for a Eaton LB200M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB200M?
Enquire Now
FAQs
LB200M supports a 2 inch trade size with Form 5 conduit outlet configuration, designed for malleable iron bodies and built-in rollers to speed assembly. It fits standard Condulet fittings and allows secure mounting to enclosures or panels in industrial environments. The combination decreases field rework and accelerates project timelines while maintaining NEC/CEC compliance.
LB200M is specified for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, ensuring safe operation in general plant environments. It is UL-listed for Form 5 conduit bodies, providing reliable protection against mechanical impact and environmental exposure typical of manufacturing floors, with predictable performance across varying temperatures and humidity levels.
LB200M is intended for Ordinary/Non-Hazardous locations and is not specified as weatherproof or suitable for wet or outdoor environments. For outdoor use, pair it with a weather-protective enclosure or conduit system that provides appropriate IP rating and environmental sealing, while ensuring overall compliance with NEC/CEC requirements.
LB200M meets NEC/CEC standards and is UL-certified for Condulet Form 5 applications. The area classification is Ordinary/Non-Hazardous Locations, which supports code-compliant installations in general plant interiors. This combination helps with project approvals, supplier audits, and long-term reliability in non-hazardous settings.
The built-in rollers, 2 in trade size, and Form 5 LB configuration reduce field alignment time and minimize misfits, shortening installation durations and labor costs. Durable malleable iron resists wear in demanding environments, lowering replacement cycles and maintenance expenses while delivering consistent, long-term performance in standard manufacturing and processing facilities.
