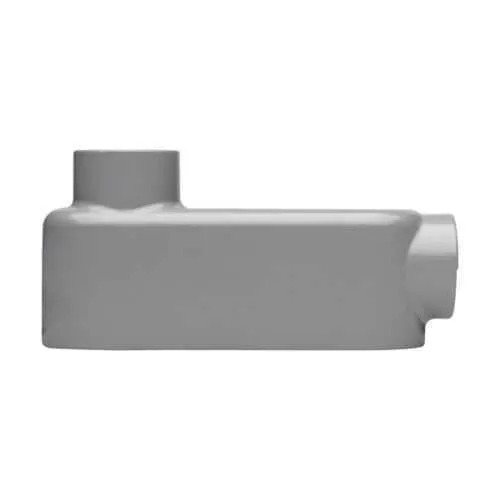

Eaton LB25 Conduit Outlet Body - Rigid/IMC, Copper-free Al
Part Number: LB25
Quick Summary
LB25 conduit outlet body from Eaton Crouse-Hinds Series 5 provides rugged, 3/4 inch rigid/IMC conduit termination for industrial enclosures. Engineers often struggle to find a durable, code-compliant outlet body that fits tight spaces and standard conduit sizes. This LB25 delivers lightweight, copper-free aluminum construction with NEC/CEC compliance and Canadian certification support. In practice, it reduces field rework and speeds installation, helping project teams meet schedules. The Series 5 design and ordinary/non-hazardous location rating support reliable performance in control panels and machinery, while lightweight material eases handling for installation crews. It also streamlines procurement and maintenance programs across larger builds, delivering clear business value.
Product Information
Extended Description
LB25 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LB shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LB25
UPC
784564140029
Product Length/Depth
4.97 in
Product Height
2.38 in
Product Width
1.53 in
Product Weight
0.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Conduit type
Rigid/IMC
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LB25
Copper-free aluminum construction reduces weight and improves corrosion resistance, lowering field handling effort and total installed cost. In practice, lighter LB25 units translate to faster installs and safer handling in tight spaces, while corrosion resistance extends service life in demanding environments. The material choice supports longer performance in ordinary/non-hazardous locations with consistent electrical performance. The LB-shaped form and 3/4 in trade size offer predictable interfaces with Condulet Series 5 components, simplifying wiring runs in crowded control panels and minimizing misalignment between conduits and outlet bodies. This geometry enables faster, repeatable installations across machines and lines. Rigid/IMC compatibility ensures a robust mechanical connection to the conduit system, while standardized mounting patterns and compatible accessories reduce procurement complexity and spare-parts inventory. Certification and code-compliance support reduces inspection risk and streamlines maintenance in industrial facilities. Overall, the LB25 enhances installation efficiency, procurement consistency, and long-term reliability across extended automation projects.
Get a Quick Quote for a Eaton LB25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB25?
Enquire Now
FAQs
LB25 is designed for 3/4 inch trade size rigid and IMC conduits and is compatible with the Eaton Crouse-Hinds Series 5 Condulet family. It fits standard conduit runs, supports straightforward mounting, and maintains consistent enclosure interfaces. Pair it with other Series 5 LB components to ensure a seamless, code-compliant installation with minimal field modification.
LB25 supports NEC/CEC standards and Ordinary/Non-Hazardous location classifications, with Canadian certification support indicated in UL listings. This combination helps meet regulatory approvals, reduces inspection risk, and simplifies cross-border projects. Always verify local code requirements, but LB25's certifications align with common electrical safety practices.
Copper-free aluminum reduces weight and improves corrosion resistance, lowering shipping and labor costs while increasing durability in exposed environments. This material choice enables easier handling during installation, extends service life in ordinary locations, and maintains reliable electrical performance over time, particularly in panel and machinery interfaces where frequent maintenance occurs.
LB25 dimensions are 4.97 inches in length, 2.38 inches in height, and 1.53 inches in width, with an approximate weight of 0.48 pounds. Knowing these values helps in panel layout, door clearance, and space optimization within control cabinets. The compact, lightweight design supports easier handling during installation and reduces overall installed weight in multi-assembly projects.
LB25 belongs to the Series 5 Condulet family, offering standardized mounting patterns and a predictable interface with Series 5 accessories. This standardization reduces SKU proliferation, streamlines stocking, and enables faster replacements. Its code-compliant construction and cross-border certifications further simplify procurement, audits, and ongoing maintenance across large automation deployments.
