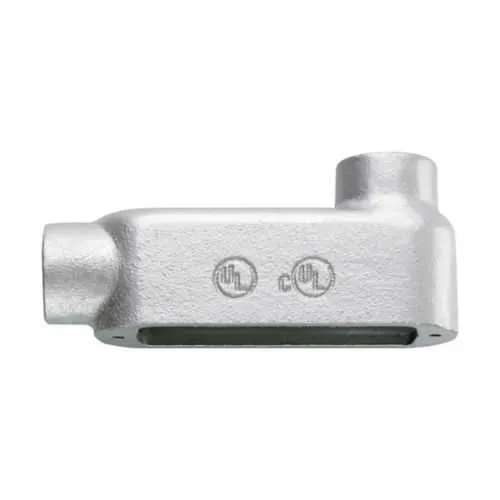

Eaton LB250M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LB250M
Quick Summary
Eaton LB250M Condulet Form 5 conduit outlet body is a rugged solution for routing and terminating conduit in industrial electrical installations. This unit addresses common panel and junction box alignment challenges by providing built-in rollers that simplify mating and reduce install time in tight spaces. It carries NEC/CEC compliance and UL certifications for safety in ordinary/non-hazardous locations, giving engineers confidence during design reviews. The malleable iron body offers durable protection against impact and wear in demanding environments, while the LB shape supports versatile conduit layouts. Using this form factor helps standardize fittings across projects and lowers inventory complexity, with reliable performance in wiring and connectivity applications.
Product Information
Extended Description
LB250M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LB shape, Built-in rollers, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LB250M
UPC
782274755991
Product Length/Depth
13.6 in
Product Height
5.4 in
Product Width
4.31 in
Product Weight
11.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Trade size
2-1/2"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds LB250M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LB250M
Feature: Built-in rollers. Business Impact: Simplifies alignment, reduces installation time, and minimizes misalignment risk during conduit assembly. Application: Ideal for panel fabrication and field installs where space is limited and speed matters. Long-tail keywords integrated: Form 5 conduit body rollers, Condulet LB built-in rollers, LB250M installation efficiency. Feature: Malleable iron construction. Business Impact: Delivers rugged durability and impact resistance in harsh industrial environments, lowering maintenance costs over the lifecycle. Application: Suitable for high-traffic plant floors and outdoor-rated enclosures with standard NEC/CEC compliance. Long-tail keywords integrated: malleable iron conduit body, durable conduit fittings, rugged electrical enclosure components. Feature: LB shape with 2-1/2 inch trade size. Business Impact: Enables flexible routing in tight spaces and standardizes conduit sizing across multiple circuits. Application: Common in process automation and machine controls. Long-tail keywords integrated: LB Form 5, 2-1/2 inch conduit size, Form 5 LB layout. Feature: Certifications and compliance. Business Impact: Ensures regulatory alignment, simplifying inspections and procurement for compliant projects. Application: Ordinary/Non-Hazardous Locations per NEC/CEC. Long-tail keywords integrated: NEC/CEC compliant conduit bodies, UL certification for form 5, non-hazardous area suitability. Feature: Comprehensive dimensions and weight. Business Impact: Predictable fitment for enclosure design and panel space planning, reducing rework and returns. Application: Industrial wiring and connectivity installations with fixed mounting footprints. Long-tail keywords integrated: Form 5 dimensions, 13.6 in length, 11.05 lb weight, 4.31 in width, 5.4 in height.
Get a Quick Quote for a Eaton LB250M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB250M?
Enquire Now
FAQs
Yes. LB250M is designed for Form 5 conduit configurations with a 2-1/2 in trade size. It uses a malleable iron construction and includes built-in rollers to simplify alignment during panel and junction-box installations, reducing assembly time and potential misalignment in tight spaces.
LB250M is made from malleable iron for rugged durability. It measures 13.6 in in length, 5.4 in in height, and 4.31 in in width, weighs 11.05 lb, and features built-in rollers. It supports a 2-1/2 in trade size and is suitable for ordinary/non-hazardous locations, aligning with NEC/CEC standards.
LB250M is specified for Ordinary/Non-Hazardous Locations under NEC/CEC standards. While it is not rated for hazardous environments, its robust malleable iron construction and Form 5 configuration make it ideal for robust industrial wiring in typical manufacturing and automation facilities.
LB250M carries NEC/CEC compliance as a standard conduit body and has UL-certified documentation for safety in North American installations. These certifications support regulatory compliance, simplify approvals during audits, and align with typical industrial wiring practices.
The built-in rollers accelerate installation and reduce misalignment, decreasing labor time and rework. Its durable malleable iron construction withstands everyday industrial wear, lowering replacement frequency. Standardized Form 5 sizing helps consolidate parts, cut inventory variety, and improve maintenance planning for automation and wiring projects.
