Eaton LB300M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LB300M
Quick Summary
LB300M is an Eaton Crouse-Hinds Form 5 conduit outlet body that provides rugged, reliable conduit routing for 3" trade-size installations in industrial panels. In challenging environments, misalignment and slow assembly cut productivity; built-in rollers and a malleable iron body streamline installation and improve field performance. The unit adheres to NEC/CEC standards for ordinary locations and carries Canadian certifications verified through UL listings, supporting cross-border projects. These compliance and installation efficiencies translate into lower rework costs, faster panel builds, and safer wiring practices in control rooms and equipment. For reliability and scalability, LB300M aligns with Form 5 systems and 3-inch conduit networks, delivering tangible business value for electrical infrastructure projects.
Product Information
Extended Description

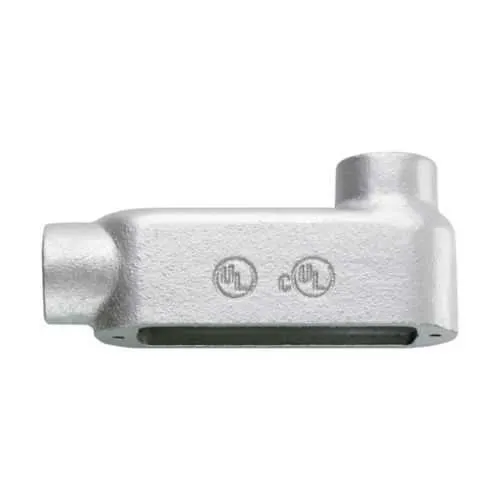

LB300M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LB shape, Built-in rollers, 3"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LB300M
UPC
782274756004
Product Length/Depth
13.87 in
Product Height
5.9 in
Product Width
4.31 in
Product Weight
11.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Trade size
3"
Material
Malleable iron
Special features
Built-in rollers
Eaton Crouse-Hinds LB300M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LB300M
Feature → Business Impact → Application: Malleable iron construction provides rugged durability that withstands industrial vibration and impact, reducing field repairs and downtime. This translates to lower maintenance costs and longer service life for control panels in manufacturing lines and processing facilities. Application: Ideal for harsh environments in machine centers and packaging lines where durable housings are essential. Feature → Business Impact → Application: Form 5 LB shape supports standard 3" conduit runs with dependable alignment, speeding up assembly and reducing field rework. Application: Suitable for motor control centers and switchgear enclosures that require reliable conduit routing. Feature → Business Impact → Application: Built-in rollers facilitate smooth installation and alignment in tight spaces, decreasing installation time and tool requirements. Application: Beneficial for installers working in crowded control cabinets or vertical wiring runs. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous Location classification reduce regulatory risk and simplify project approvals. Application: Required for general industrial installations in non-hazardous areas. Feature → Business Impact → Application: 3" trade-size capacity and precise dimensions (length 13.87 in, height 5.9 in, width 4.31 in) ensure compatibility with standard conduit assortments and existing fits. Application: Useful for retrofits and new builds in panel boards and enclosure assemblies. Feature → Business Impact → Application: Support for standard catalog and accessibility of specifications improve procurement efficiency and project planning. Application: Useful for engineering and procurement teams aligning with NEC/CEC-driven schedules and cross-border sourcing.
Get a Quick Quote for a Eaton LB300M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB300M?
Enquire Now
FAQs
Yes. LB300M is a Form 5 conduit outlet body designed for 3" trade-size conduit runs and Form 5 enclosure configurations. It features built-in rollers and malleable iron construction to simplify alignment, reduce installation time, and ensure secure, code-compliant connections in industrial panels.
LB300M uses malleable iron for durability and an LB-shaped form. It includes built-in rollers to ease installation, supports a 3" trade size, and measures 13.87 in long by 5.9 in high and 4.31 in wide, with a weight of 11.6 lb. These attributes enable robust, quick-install conduit routing in demanding environments.
LB300M is commonly used in industrial equipment installations such as motor control centers, switchgear enclosures, and control panels. Its Form 5 design and 3" trade size make it suitable for machinery wiring in ordinary-location facilities, where durable conduit routing and reliable enclosure connections are critical.
LB300M adheres to NEC/CEC standards for ordinary locations and carries associated certifications. It is also referenced in Canadian certification materials via UL listings, supporting cross-border compliance for projects that require formal regulatory validation and safe, code-compliant installations.
LB300M reduces installation time through its built-in rollers and precise Form 5 LB design, minimizing alignment fiddling and tool handling. The robust malleable iron construction lowers maintenance and replacement needs over the life of the installation, delivering lower total cost of ownership for panel builds and field wiring in industrial settings.
