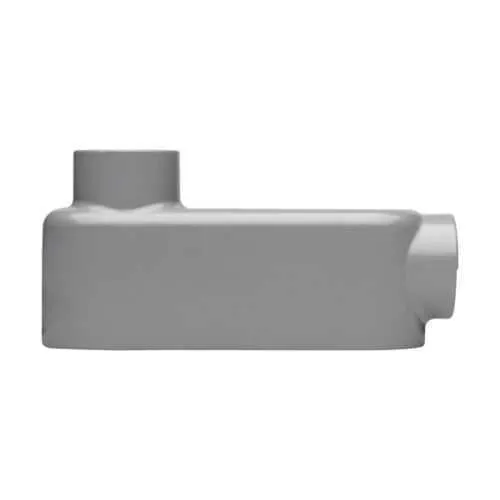

Eaton LB55 Conduit Outlet Body - Series 5, 1-1/2" Rigid/IMC
Part Number: LB55
Quick Summary
LB55 Conduit Outlet Body by Eaton provides rugged protection for electrical connections in rigid/IMC conduit systems. This design reduces field alignment challenges and minimizes misfeeds during installation, improving reliability in harsh environments. The product aligns with NEC/CEC standards and UL-listed for Canada, with ordinary/non-hazardous location classification that supports safe use in typical plant wiring. By combining Series 5 form with copper-free aluminum and straightforward mounting, it delivers lower lifecycle costs while enabling faster panel commissioning and easier field service.
Product Information
Extended Description
LB55 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LB shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LB55
UPC
784564140050
Product Length/Depth
7.81 in
Product Height
3.65 in
Product Width
2.49 in
Product Weight
1.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Conduit type
Rigid/IMC
Trade size
1-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LB55
Feature: 1-1/2 inch trade size LB-shaped conduit outlet body made from copper-free aluminum. Business Impact: Delivers corrosion resistance with reduced weight, lowering maintenance costs over the product life cycle. Application: Ideal for control panels and machine wiring in industrial environments where durability matters. Feature: Series 5 Condulet design with rigid/IMC compatibility. Business Impact: Enables swift mounting, standardized fittings, and fewer compatibility issues. Application: Suitable for high-volume assembly lines and retrofit projects seeking faster commissioning. Feature: Precise dimensions and compact footprint (7.81 in L, 3.65 in H, 2.49 in W; 1.6 lb). Business Impact: Optimizes enclosure space and eases panel layout while maintaining mechanical integrity. Application: Cabinet interiors and tight-area installations. Feature: Certifications and compliance (NEC/CEC; ordinary locations; UL Canada). Business Impact: Ensures regulatory conformity, reducing project risk and warranty exposure. Application: New builds and retrofits in North American facilities. Feature: Documentation availability (brochure, catalog page, spec sheet). Business Impact: Streamlines procurement and permits faster, informed decisions. Application: Engineering and purchasing workflows in automation projects.
Get a Quick Quote for a Eaton LB55
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB55?
Enquire Now
FAQs
LB55 is designed for a 1-1/2 inch trade size and uses a copper-free aluminum LB-shaped body compatible with Condulet Series 5. It supports standard rigid/IMC conduit fittings and uses conventional mounting entries, enabling straightforward panel integration and reliable electrical terminations in factory environments.
Key specs include LB55’s 1-1/2 inch trade size, copper-free aluminum material, LB shape, and overall dimensions of 7.81 in length, 3.65 in height, and 2.49 in width with a weight of 1.6 lb. It's designed for Rigid/IMC conduit in ordinary location settings under NEC/CEC standards.
LB55 is rated for Ordinary/Non-Hazardous Locations per its certification profile. It is not specified for hazardous environments; for outdoor or harsh exposure, select enclosures or additional protection rated for the specific location and follow NEC/CEC guidelines and UL listings for outdoor use.
LB55 adheres to NEC/CEC standards and carries UL Canada certification for use in non-hazardous locations. The UPC is 784564140050, and Eaton provides supporting literature including brochures, catalog pages, and a specification sheet to validate compliance during procurement.
Eaton offers a full set of references: Crouse-Hinds Series 5 brochure, Series 5 catalog page, UL Canada certification pages, and the LB55 specification sheet. These resources help with design validation, parts ordering, and installation planning to reduce project risk and shorten commissioning time.
