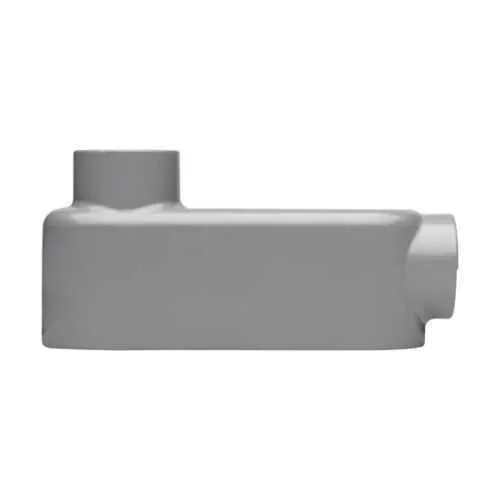

Eaton LB85 Condulet Series 5 conduit outlet body - NEC/CEC
Part Number: LB85
Quick Summary
LB85 conduit outlet body from Eaton provides a rugged, LB-shaped enclosure for rigid/IMC conduit in industrial electrical installations. Engineers often struggle with weight, corrosion, and space constraints that slow panel assembly and increase downtime. This Series 5 product aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, with UL-certification referenced in Eaton's literature. By combining copper-free aluminum construction with a compact footprint, it delivers faster installation, longer life in harsh environments, and reduced total cost of ownership for control panels and junction boxes. Secondary benefits include compatibility with standard rigid conduits and streamlined field maintenance, supporting safer, more reliable electrical installations across manufacturing facilities.
Product Information
Extended Description
LB85 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LB shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LB85
UPC
784564140081
Product Length/Depth
13.14 in
Product Height
6.41 in
Product Width
4.44 in
Product Weight
6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LB
Conduit type
Rigid/IMC
Trade size
3"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LB85
Feature: LB85 is a Condulet Series 5 conduit outlet body in an LB shape, designed for 3 inch trade size and copper-free aluminum construction. Business Impact: The copper-free material delivers corrosion resistance and reduced weight, enabling faster handling and longer service life in demanding environments. Application: Ideal for panel feeders and junctions in industrial automation where space is tight and non-corrosive locations are the norm. Feature: Compatible with rigid/IMC conduit. Business Impact: Simplifies procurement and installation by using common conduit types, reducing field adapters and rework. Application: Suitable for control panels and machine enclosures in factories with standard rigid/IMC networks. Feature: Precise dimensions and weight (13.14 in L, 6.41 in H, 4.44 in W, 6 lb). Business Impact: Predictable fit and easier handling during assembly, lowering install time and labor costs. Application: Useful in tight panel layouts and overhead conduit runs typical in packaging and fabrication lines. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Business Impact: Ensures code-compliant installations with clear regulatory alignment, reducing compliance risk. Application: Primary choice for non-hazardous industrial facilities seeking reliable code conformity. Feature: Documentation and data support (brochures, catalogs, datasheet). Business Impact: Accelerates procurement decisions and reduces verification time for spec conformance. Application: Fast-tracks spec reviews during design reviews and maintenance planning.
Get a Quick Quote for a Eaton LB85
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LB85?
Enquire Now
FAQs
LB85 is designed for rigid/IMC conduit with a 3 inch trade size. This combination delivers a robust, code-compliant outlet body suitable for standard industrial enclosures and panel connections. Its LB shape facilitates convenient routing in confined spaces while maintaining reliable weather and electrical performance in non-hazardous locations.
LB85 adheres to NEC/CEC standards for conduit outlet bodies and is suitable for Ordinary/Non-Hazardous Locations. This ensures code-compliant installation within typical manufacturing environments. For facilities with regulatory requirements beyond standard non-hazardous areas, verify project specs and consult Eaton documentation for any additional certifications.
LB85 is specified for Ordinary/Non-Hazardous Locations. It is not intended for hazardous or classified locations. For such environments, select a conduit outlet body designed and rated for hazardous area use to maintain compliance and safety.
Copper-free aluminum reduces weight and eliminates copper-related corrosion concerns, improving durability in damp or outdoor settings. This material choice speeds handling and installation in panel builds, decreases overall weight of enclosure assemblies, and supports long-term reliability in automation and manufacturing environments.
LB85 offers faster installation due to lightweight copper-free aluminum and compatible rigid/IMC conduit, which lowers labor costs. Its NEC/CEC compliance reduces rework and risk during audits, while its durable construction minimizes maintenance and replacements, delivering measurable TCO reductions over the life of the equipment.
