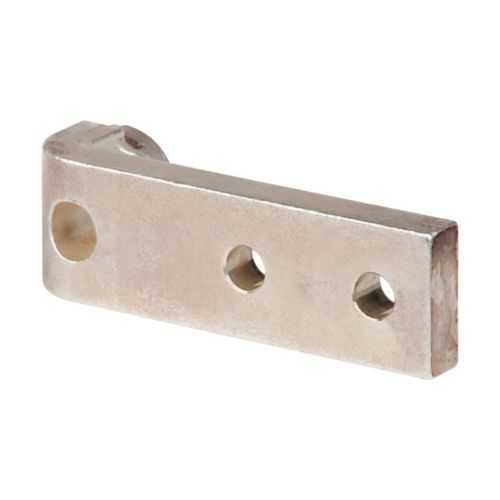

Eaton LBADPU316 NRX Rear Connect Adapter Kit - IEC Rated UL 489
Part Number: LBADPU316
Quick Summary
The Eaton LBADPU316 NRX Rear Connect Adapter Kit provides safe, high-capacity NRX rear connections for NF frame distribution. It helps reduce retrofit downtime and compatibility gaps when upgrading existing systems. Certified for IEC and UL 489, it supports reliable operation in regulated environments. With a three-pole design and an impressive 1600 A Iu rating, the kit scales for demanding industrial panels. Designed for efficient procurement and installation, it ships with hardware included and comes in a four-per-box configuration for streamlined stocking and现场 management.
Product Information
Extended Description
LBADPU316 Eaton: Eaton Power Defense ICCB adapter kit, NRX Rear Connect Adapter Kit, Long, Universal interrupt, Three-pole, Power Defense ICCB, NF Frame, 4 per box, Up to 1600A
Product Name
Eaton Series NRX adapter kit
Catalog Number
LBADPU316
UPC
786685954936
Product Length/Depth
3.25 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Warranty
One year factory warranty issued from date of shipment from repair center
Certifications
IEC Rated UL 489
Catalog Notes
Hardware included
Type
NRX Rear Connect Adapter Kit
Special features
Long
Frame
NF
Rated uninterrupted current (Iu)
1600 A
Accessories
Adapter kit
Interrupt rating
Universal
Series
Series NRX
Number of poles
Three-pole
Quantity
30
Feature NRX Rear Connect Adapter Kit enables high-current rear connections for NF frame Power Defense ICCB systems. Business Impact enables safer, more efficient wiring, reducing panel space and simplifying maintenance in retrofit projects. Application Ideal for industrial control panels and switchgear upgrades where high current, rear connections are required. The NRX design supports reliable, long-term operation in demanding environments. Feature IEC rated UL 489 compliance. Business Impact ensures regulatory alignment and risk reduction across critical installations. Application Suitable for three-pole configurations in NF frames, delivering consistent interrupt performance. Feature Up to 1600 A Iu rating. Business Impact supports scalable applications from moderate to high-demand distributions. Application Compatible with hardware included packing, four per box, streamlining stocking and expedites installation.
Get a Quick Quote for a Eaton LBADPU316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LBADPU316?
Enquire Now
FAQs
Begin by confirming NF frame compatibility and NRX rear-connect compatibility. Verify the kit includes hardware, align the adapter with the rear terminals, and secure with the supplied fasteners. Use appropriate torque per manufacturer guidelines, ensure proper clearance, and test continuity after installation to confirm a solid, high-current connection without overheating.
The LBADPU316 is designed as a three-pole NRX rear-connect adapter kit rated up to 1600 A Iu, matching NF frame needs for Power Defense ICCB installations. Its universal interrupt capability and robust construction enable safe, high-current links, while the four-per-box packaging supports efficient stocking and scalable deployments across multiple panels.
Yes. The LBADPU316 carries IEC-rated and UL 489 certifications, aligning with global electrical protection and circuit-control requirements. This certification ensures compliance for industrial panels, improves safety margins in high-energy environments, and simplifies regulatory approval for panel builds and retrofits.
Absolutely. The NRX Rear Connect Adapter Kit is designed for retrofit and new installations, offering a compatible interface with existing ICCB hardware. Its long-form NRX rear-connect compatibility, NF frame fit, and hardware-included packaging reduce installation time and field engineering, helping retrofit projects meet schedules and budgets.
The LBADPU316 includes a one-year factory warranty from shipment date, covering manufacturing defects under normal use. Eaton provides technical documentation, specification sheets, and access to service support to address installation queries, performance questions, and ongoing maintenance planning for high-current NRX adapters.
