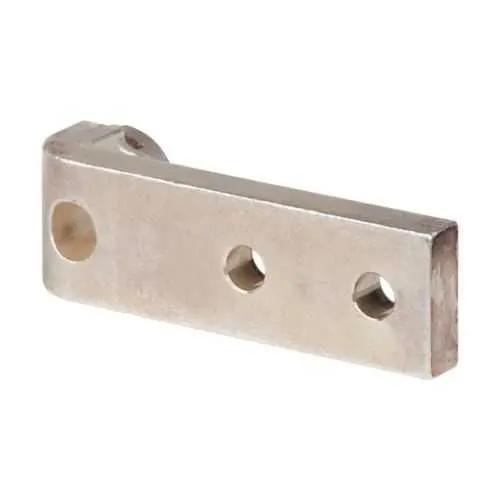

Eaton LBADPU416 NRX Rear Connect Adapter Kit - UL 489
Part Number: LBADPU416
Quick Summary
LBADPU416 is an Eaton NRX Rear Connect Adapter Kit for NF-frame power distribution and protection assemblies. This solution simplifies field upgrades and reduces installation lead times by providing a ready-to-mount adapter kit. Many projects struggle with compatibility when integrating NRX components into existing NF-frame panels, especially under tight timelines. The kit carries UL 489 IEC Rated certification for safe operation in demanding industrial environments and aligns with Power Defense ICCB configurations. By standardizing hardware and reducing custom engineering, this adapter kit enables faster commissioning, clearer spare-parts planning, and lower total cost of ownership for OEMs and end users alike.
Product Information
Extended Description
LBADPU416 Eaton: Eaton Power Defense ICCB adapter kit, NRX Rear Connect Adapter Kit, Long, Universal interrupt, Four-pole, Power Defense ICCB, NF Frame, 4 per box, Up to 1600A
Product Name
Eaton Series NRX adapter kit
Catalog Number
LBADPU416
UPC
786685954943
Product Length/Depth
3.25 in
Product Height
8 in
Product Width
6 in
Product Weight
5.5 lb
Warranty
One year factory warranty issued from date of shipment from repair center
Certifications
UL 489 IEC Rated
Catalog Notes
Hardware included
Type
NRX Rear Connect Adapter Kit
Special features
Long
Frame
NF
Rated uninterrupted current (Iu)
1600 A
Accessories
Adapter kit
Interrupt rating
Universal
Series
Series NRX
Number of poles
Four-pole
Quantity
32
Feature → Business Impact → Application: The LBADPU416 NRX Rear Connect Adapter Kit delivers a streamlined interface between NRX rear-connect devices and the NF frame, reducing wiring complexity and field assembly errors. This translates to faster install times, lower labor cost, and improved first-pass electrical integrity in critical protection schemes for industrial facilities. Application: Use in NF-frame-based Power Defense ICCB configurations to accelerate commissioning in data centers, manufacturing lines, and processing plants. Feature → Business Impact → Application: Four-pole construction and universal interrupt capability offer high current handling with flexible fault-clearing options, supporting up to 1600 A Iu. This ensures reliable protection and service continuity in large-capacity switchgear installations. Application: Suitable for high-demand power distribution nodes where robust interrupt performance is essential. Feature → Business Impact → Application: UL 489 IEC Rated certification provides regulatory alignment and safety assurance for compliance-driven projects. This reduces risk during audits and supports standardization across multi-site deployments. Application: Ideal for OEMs integrating NRX components into NF-frame panels. Feature → Business Impact → Application: Hardware included and catalog notes indicate a ready-to-install solution with minimal sourcing steps, lowering total cost of ownership. Application: Suitable for teams seeking predictable procurement and faster repairs in the field. Feature → Business Impact → Application: Long feature profile simplifies field documentation and maintenance planning, aiding technicians in troubleshooting and future upgrades. Application: Enhances serviceability and upgrade paths for mature NRX systems.
Get a Quick Quote for a Eaton LBADPU416
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LBADPU416?
Enquire Now
FAQs
The LBADPU416 is designed for straightforward field installation on NF-frame panels. Begin by aligning the NRX rear-connect adapter with the frame rails, secure with included hardware, and connect the four-pole interfaces as specified. The kit ships with hardware and catalog notes to streamline mounting, reducing setup time and minimizing wiring errors during commissioning.
LBADPU416 supports a rated uninterrupted current (Iu) of 1600 A, features a four-pole configuration, and offers a universal interrupt rating. It is designed for NRX rear-connect use within NF-frame Power Defense ICCB assemblies and carries UL 489 IEC Rated certification to meet industrial safety requirements.
Yes. LBADPU416 is UL 489 IEC Rated and compatible with Power Defense ICCB configurations. This certification confirms safe operation in industrial environments and helps meet regulatory compliance during audits and system design validations.
The adapter kit simplifies integration for NF-frame NRX assemblies, reducing field wiring complexity and enabling faster commissioning in high-current environments. Its four-pole design and universal interrupt capability provide flexible fault management, supporting reliable protection with minimal downtime and improved maintenance efficiency.
LBADPU416 includes a one-year factory warranty issued from the date of shipment from the repair center. Hardware is included, and Eaton support provides access to specification sheets, installation guidance, and spare-parts planning to sustain uptime and ROI in demanding industrial installations.
