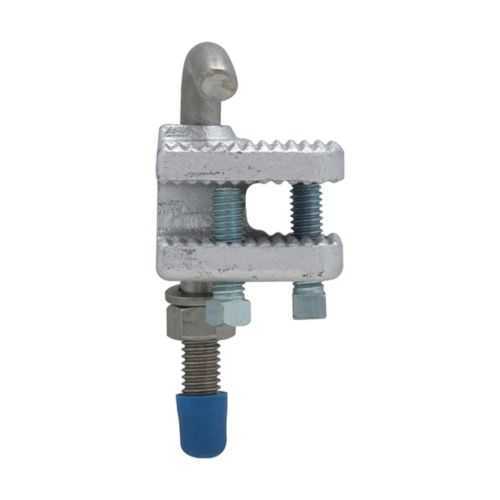

Eaton LCC1 Cable Tray Conduit Clamp - NEC/CEC Certified
Part Number: LCC1
Quick Summary
Eaton LCC1 cable tray conduit clamp securely supports outside rail trays in industrial power and process installations. This solution reduces mounting drift and corrosion concerns that frequently slow panel builds and maintenance cycles. It is designed for Ordinary/Non-Hazardous Locations and aligns with NEC/CEC standards, with Canadian certification options available for cross-border facilities. Cast iron construction provides rugged durability without sacrificing installation speed, and the clamp is specifically for use with outside rail trays. By standardizing on LCC1, procurement teams benefit from consistent sourcing, predictable lead times, and simplified compliance across sites, boosting overall project efficiency.
Product Information
Extended Description
LCC1 Eaton: Eaton Crouse-Hinds series LCC cable tray conduit clamp, Cast iron, 1/2", For use with outside rail tray
Product Name
Eaton Crouse-Hinds series LCC cable tray conduit clamp
Catalog Number
LCC1
UPC
782274128610
Product Length/Depth
1.69 in
Product Height
3.19 in
Product Width
1.69 in
Product Weight
7.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
For use with outside rail tray
Trade size
1/2"
Material
Cast iron
Crouse-Hinds series LCC Cable Tray Conduit Clamps catalog page
LCC Cable Tray Conduit Clamps Canadian certification
LCC Cable Tray Conduit Clamps Canadian certification
IF 596 - LCC Cable Tray Conduit Clamps
Eaton Specification Sheet - LCC1
Feature: Cast iron construction delivers rugged durability in ordinary locations. Business impact: Extends service life, reduces wear from vibration, and lowers replacement costs. Application: Best suited for outside rail tray systems in industrial facilities where frequent handling occurs. Feature: 1/2 inch trade size aligns with common tray specs. Business impact: Simplifies part selection, minimizes inventory, and speeds field assembly. Application: Works with standard outside rail trays to secure conduits in tight spaces. Feature: Weight of 7.1 lb provides stable mounting without excessive handling. Impact: Improves installation safety and reduces movement under dynamic loads, cutting rework. Application: Ideal for overhead and wall-mounted tray configurations in manufacturing plants. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Impact: Reduces regulatory risk and accelerates project sign-off across regions. Application: Applicable to North American installations needing code-aligned clamps. Feature: Documentation and compatibility with LCC catalog and IF 596 instructions. Impact: Speeds commissioning, improves installer confidence, and ensures correct parts usage. Application: Integrates with Eaton Crouse-Hinds lineup for a seamless installation workflow.
Get a Quick Quote for a Eaton LCC1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LCC1?
Enquire Now
FAQs
What mounting method works best for LCC1 when used with outside rail trays? Use standard outside rail tray mounting patterns and secure the cast iron clamp to the tray with compatible hardware, ensuring the 1/2 in trade size fits precisely. Verify alignment before final torque to minimize movement and vibration. This approach reduces rework and supports long-term reliability in busy industrial environments.
LCC1 is designed to meet NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. This simplifies code compliance across North American projects and supports cross-border installations where Canadian certification is also desirable. Using LCC1 helps ensure your cable tray system remains within code requirements while maintaining robust performance in typical manufacturing and processing facilities.
Yes, LCC1 is specified for a 1/2 inch trade size, matching common outside rail tray configurations. The clamp weighs 7.1 lb, offering a stable, vibration-resistant mount without overly burdensome handling during installation. This combination supports secure conduit routing in overhead or wall-mounted tray layouts.
A full catalog page for the Crouse-Hinds LCC Cable Tray Conduit Clamps is available, along with installation instructions IF 596 and a dedicated specification sheet. Access these resources to confirm mounting methods, dimensional fit, and compliance details, ensuring a smooth procurement and commissioning process.
LCC1 delivers improved reliability through rugged cast iron construction and a secure 1/2 inch connection suitable for ordinary locations. The standardized part reduces SKU proliferation, simplifies stocking, and speeds installation, which translates to lower labor costs, fewer field failures, and faster project sign-off across multiple sites.
